Ferrari Roma — [ENGINE] - B.31 - ELECTRIC STARTER MOTOR (diagram 0036)

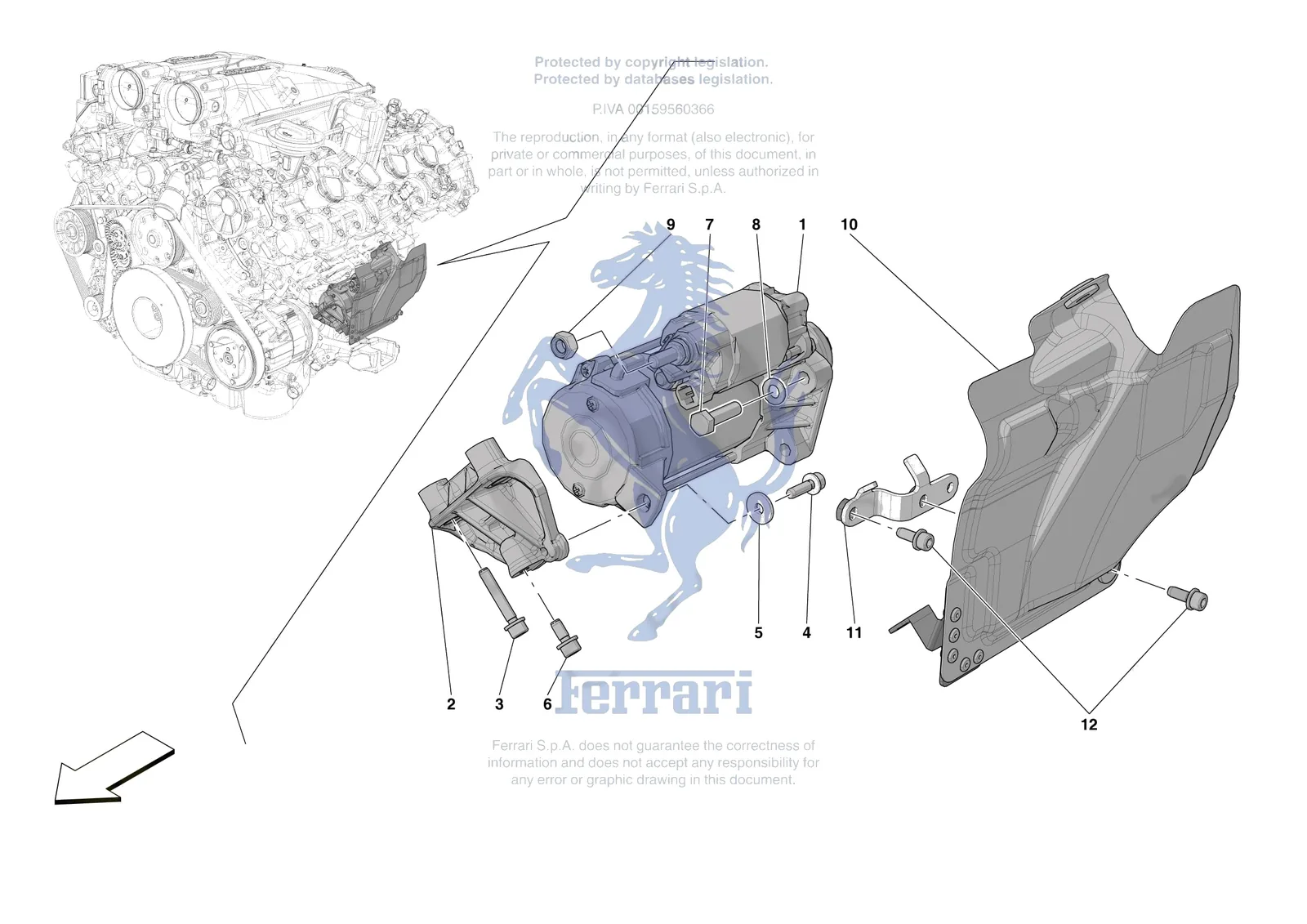

Exploded view of the [engine] - b.31 - electric starter motor on the Ferrari Roma, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ENGINE] - B.31 - ELECTRIC STARTER MOTOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0036.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 14137811 | Ferrari Nut - 14137811 | $3.03 | Special order, ships in 7-14 days | |
| 1 | 298875 | Ferrari Starter Motor - 298875 | $787.90 | Available, ships in 3-6 days |
| 2 | 300177 | Ferrari Rear Fastener Mount - 300177 | $189.56 | Special order, ships in 7-14 days |
| 3 | 231622 | Ferrari Screw M6 x 35 - 231622 | $0.65 | Available, ships in 3-6 days |
| 4 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 5 | 10523424 | Ferrari Washer D 6.15-18x2 - 10523424 | $0.92 | Available, ships in 3-6 days |
| 6 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 7 | 16043824 | Ferrari Bolt M8 x 30 - 16043824 | $0.86 | Available, ships in 3-6 days |
| 8 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 9 | 14076511 | Ferrari Nut - 14076511 | $1.67 | Special order, ships in 7-14 days |
| 10 | 861163 | Ferrari Paratia Anticalore Mot. Avv - 861163 | $179.73 | Special order, ships in 7-14 days |
| 11 | 329907 | Ferrari Shield Mounting Bracket - 329907 | $56.60 | Special order, ships in 7-14 days |
| 12 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
