Ferrari Roma — [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS (diagram 0053)

Exploded view of the [mechanical system] - d.5 - turbocharging system adjustments on the Ferrari Roma, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

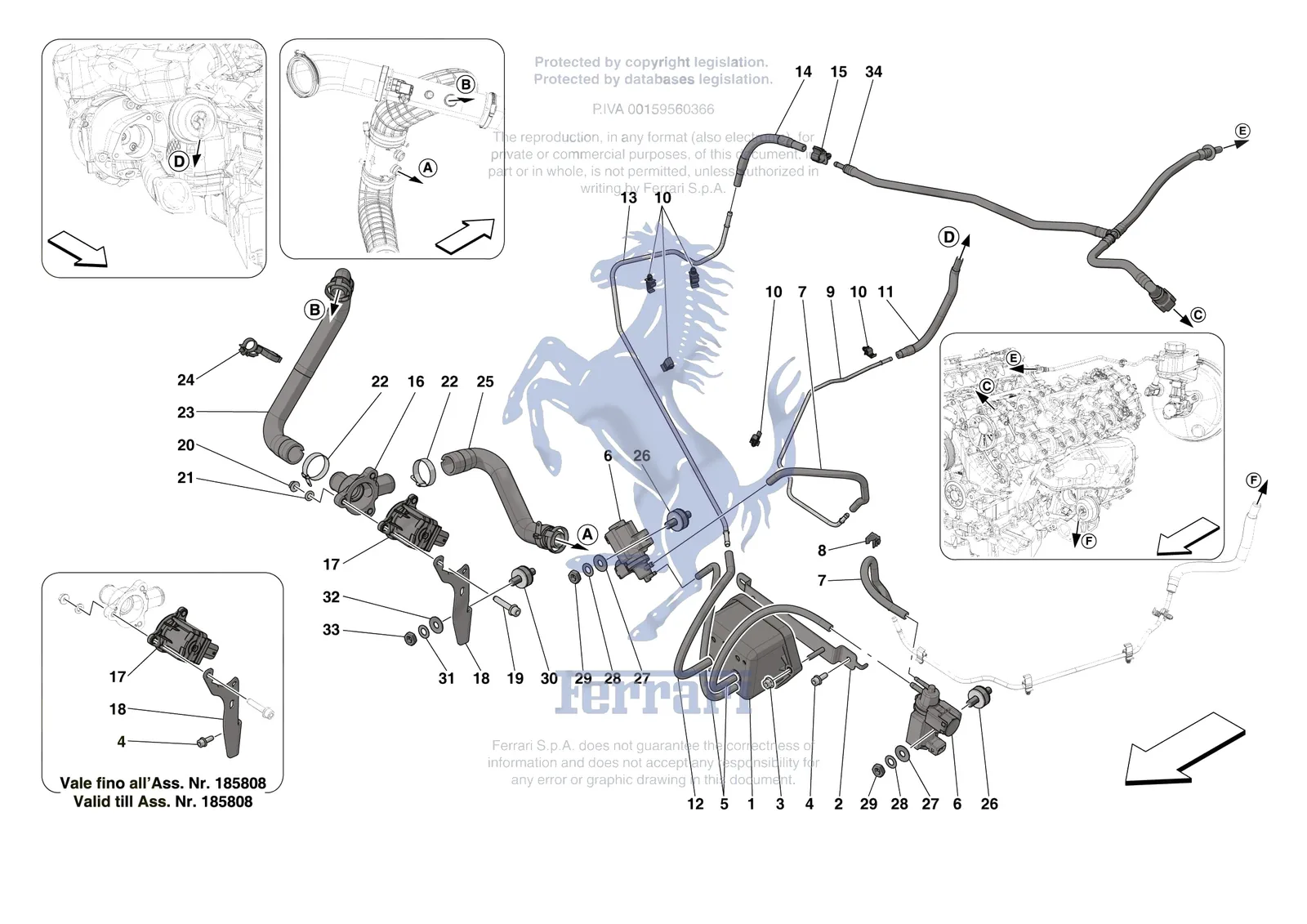

Ferrari Roma [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
330303Ferrari LH Dump Valve Bracket - 330303SupersededOrder 898606 instead
321334Ferrari Rubber Pipe D. 5-12x250 - 321334SupersededOrder 299144 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
1329914Ferrari Vacuum Accumulator Tank - 329914$78.76Special order, ships in 7-14 days
2341783Ferrari Tank Mounting Bracket - 341783$31.99Special order, ships in 7-14 days
314040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
4248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
5327726Ferrari Tubo Gomma D. 4-8.5X 265 - 327726$24.11Special order, ships in 7-14 days
6316062Ferrari Modulator Solenoid Valve - 316062$184.65Available, ships in 3-6 days
7299144Ferrari Rubber Pipe - 299144$27.06Special order, ships in 7-14 days
8140130Ferrari Clip - 140130$0.27Available, ships in 3-6 days
8794614Ferrari Clip Set - 794614SupersededOrder 140130 instead
9931306683Ferrari LH Regulator Pipe - 931306683$98.46Special order, ships in 7-14 days
9337573Ferrari RH Regulator Pipe - 337573$103.38Special order, ships in 7-14 days
10303873Ferrari Clip D.6 - 303873$3.47Available, ships in 3-6 days
11337840Ferrari Tubo Gomma D5-13 D4-12X25 - 337840$162.48Special order, ships in 7-14 days
12337985Ferrari Tubo Gomma D.5-10 X240 - 337985$27.06Special order, ships in 7-14 days
13770107Ferrari Tubo Rigido Reg.Sovr - 770107$59.07Special order, ships in 7-14 days
14303639Ferrari Pipe With Sheath Complete - 303639$41.82Special order, ships in 7-14 days
15262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
16982210Ferrari Dump Valve Base - 982210$96.01Available, ships in 3-6 days
17315495Ferrari Dump-Valve - 315495$295.03Available, ships in 3-6 days
18848235Ferrari LH Dump Valve Bracket - 848235$34.44Special order, ships in 7-14 days
18898606Ferrari LH Dump Valve Bracket - 898606$27.06Special order, ships in 7-14 days
18848220Ferrari RH Dump Valve Bracket - 848220$36.92Special order, ships in 7-14 days
18852575Ferrari RH Dump Valve Bracket - 852575$29.52Special order, ships in 7-14 days
19231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
2014040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
2114499324Ferrari Washer - 14499324SupersededOrder 12643724 instead
2112643724Ferrari/Maserati Washer - 12643724$0.20In stock
22262112Ferrari Collar - 262112SupersededOrder 262111 instead
23783295Ferrari Tubo Da Alta Press. A Dump V - 783295$115.69Special order, ships in 7-14 days
23783296Ferrari Tubo Da Alta Press. A Dump V - 783296$125.54Special order, ships in 7-14 days
24306692Ferrari Clip Set - 306692$1.11Special order, ships in 7-14 days
25330307Ferrari Tub.Da Dump Valve A Tubazion - 330307$91.08Special order, ships in 7-14 days
25746321Ferrari Tub.Da Dump Valve A Tubazion - 746321$93.53Special order, ships in 7-14 days
26225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
26331701Ferrari Cylindrical Bushing With Scr - 331701$31.99Special order, ships in 7-14 days
2712644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
2812601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
2910725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
34992752Ferrari Single Vacuum Pump Connector - 992752$320.06Special order, ships in 7-14 days
34341616Ferrari Tubo Colleg.Monodepressore - 341616$295.43Special order, ships in 7-14 days
