Ferrari Roma — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

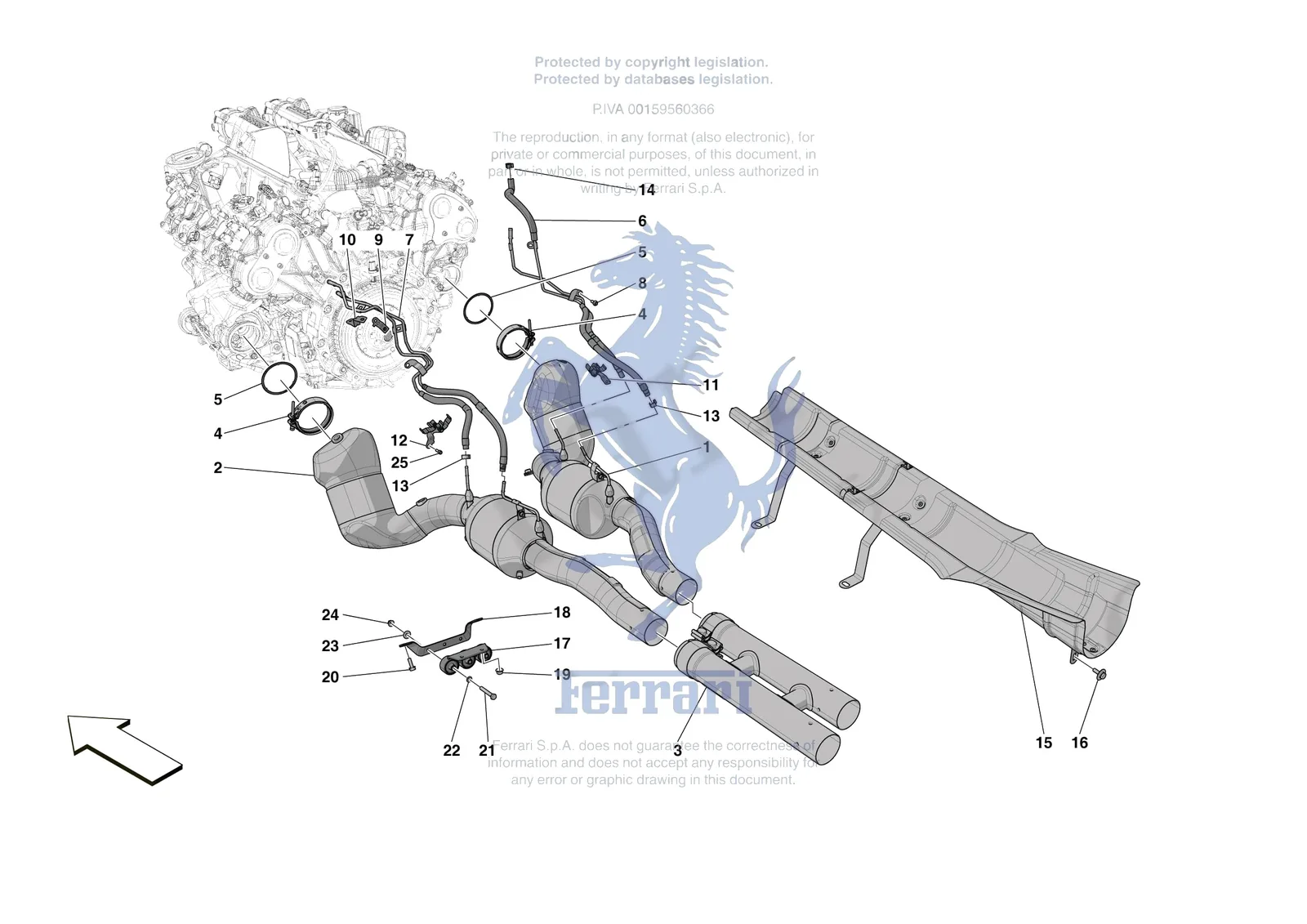

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari Roma, with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0056.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 11617624 | Ferrari Screw - 11617624 | Superseded | Order 16287224 instead | |
| 80415900 | Ferrari Screw - 80415900 | $32.60 | Available, ships in 3-6 days | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 1 | 901038 | Ferrari Cat Con Gpf Cpl Dx - 901038 | $27,587.49 | Contact us to order |
| 2 | 901040 | Ferrari Cat Con Gpf Cpl Sx - 901040 | $27,587.49 | Contact us to order |
| 3 | 901042 | Ferrari Prolunga Centrale Cpl - 901042 | $634.68 | Special order, ships in 7-14 days |
| 4 | 287210 | Ferrari V-Clamp For Fastening Catalytic Converter To Turbo - 287210 | $83.15 | Available, ships in 3-6 days |
| 5 | 283172 | Ferrari Gasket - 283172 | $37.18 | Special order, ships in 7-14 days |
| 6 | 912285 | Ferrari Tubo Gpf Dx Cpl - 912285 | $640.17 | Special order, ships in 7-14 days |
| 7 | 916313 | Ferrari Tubo Sensore Gpf Sx Cpl - 916313 | $664.78 | Special order, ships in 7-14 days |
| 8 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 9 | 339470 | Ferrari LH Bracket - 339470 | $34.44 | Special order, ships in 7-14 days |
| 10 | 807900 | Ferrari LH Head Cover Bracket - 807900 | $36.92 | Special order, ships in 7-14 days |
| 11 | 339466 | Ferrari Complete RH Housing Bracket - 339466 | $41.82 | Special order, ships in 7-14 days |
| 12 | 339467 | Ferrari Complete LH Housing Bracket - 339467 | $41.82 | Special order, ships in 7-14 days |
| 13 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 14 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 15 | 882684 | Ferrari Transmission Shaft Heat Shield - 882684 | $492.43 | Special order, ships in 7-14 days |
| 16 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 17 | 334913 | Ferrari Compl. Catalytic Converter Mounting Bracket - 334913 | $369.30 | Special order, ships in 7-14 days |
| 18 | 765427 | Ferrari Catalytic Converter Mounting Bracket - 765427 | $86.15 | Special order, ships in 7-14 days |
| 19 | 14040711 | Ferrari Nut M8 - 14040711 | $0.79 | Available, ships in 3-6 days |
| 20 | 16287224 | Ferrari Screw M8x25 - 16287224 | $0.82 | Available, ships in 3-6 days |
| 21 | 16044321 | Ferrari Screw M8 x 55 - 16044321 | $1.05 | Available, ships in 3-6 days |
| 22 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 23 | 11193974 | Ferrari Washer - 11193974 | $0.13 | Available, ships in 3-6 days |
| 24 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 25 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 25 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
