Ferrari SF90 Spider — [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM (diagram 0039)

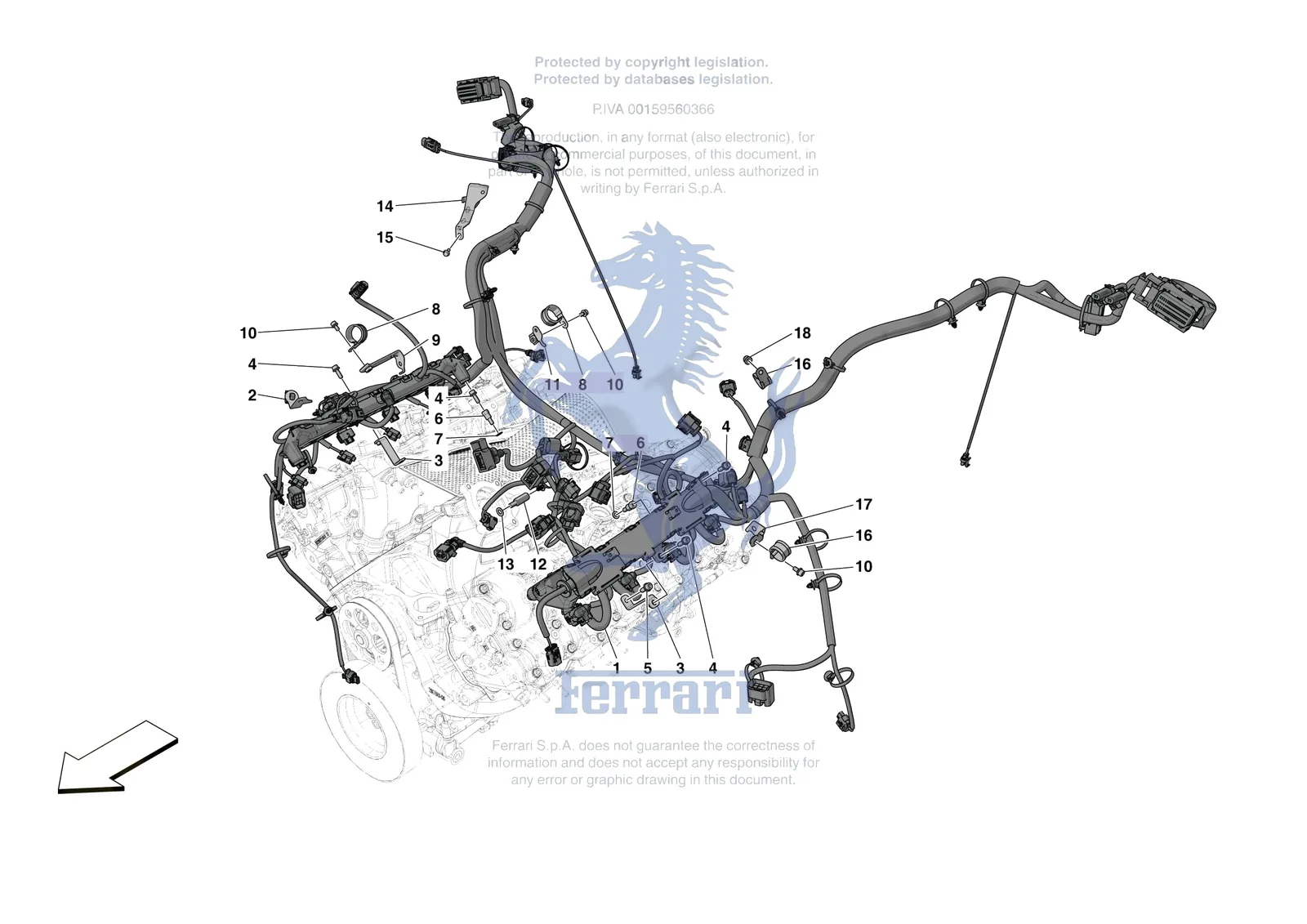

Exploded view of the [engine] - b.34 - engine electrical system on the Ferrari SF90 Spider, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0039.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 784328 | Ferrari Cavo Iniezione Europa F154Fa - 784328 | Superseded | Order 55022072 instead | |
| 963338 | Ferrari Cavo Iniezione Europa F154Fa - 963338 | Superseded | Order 55022072 instead | |
| 784329 | Ferrari Injection Cable USA F154Fa - 784329 | Superseded | Order 55022076 instead | |
| 291225 | Ferrari P clip Bracket With Sheath - 291225 | $7.86 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 260007 | Ferrari Stud Bolt 6X24 H45M6X10 H1 - 260007 | $15.39 | Special order, ships in 7-14 days | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 55022072 | Ferrari Cavo Iniezione Europa F154Fa - 55022072 | $5,423.98 | Special order, ships in 7-14 days |
| 1 | 746322 | Ferrari Cavo Iniezione Europa F154Fa - 746322 | Superseded | Order 55022072 instead |
| 1 | 840357 | Ferrari Cavo Iniezione Europa F154Fa - 840357 | Superseded | Order 55022072 instead |
| 1 | 874371 | Ferrari Cavo Iniezione Europa F154Fa - 874371 | Superseded | Order 55022072 instead |
| 1 | 55022076 | Ferrari Injection Cable USA F154Fa - 55022076 | $5,550.63 | Special order, ships in 7-14 days |
| 1 | 746325 | Ferrari Injection Cable USA F154Fa - 746325 | Superseded | Order 55022076 instead |
| 1 | 840358 | Ferrari Injection Cable USA F154Fa - 840358 | Superseded | Order 55022076 instead |
| 1 | 874377 | Ferrari Injection Cable USA F154Fa - 874377 | Superseded | Order 55022076 instead |
| 2 | 829510 | Ferrari Engine Loom Bracket Complete - 829510 | $21.64 | Special order, ships in 7-14 days |
| 3 | 808158 | Ferrari Channel Mounting Bracket - 808158 | $20.41 | Special order, ships in 7-14 days |
| 4 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 5 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 6 | 232777 | Ferrari Stud Bolt M6x1 H15.5 M6 - 232777 | $14.99 | Special order, ships in 7-14 days |
| 7 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 8 | 10442290 | Ferrari P Clip Bracket With Sheath - 10442290 | $1.42 | Special order, ships in 7-14 days |
| 9 | 921797 | Ferrari Injection Cable Fastener Bra - 921797 | $41.82 | Special order, ships in 7-14 days |
| 10 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 11 | 896455 | Ferrari Injection Cable Fastener Bra - 896455 | $34.44 | Special order, ships in 7-14 days |
| 12 | 336488 | Ferrari Stud Bolt - 336488 | $19.91 | Special order, ships in 7-14 days |
| 13 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 14 | 909445 | Ferrari Injection Cable Fastener Bra - 909445 | $76.30 | Special order, ships in 7-14 days |
| 15 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 15 | 16285124 | Ferrari Screw 5x16 - 16285124 | Superseded | Order 16286024 instead |
| 16 | 10441990 | Ferrari P Clip Bracket With Sheath - 10441990 | $1.42 | Available, ships in 3-6 days |
| 17 | 856921 | Ferrari Injection Cables Fastener Bracket - 856921 | $27.06 | Special order, ships in 7-14 days |
| 18 | 228265 | Ferrari Nut 6x1x9 - 228265 | $0.40 | Available, ships in 3-6 days |
