Ferrari SF90 Spider — [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES (diagram 0129)

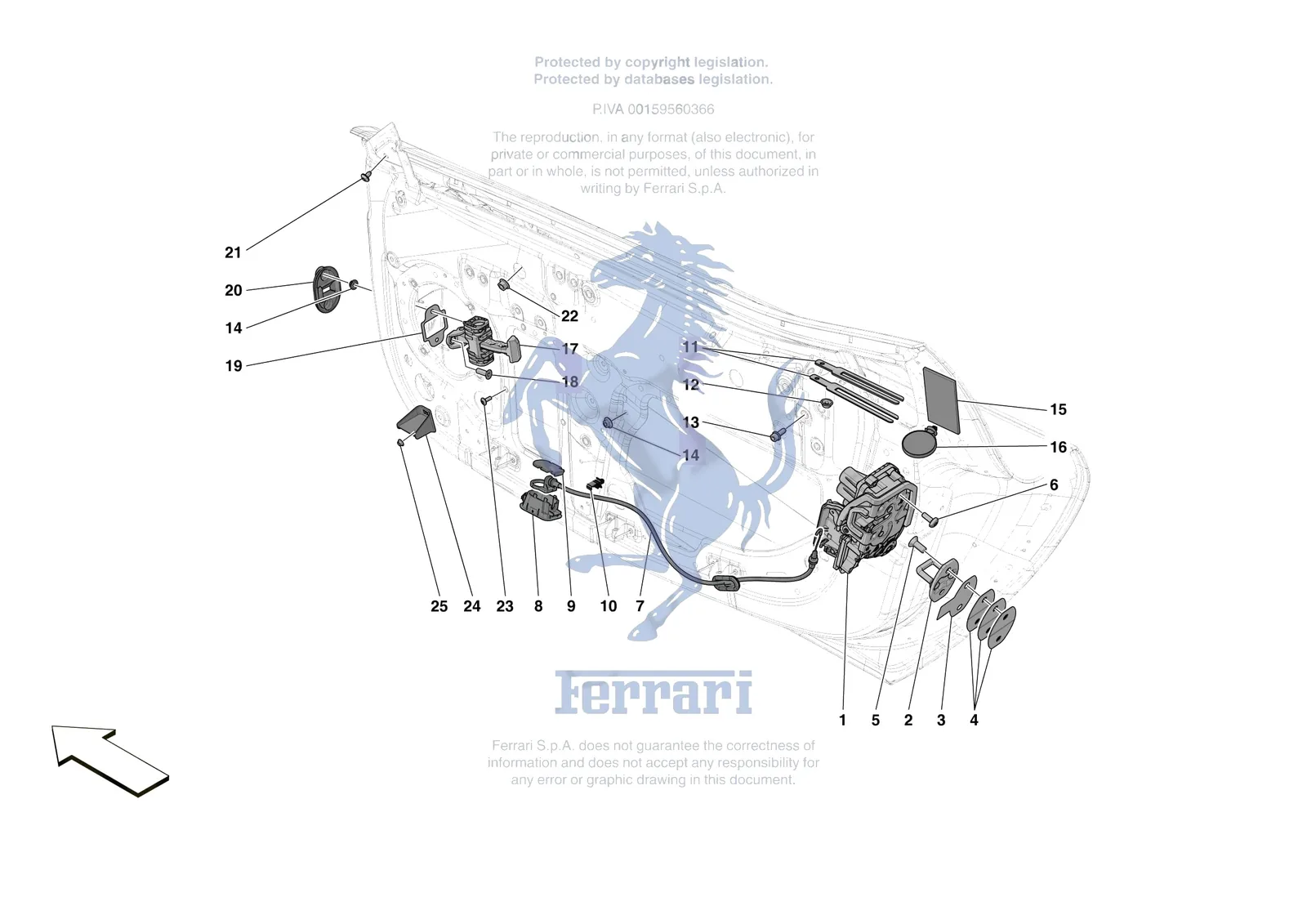

Exploded view of the [vehicle trim] - e.29.02 - doors - opening mechanisms and hinges on the Ferrari SF90 Spider, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0129.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 880201 | Ferrari Maniglia Back-Up Apertura Po - 880201 | Superseded | Order 831375 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 806665 | Ferrari LH Door Lock - 806665 | $984.88 | Special order, ships in 7-14 days |
| 1 | 879595 | Ferrari LH Door Lock - 879595 | $984.88 | Special order, ships in 7-14 days |
| 1 | 806668 | Ferrari RH Door Lock - 806668 | $984.88 | Special order, ships in 7-14 days |
| 1 | 879597 | Ferrari RH Door Lock - 879597 | $984.88 | Special order, ships in 7-14 days |
| 2 | 808736 | Ferrari Door Lock Striker Plate - 808736 | $29.48 | Special order, ships in 7-14 days |
| 3 | 924578 | Ferrari Pellicola Per Scontrino Port - 924578 | $14.39 | Special order, ships in 7-14 days |
| 4 | 802693 | Ferrari Door Striker Plate Shim - 802693 | $15.05 | Special order, ships in 7-14 days |
| 4 | 848279 | Ferrari Door Striker Plate Shim - 848279 | Superseded | Order 802693 instead |
| 5 | 85133400 | Ferrari Screw TSEI M8 x 20 - 85133400 | $1.30 | Available, ships in 3-6 days |
| 6 | 80874100 | Ferrari Screw Torx - 80874100 | $1.97 | Available, ships in 3-6 days |
| 7 | 55034986 | Ferrari Bowden Maniglia Interna Port - 55034986 | $226.49 | Special order, ships in 7-14 days |
| 7 | 892082 | Ferrari Bowden Maniglia Interna Port - 892082 | Superseded | Order 55034986 instead |
| 8 | 831375 | Ferrari Compl. Door Handle - 831375 | $19.40 | Special order, ships in 7-14 days |
| 9 | 880232 | Ferrari Upper Cover - 880232 | $12.99 | Special order, ships in 7-14 days |
| 10 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
| 11 | 819066 | Ferrari Spessore Maniglia Esterna Po - 819066 | $10.91 | Special order, ships in 7-14 days |
| 12 | 13046111 | Ferrari Nut 6x6 - 13046111 | $0.73 | Special order, ships in 7-14 days |
| 13 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 14 | 13832101 | Ferrari Flanged Nut M6 - 13832101 | $0.27 | Available, ships in 3-6 days |
| 15 | 179309 | Ferrari ADHESIVE FOAM - 179309 | $8.28 | Available, ships in 3-6 days |
| 16 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 17 | 825692 | Ferrari Door Arrestor/Check Strap - 825692 | $189.31 | Special order, ships in 7-14 days |
| 18 | 84872900 | Ferrari Screw - 84872900 | $0.82 | Available, ships in 3-6 days |
| 19 | 818448 | Ferrari Check Strap Reinforcement Br - 818448 | $21.64 | Special order, ships in 7-14 days |
| 20 | 83897000 | Ferrari Door Arrester Tie-Rod Seal - 83897000 | $24.32 | Special order, ships in 7-14 days |
| 21 | 46401657 | Ferrari Screw TBEI M6 x 12 Torx - 46401657 | $1.04 | Available, ships in 3-6 days |
| 22 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 23 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 24 | 898610 | Ferrari LH Lower Door Cover - 898610 | $29.52 | Special order, ships in 7-14 days |
| 24 | 910915 | Ferrari RH Lower Door Cover - 910915 | $29.52 | Special order, ships in 7-14 days |
| 25 | 13046014 | Ferrari Nut - 13046014 | $0.63 | Special order, ships in 7-14 days |
