Ferrari SF90 Stradale — [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS (diagram 0027)

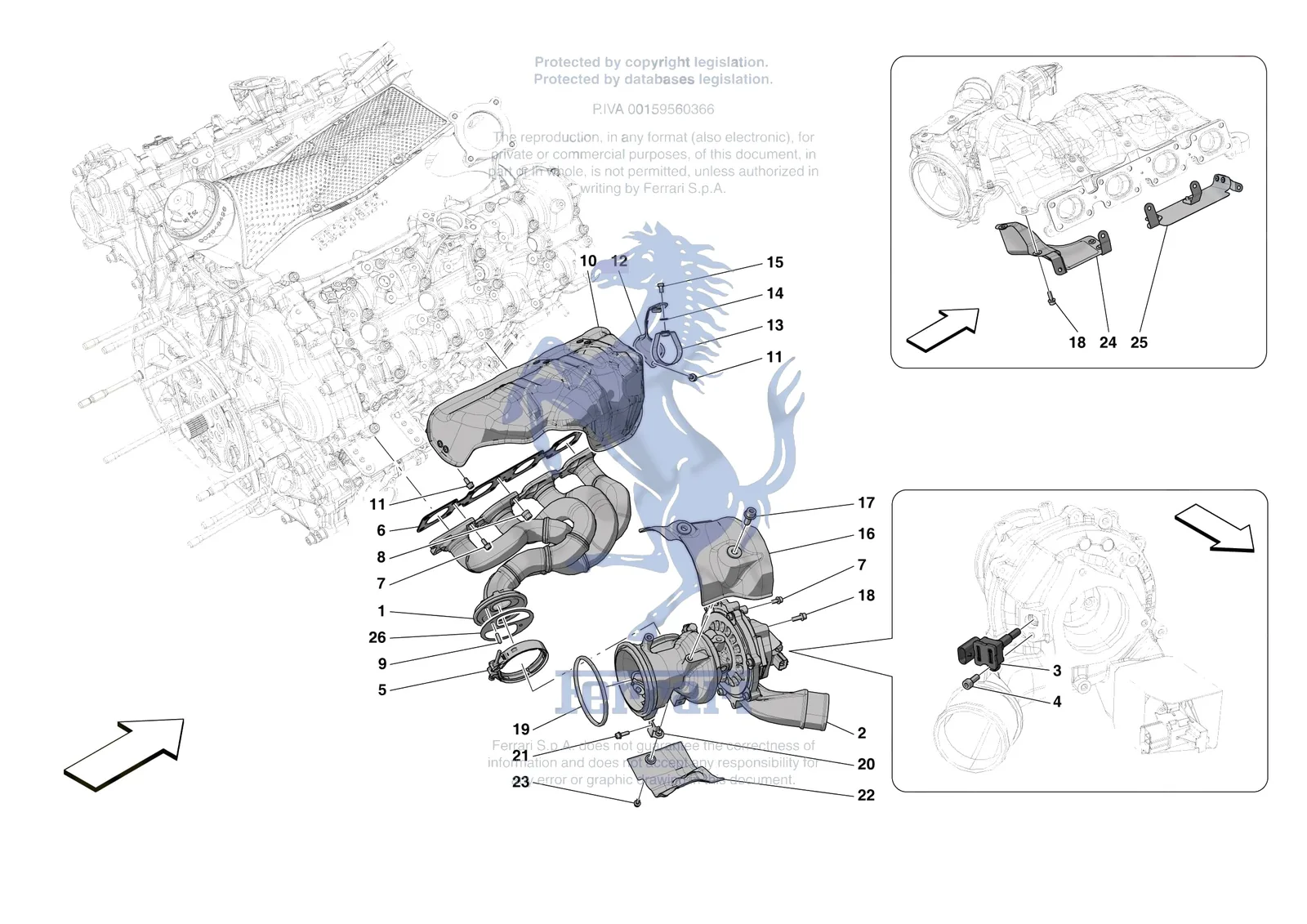

Exploded view of the [engine] - b.22 - forced induction system turbochargers and mounts on the Ferrari SF90 Stradale, with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0027.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 830416 | Ferrari Collettore Scarico Destro - 830416 | $10,092.91 | Contact us to order |
| 1 | 830417 | Ferrari Collettore Scarico Sinistro - 830417 | $9,705.98 | Special order, ships in 7-14 days |
| 2 | 804793 | Ferrari LH Turbocharger - 804793 | $19,225.19 | Contact us to order |
| 2 | 804794 | Ferrari Turbo Dx. Wg Saldata + Contr - 804794 | $19,603.22 | Contact us to order |
| 3 | 342239 | Ferrari Speed Sensor - 342239 | $437.10 | Special order, ships in 7-14 days |
| 4 | 14304124 | Ferrari Screw TCEI M5 x 12 - 14304124 | $0.31 | Special order, ships in 7-14 days |
| 5 | 313303 | Ferrari Turbo-Manifold Fastener V-Clamp - 313303 | Superseded | Order 287210 instead |
| 5 | 287210 | Ferrari V-Clamp For Fastening Catalytic Converter To Turbo - 287210 | $83.15 | Available, ships in 3-6 days |
| 6 | 340393 | Ferrari Guarnizione Per Collett.Scar - 340393 | $87.51 | Special order, ships in 7-14 days |
| 7 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 7 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 8 | 307964 | Ferrari Exhaust Manifold Nut - 307964 | $4.48 | In stock |
| 9 | 10334880 | Ferrari Perno Senza Testa - 10334880 | $3.26 | Special order, ships in 7-14 days |
| 10 | 868005 | Ferrari Paratia Calore Collettore Sc - 868005 | $664.78 | Special order, ships in 7-14 days |
| 10 | 927845 | Ferrari Paratia Calore Collettore Sc - 927845 | $714.03 | Special order, ships in 7-14 days |
| 11 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 12 | 964892 | Ferrari Paratia Condotto Bobine - 964892 | $194.48 | Special order, ships in 7-14 days |
| 13 | 981398 | Ferrari Coiled Pipe Retainer Ring - 981398 | $132.94 | Special order, ships in 7-14 days |
| 14 | 13550224 | Ferrari Washer D 6.15-13x1 - 13550224 | $2.59 | Available, ships in 3-6 days |
| 15 | 13026774 | Ferrari Screw 6x10 - 13026774 | $2.07 | Available, ships in 3-6 days |
| 16 | 919130 | Ferrari Riparo Calore Turbina Dx - 919130 | $100.93 | Special order, ships in 7-14 days |
| 17 | 248471 | Ferrari Screw 8x20 - 248471 | $2.07 | Available, ships in 3-6 days |
| 18 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 19 | 275465 | Ferrari Gasket - 275465 | $103.25 | Available, ships in 3-6 days |
| 20 | 837926 | Ferrari Heat Shield Bracket - Turbo - 837926 | $27.06 | Special order, ships in 7-14 days |
| 21 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 22 | 919131 | Ferrari Riparo Calore Turbina Sx - 919131 | $147.72 | Special order, ships in 7-14 days |
| 23 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 24 | 883307 | Ferrari Paratia Compressore Ac - 883307 | $164.95 | Special order, ships in 7-14 days |
| 25 | 917942 | Ferrari Paratia Calore Sotto Collett - 917942 | $169.87 | Special order, ships in 7-14 days |
| 25 | 978585 | Ferrari Paratia Calore Sotto Collett - 978585 | $177.25 | Special order, ships in 7-14 days |
| 25 | 987057 | Ferrari Paratia Calore Sotto Collett - 987057 | $177.25 | Special order, ships in 7-14 days |
| 26 | 954481 | Ferrari Turbo Manifold Gasket - 954481 | $203.51 | Special order, ships in 7-14 days |
