Ferrari SF90 Stradale — [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES (diagram 0044)

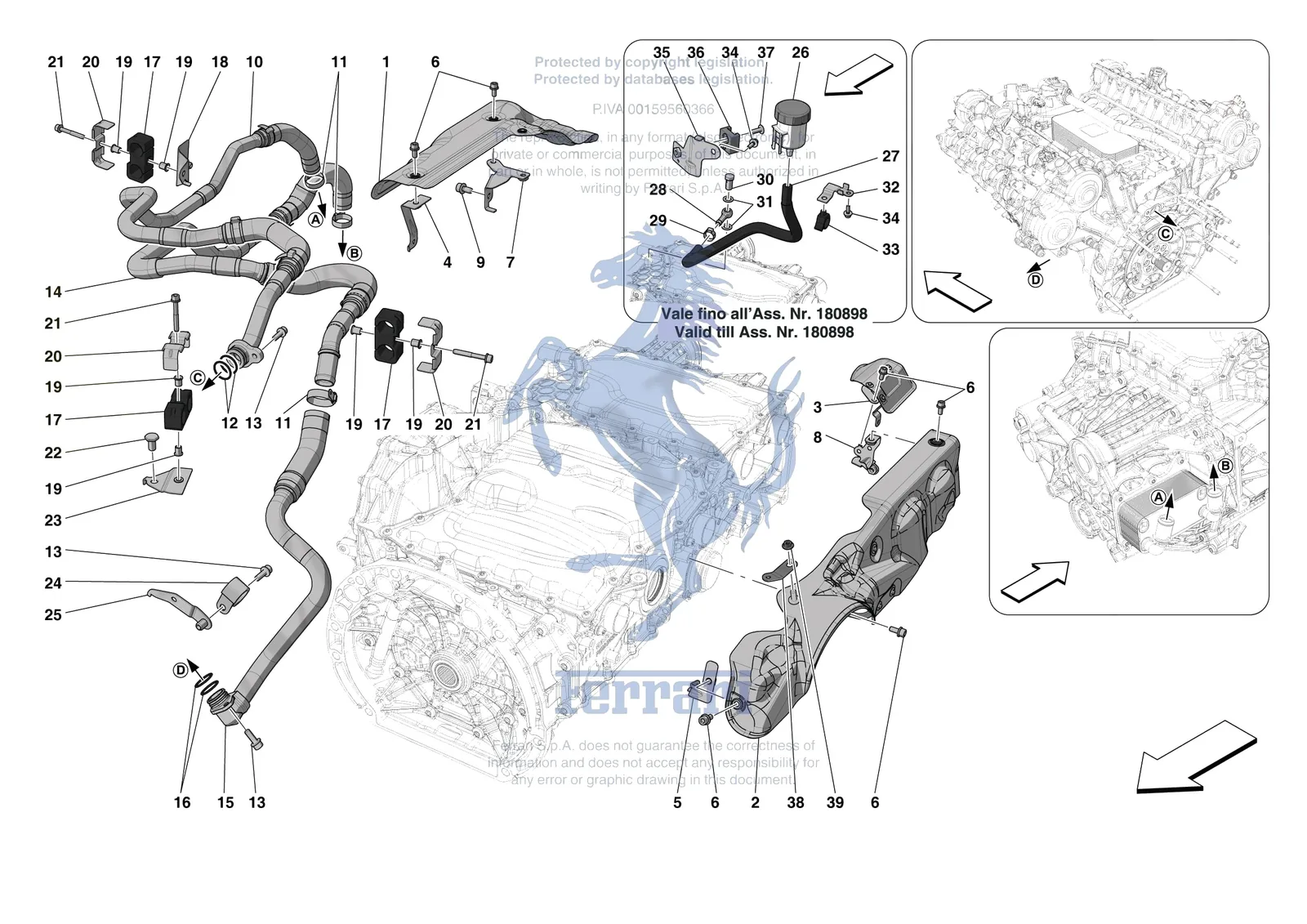

Exploded view of the [gearbox] - c.03.02 - gearbox oil heat exchanger and pipes - heat exchanger and rear pipes on the Ferrari SF90 Stradale, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Stradale [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
206536Ferrari Clip D.14 - 206536$0.92Special order, ships in 7-14 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
1904075Ferrari Riparo Semiasse Dx - 904075$155.10Special order, ships in 7-14 days
2962840Ferrari Drive Shaft Guard LH - 962840$243.74Special order, ships in 7-14 days
2811160Ferrari Riparo Semiasse Sx - 811160$320.06Special order, ships in 7-14 days
2974424Ferrari Riparo Semiasse Sx - 974424$320.06Special order, ships in 7-14 days
3906840Ferrari Riparo Solenoide P-Lock - 906840$147.51Special order, ships in 7-14 days
3921373Ferrari Riparo Solenoide P-Lock - 921373$130.47Special order, ships in 7-14 days
3945225Ferrari Solenoid Shield - 945225$145.03Special order, ships in 7-14 days
4815572Ferrari Front Bracket of RH Shield - 815572$39.37Special order, ships in 7-14 days
5811159Ferrari Front Bracket of LH Shield - 811159$49.22Special order, ships in 7-14 days
5815568Ferrari Front Bracket of LH Shield - 815568SupersededOrder 811159 instead
614305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
6231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
7812109Ferrari Rear Bracket Of RH Shield - 812109$46.75Special order, ships in 7-14 days
7921308Ferrari Rear Bracket Of RH Shield - 921308SupersededOrder 812109 instead
8768810Ferrari Rear Bracket Of LH Shield - 768810$71.28Special order, ships in 7-14 days
8921444Ferrari Rear Bracket Of LH Shield - 921444$64.00Special order, ships in 7-14 days
9231627Ferrari Screw M8 x 16 - 231627$1.25Available, ships in 3-6 days
10879352Ferrari Tubo Ritorno. Acqua Su Cambi - 879352$492.43Special order, ships in 7-14 days
11262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
12805287Ferrari Guarnizione Tipo Or D.21.95X - 805287$1.84Special order, ships in 7-14 days
13231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
14879351Ferrari Tubo Mand. Acqua Su Cambio - 879351SupersededOrder 951829 instead
14951829Ferrari Tubo Mand. Acqua Su Cambio - 951829$911.01Special order, ships in 7-14 days
1555043450Ferrari Tubo Mand. Acqua Su Basam.Mo - 55043450$270.83Special order, ships in 7-14 days
15879177Ferrari Tubo Mand. Acqua Su Basam.Mo - 879177Price on requestContact us for price and availability
15951828Ferrari Tubo Mand. Acqua Su Basam.Mo - 951828$270.83Special order, ships in 7-14 days
16803918Ferrari Gasket 1.78 x 20. - 803918$2.59Available, ships in 3-6 days
17329367Ferrari Gogna Gomma X Tubi 2 - 329367$13.24Special order, ships in 7-14 days
18871673Ferrari Bracket - 871673$36.92Special order, ships in 7-14 days
19329368Ferrari Retainer Block Bush Diam.23 - 329368$1.49Available, ships in 3-6 days
20329366Ferrari Retainer Block Plate - 329366$13.74Available, ships in 3-6 days
21231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
22803878Ferrari Hex Head Screw M10 Testa Rib. - 803878$12.00Special order, ships in 7-14 days
23803876Ferrari Support Bracket - Heat Exchanger Pipes Retainer - 803876$31.99Special order, ships in 7-14 days
2410441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
25879178Ferrari Bracket - 879178$36.92Special order, ships in 7-14 days
26301881Ferrari DCT Expansion Tank - 301881$49.28Special order, ships in 7-14 days
27335820Ferrari Dct Vent Pipe - 335820$492.43Special order, ships in 7-14 days
28301884Ferrari Swivel Connector - 301884$295.03Special order, ships in 7-14 days
2913434670Ferrari Screw Collar D16.2mm - 13434670$1.44Available, ships in 3-6 days
3011903811Ferrari Banjo Bolt M10 x 1.25 - 11903811$8.05Special order, ships in 7-14 days
3110284460Ferrari Washer - 10284460$0.31Available, ships in 3-6 days
32967770Ferrari BRACKET - 967770Price on requestContact us for price and availability
33198253Ferrari Clip - 198253$7.40Special order, ships in 7-14 days
34256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
35978748Ferrari TANK FASTENER BRACKET - 978748Price on requestContact us for price and availability
36301886Ferrari Tank Breather Mount - 301886$172.10Special order, ships in 7-14 days
3785629300Ferrari Screw M6 x 20 - 85629300$1.17Available, ships in 3-6 days
38973577Ferrari Centre AXLe Shaft Shield Bra - 973577$14.01Special order, ships in 7-14 days
3913046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days

All SF90 Stradale diagrams
