Ferrari SF90 Stradale — [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK (diagram 0058)

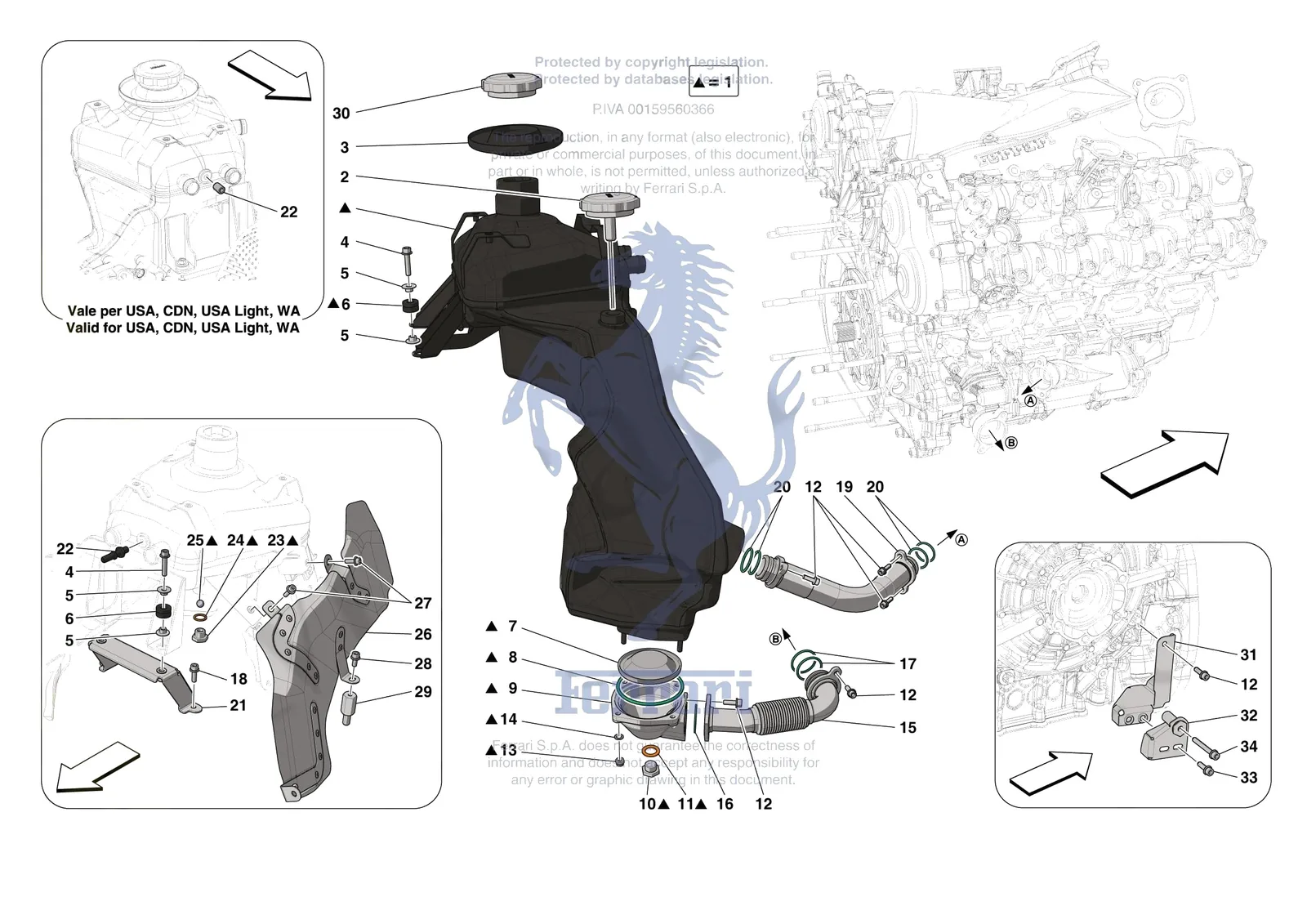

Exploded view of the [mechanical system] - d.09 - engine oil radiator and tank on the Ferrari SF90 Stradale, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Stradale [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
10257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
1748490Ferrari Compl. Oil Tank - 748490$6,716.09Special order, ships in 7-14 days
1770668Ferrari Compl. Oil Tank - 770668SupersededOrder 748490 instead
2763939Ferrari Cap Compl. With Dipstick - 763939$615.54Special order, ships in 7-14 days
2759795Ferrari Tappo Cpl Di Asta - 759795Price on requestContact us for price and availability
3294022Ferrari Ring For Engine Oil Tank - 294022$86.04Special order, ships in 7-14 days
4231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
5183898Ferrari Bush - 183898$5.44Special order, ships in 7-14 days
6953224Ferrari Grommet - 953224$10.70Special order, ships in 7-14 days
7100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
8125521Ferrari/Maserati Oil Tank O-Ring - 125521$13.20In stock
9255176Ferrari Oil Pick Up - 255176$246.20Special order, ships in 7-14 days
1010300711Ferrari Threaded Drain Plug - 10300711$4.59In stock
1110261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
12231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
13102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
1412601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
15927378Ferrari Tubo Mandata Olio Da Serb. - 927378$1,157.24Special order, ships in 7-14 days
16862084Ferrari Gasket - 862084$7.84Available, ships in 3-6 days
1714458481Ferrari O-Ring - 14458481$3.70Available, ships in 3-6 days
18231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
19781768Ferrari Tubo Recup Olio Da Motore - 781768$492.43Special order, ships in 7-14 days
20139934Ferrari Radiator Tank Pipe to Oil Tank O-Ring - 139934$2.15In stock
21805116Ferrari Support Bracket Oil Tank - 805116$100.93Special order, ships in 7-14 days
2214326101Ferrari Threaded Connector - 14326101$2.38Special order, ships in 7-14 days
22317584Ferrari Threaded Connector - 317584$41.82Special order, ships in 7-14 days
2310300611Ferrari Threaded Plug - 10300611$45.94Special order, ships in 7-14 days
2410261160Ferrari Washer - 10261160$3.26Available, ships in 3-6 days
25899527Ferrari Oil Ball Float - 899527$344.69Special order, ships in 7-14 days
26919275Ferrari Riparo Calore Cavi Hv - 919275$393.93Special order, ships in 7-14 days
27256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
28231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
28248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
29922569Ferrari Colonnetta M10X20 M - M6X14 - 922569$39.37Special order, ships in 7-14 days
30774856Ferrari Oil Tank Cap - 774856$393.93Special order, ships in 7-14 days
31984177Ferrari Lateral Tank Mounting Bracke - 984177$91.08Special order, ships in 7-14 days
32984175Ferrari Tank Adjustment Bracket - 984175$88.61Special order, ships in 7-14 days
34255494Ferrari Screw - 255494$18.76Available, ships in 3-6 days
