Ferrari SF90 Stradale — [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE (diagram 0067)

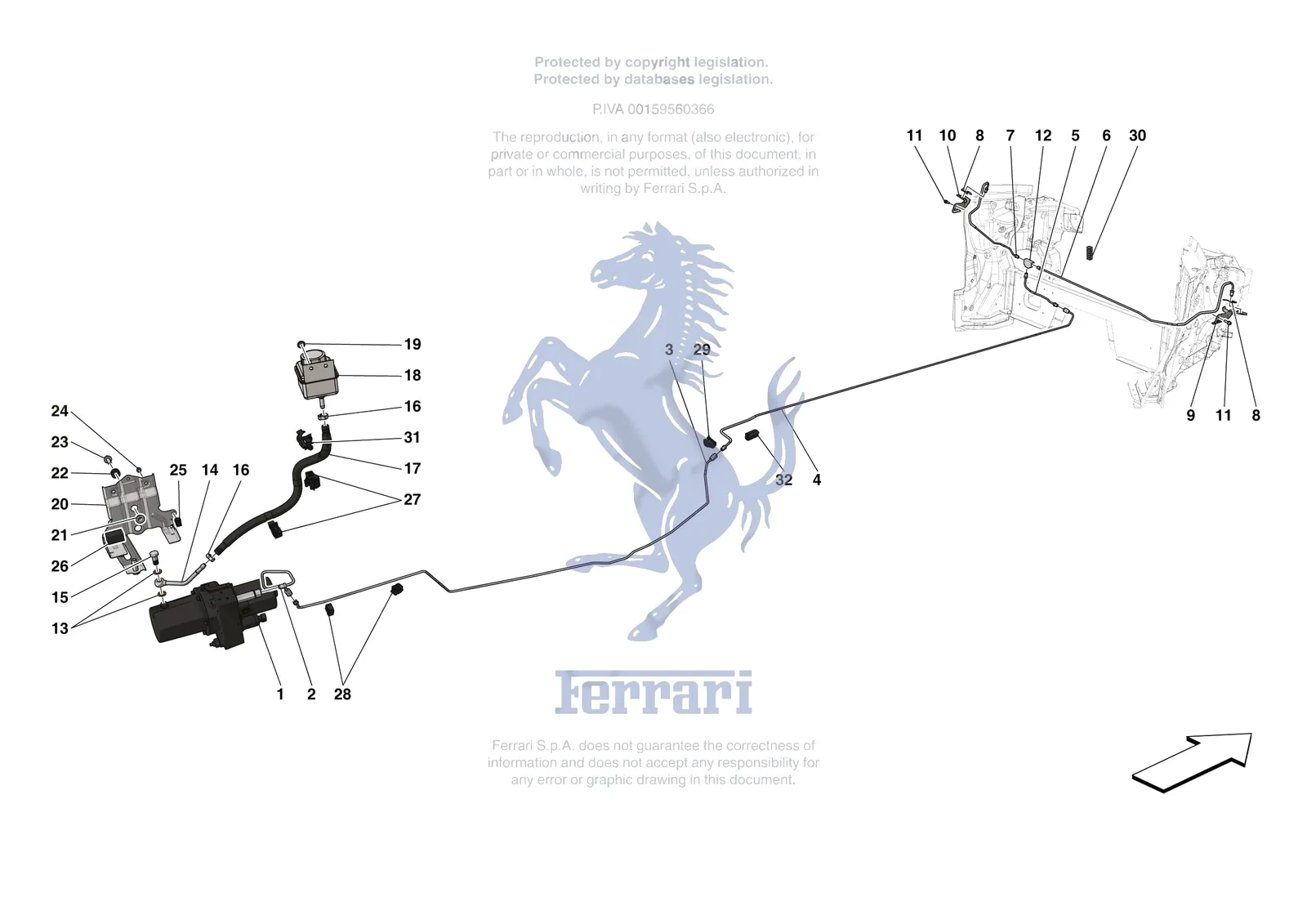

Exploded view of the [mechanical system] - d.18 - lifting the vehicle on the Ferrari SF90 Stradale, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0067.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 313722 | Ferrari Electric Pump - 313722 | Superseded | Order 844052 instead | |
| 255049 | Ferrari Screw 10x1.5x32 - 255049 | Superseded | Order 304224 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 844052 | Ferrari Electric Pump - 844052 | $5,673.99 | Special order, ships in 7-14 days |
| 2 | 803025 | Ferrari Lift System Pipe from Pump to Disconnector - 803025 | $110.78 | Special order, ships in 7-14 days |
| 3 | 921011 | Ferrari Tubo Sollev. Da Sez. A Sotto - 921011 | $201.88 | Special order, ships in 7-14 days |
| 4 | 861784 | Ferrari Underbody Lift System Pipe - 861784 | $226.49 | Special order, ships in 7-14 days |
| 5 | 863299 | Ferrari Tubo Sollev. Da Sez. A Blocc - 863299 | $118.16 | Special order, ships in 7-14 days |
| 6 | 811549 | Ferrari Lift System Pipe For RH Fron - 811549 | $236.34 | Special order, ships in 7-14 days |
| 6 | 895619 | Ferrari Lift System Pipe For RH Fron - 895619 | $236.34 | Special order, ships in 7-14 days |
| 6 | 808242 | Ferrari Lift System Pipe For RH Front Wheel - 808242 | $238.82 | Special order, ships in 7-14 days |
| 6 | 893489 | Ferrari Tubo Sollev. Ruota Anterior - 893489 | $233.89 | Special order, ships in 7-14 days |
| 7 | 895618 | Ferrari Lift System Pipe For LH Fron - 895618 | $177.25 | Special order, ships in 7-14 days |
| 7 | 811550 | Ferrari Lift System Pipe For LH Front Wheel - 811550 | $179.73 | Special order, ships in 7-14 days |
| 7 | 811548 | Ferrari Lift System Pipe From Block - 811548 | $179.73 | Special order, ships in 7-14 days |
| 7 | 875946 | Ferrari Tubo Soll. Da Blocc.A Ruota - 875946 | $177.25 | Special order, ships in 7-14 days |
| 8 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 9 | 867210 | Ferrari RH Lift System Hose Bracket - 867210 | $41.82 | Special order, ships in 7-14 days |
| 10 | 867209 | Ferrari LH Lift System Hose Bracket - 867209 | $41.82 | Special order, ships in 7-14 days |
| 11 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 12 | 292189 | Ferrari Lift System Distributor Block - 292189 | $169.62 | Special order, ships in 7-14 days |
| 13 | 260155 | Ferrari Gasket D12- 18X1.5 - 260155 | $7.84 | Special order, ships in 7-14 days |
| 14 | 805049 | Ferrari Lift System Rigid Filler Pipe - 805049 | $140.32 | Special order, ships in 7-14 days |
| 15 | 259642 | Ferrari Banjo Bolt Pipe Union - 259642 | $31.93 | Special order, ships in 7-14 days |
| 16 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 17 | 835858 | Ferrari Tubo Flessibile Riempimento - 835858 | $640.17 | Special order, ships in 7-14 days |
| 18 | 258573 | Ferrari Reservoir - 258573 | $86.04 | Special order, ships in 7-14 days |
| 19 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 20 | 804602 | Ferrari Lift Pump Mounting Bracket - 804602 | $295.43 | Special order, ships in 7-14 days |
| 20 | 959439 | Ferrari Lift Pump Mounting Bracket - 959439 | Superseded | Order 804602 instead |
| 21 | 255048 | Ferrari Grommet Shim - 255048 | $5.65 | Special order, ships in 7-14 days |
| 22 | 255047 | Ferrari Grommet - 255047 | $7.40 | Available, ships in 3-6 days |
| 23 | 304224 | Ferrari Screw 10x1.5x28 - 304224 | $30.57 | Special order, ships in 7-14 days |
| 24 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 25 | 256962 | Ferrari Clip D. 4.7X1 - 256962 | $1.36 | Special order, ships in 7-14 days |
| 26 | 308995 | Ferrari Plug - 308995 | $4.39 | Special order, ships in 7-14 days |
| 27 | 266156 | Ferrari Clip - 266156 | $1.28 | Special order, ships in 7-14 days |
| 28 | 234284 | Ferrari Clip - 234284 | $1.23 | Available, ships in 3-6 days |
| 29 | 249782 | Ferrari Clip - 249782 | $2.13 | Special order, ships in 7-14 days |
| 30 | 291250 | Ferrari Clip - 291250 | $1.49 | Special order, ships in 7-14 days |
| 31 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 32 | 262737 | Ferrari Rubber Retainer - 262737 | $10.06 | Special order, ships in 7-14 days |
