Ferrari SF90 Stradale — [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS (diagram 0081)

Exploded view of the [mechanical system] - d.27.03 - rear suspension - calipers and discs on the Ferrari SF90 Stradale, with 93 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

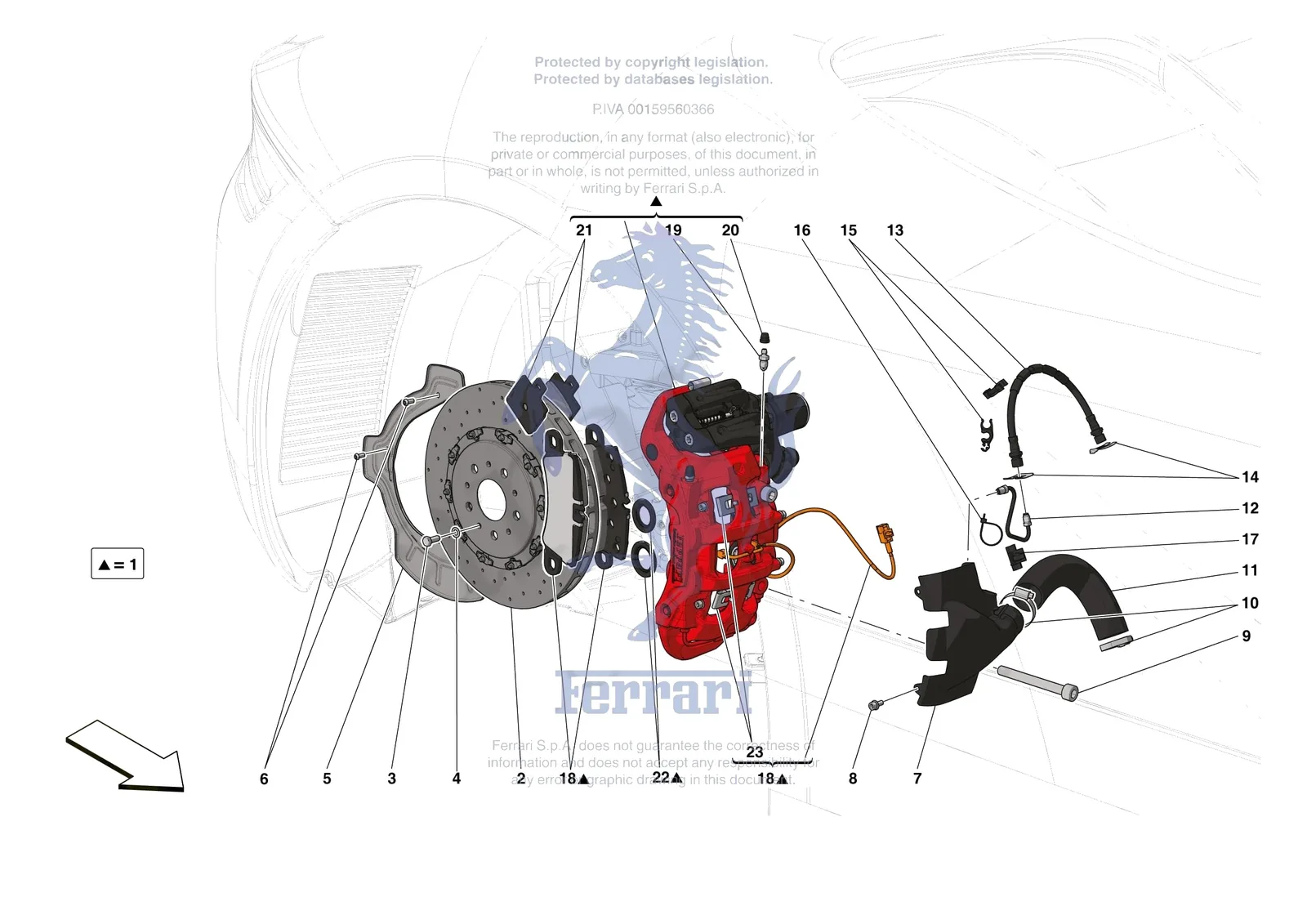

Ferrari SF90 Stradale [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
12486580Ferrari Botton - 12486580SupersededOrder 204781 instead
175871Ferrari Clip - 175871SupersededOrder 204781 instead
323365Ferrari Connector Fastener Clip - 323365SupersededOrder 204781 instead
240968Ferrari LH Disc Shield - 240968SupersededOrder 257423 instead
948578Ferrari Pipe - 948578$194.48Special order, ships in 7-14 days
240969Ferrari RH Disc Shield - 240969SupersededOrder 257424 instead
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
1867132Ferrari Caliper Cpl Ccm Post Dx Gial - 867132SupersededOrder 776940 instead
1867124Ferrari Caliper Cpl Ccm Post Dx Nero - 867124SupersededOrder 776946 instead
1867138Ferrari Caliper Cpl Ccm Post Dx Nero - 867138SupersededOrder 776926 instead
1867126Ferrari Caliper Cpl Ccm Post Dx Ross - 867126SupersededOrder 776928 instead
1867131Ferrari Caliper Cpl Ccm Post Sx Gial - 867131SupersededOrder 776939 instead
1867123Ferrari Caliper Cpl Ccm Post Sx Nero - 867123SupersededOrder 776945 instead
1867137Ferrari Caliper Cpl Ccm Post Sx Nero - 867137SupersededOrder 776924 instead
1867125Ferrari Caliper Cpl Ccm Post Sx Ross - 867125SupersededOrder 776927 instead
1859615Ferrari COMPL. LH REAR CALIPER - 859615Price on requestContact us for price and availability
1860103Ferrari COMPL. LH REAR CALIPER - 860103Price on requestContact us for price and availability
1860105Ferrari COMPL. LH REAR CALIPER - 860105Price on requestContact us for price and availability
1860110Ferrari COMPL. LH REAR CALIPER - 860110Price on requestContact us for price and availability
1860159Ferrari COMPL. LH REAR CALIPER - 860159Price on requestContact us for price and availability
1860161Ferrari COMPL. LH REAR CALIPER - 860161Price on requestContact us for price and availability
1860164Ferrari COMPL. LH REAR CALIPER - 860164Price on requestContact us for price and availability
1860167Ferrari Compl. LH Rear Caliper - 860167$10,303.58Special order, ships in 7-14 days
1860169Ferrari COMPL. LH REAR CALIPER - 860169Price on requestContact us for price and availability
1776924Ferrari Compl. LH Rear Caliper - CCM Nero - 776924$9,731.15Special order, ships in 7-14 days
1776927Ferrari Compl. LH Rear Calliper - 776927$9,866.45Special order, ships in 7-14 days
1776929Ferrari Compl. LH Rear Calliper - 776929$10,074.60Contact us to order
1776933Ferrari Compl. LH Rear Calliper - 776933$10,074.60Contact us to order
1776939Ferrari Compl. LH Rear Calliper - 776939$10,074.60Contact us to order
1776941Ferrari Compl. LH Rear Calliper - 776941$10,074.60Contact us to order
1776943Ferrari Compl. LH Rear Calliper - 776943$10,615.81Contact us to order
1776945Ferrari Compl. LH Rear Calliper - 776945$9,575.05Special order, ships in 7-14 days
1776947Ferrari Compl. LH Rear Calliper - 776947$10,640.79Contact us to order
1867127Ferrari Compl. LH Rear Calliper - 867127SupersededOrder 776929 instead
1867129Ferrari Compl. LH Rear Calliper - 867129SupersededOrder 776933 instead
1867133Ferrari Compl. LH Rear Calliper - 867133SupersededOrder 776941 instead
1867135Ferrari Compl. LH Rear Calliper - 867135SupersededOrder 776943 instead
1867139Ferrari Compl. LH Rear Calliper - 867139SupersededOrder 776947 instead
1859618Ferrari COMPL. RH REAR CALIPER - 859618Price on requestContact us for price and availability
1860173Ferrari COMPL. RH REAR CALIPER - 860173Price on requestContact us for price and availability
1860175Ferrari COMPL. RH REAR CALIPER - 860175Price on requestContact us for price and availability
1860177Ferrari COMPL. RH REAR CALIPER - 860177Price on requestContact us for price and availability
1860180Ferrari COMPL. RH REAR CALIPER - 860180Price on requestContact us for price and availability
1860182Ferrari Compl. RH Rear Caliper - 860182$10,486.76Special order, ships in 7-14 days
1860184Ferrari COMPL. RH REAR CALIPER - 860184Price on requestContact us for price and availability
1860186Ferrari Compl. RH Rear Caliper - 860186$10,303.58Special order, ships in 7-14 days
1860188Ferrari COMPL. RH REAR CALIPER - 860188Price on requestContact us for price and availability
1776926Ferrari Compl. RH Rear Caliper - CCM Nero - 776926$9,731.15Special order, ships in 7-14 days
1776928Ferrari Compl. RH Rear Calliper - 776928$9,866.45Special order, ships in 7-14 days
1776931Ferrari Compl. RH Rear Calliper - 776931$10,074.60Contact us to order
1776937Ferrari Compl. RH Rear Calliper - 776937$10,074.60Contact us to order
1776940Ferrari Compl. RH Rear Calliper - 776940$10,074.60Contact us to order
1776942Ferrari Compl. RH Rear Calliper - 776942$10,074.60Contact us to order
1776944Ferrari Compl. RH Rear Calliper - 776944$10,615.81Contact us to order
1776946Ferrari Compl. RH Rear Calliper - 776946$9,575.05Special order, ships in 7-14 days
1776948Ferrari Compl. RH Rear Calliper - 776948$10,640.79Contact us to order
1867128Ferrari Compl. RH Rear Calliper - 867128SupersededOrder 776931 instead
1867130Ferrari Compl. RH Rear Calliper - 867130SupersededOrder 776937 instead
1867134Ferrari Compl. RH Rear Calliper - 867134SupersededOrder 776942 instead
1867136Ferrari Compl. RH Rear Calliper - 867136SupersededOrder 776944 instead
1867140Ferrari Compl. RH Rear Calliper - 867140SupersededOrder 776948 instead
2776900Ferrari Rear Brake Disc - 776900$9,763.68Available, ships in 3-6 days
2859613Ferrari Rear Brake Disc - 859613$9,180.32Special order, ships in 7-14 days
2319166Ferrari Rear Brake Disc 360X32 - 319166$6,306.82Available, ships in 3-6 days
3228131Ferrari Screw M8 x 20 - 228131$1.53Available, ships in 3-6 days
4228132Ferrari Spring Washer - 228132$0.59Available, ships in 3-6 days
5257423Ferrari LH Rear Disc Shield - 257423$95.87Special order, ships in 7-14 days
5257424Ferrari RH Rear Disc Shield - 257424$95.87Special order, ships in 7-14 days
6250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
7883174Ferrari Manina Pinza Post. Dx - 883174$467.80Special order, ships in 7-14 days
7883173Ferrari Manina Pinza Post. Sx - 883173$467.80Special order, ships in 7-14 days
814305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
8231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
9195167Ferrari Screw TCEI M12 x 1.5 x 95 - 195167$34.94Available, ships in 3-6 days
10296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
11281349Ferrari Pipe - 281349$194.22Special order, ships in 7-14 days
12299560Ferrari LH Brake Pipe - 299560$49.14Special order, ships in 7-14 days
12299562Ferrari RH Brake Pipe - 299562$58.98Special order, ships in 7-14 days
13977797Ferrari Brake Hose 330 mm - 977797$100.78Available, ships in 3-6 days
14116374Ferrari/Maserati Clip - 116374$3.20In stock
15310942Ferrari Triple Clip - 310942$3.26Special order, ships in 7-14 days
1610815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
17204781Ferrari Clip - 204781$1.67Available, ships in 3-6 days
1870005268Ferrari Rear Brake Pad + Wear Sensor + Spring Kit - 70005268$4,241.62Special order, ships in 7-14 days
1870005107Ferrari Rear Brake Pad Set with Springs - 70005107SupersededOrder 70005268 instead
18851791Ferrari Rear Pad Set With Spring - 851791$4,822.50Special order, ships in 7-14 days
19215665Ferrari Bleed Nipple Valve - 215665$78.66Available, ships in 3-6 days
20215666Ferrari Cap For Bleed Nipple - 215666$51.62Available, ships in 3-6 days
2170003667Ferrari Set Of EPB Pads - 70003667$1,968.72Available, ships in 3-6 days
2270003493Ferrari Rear Brake Caliper Seal Kit - 70003493$108.90In stock
2370005108Ferrari Rear Pad Set With Spring - 70005108$24.13Special order, ships in 7-14 days
