Ferrari SF90 Stradale — [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING (diagram 0195)

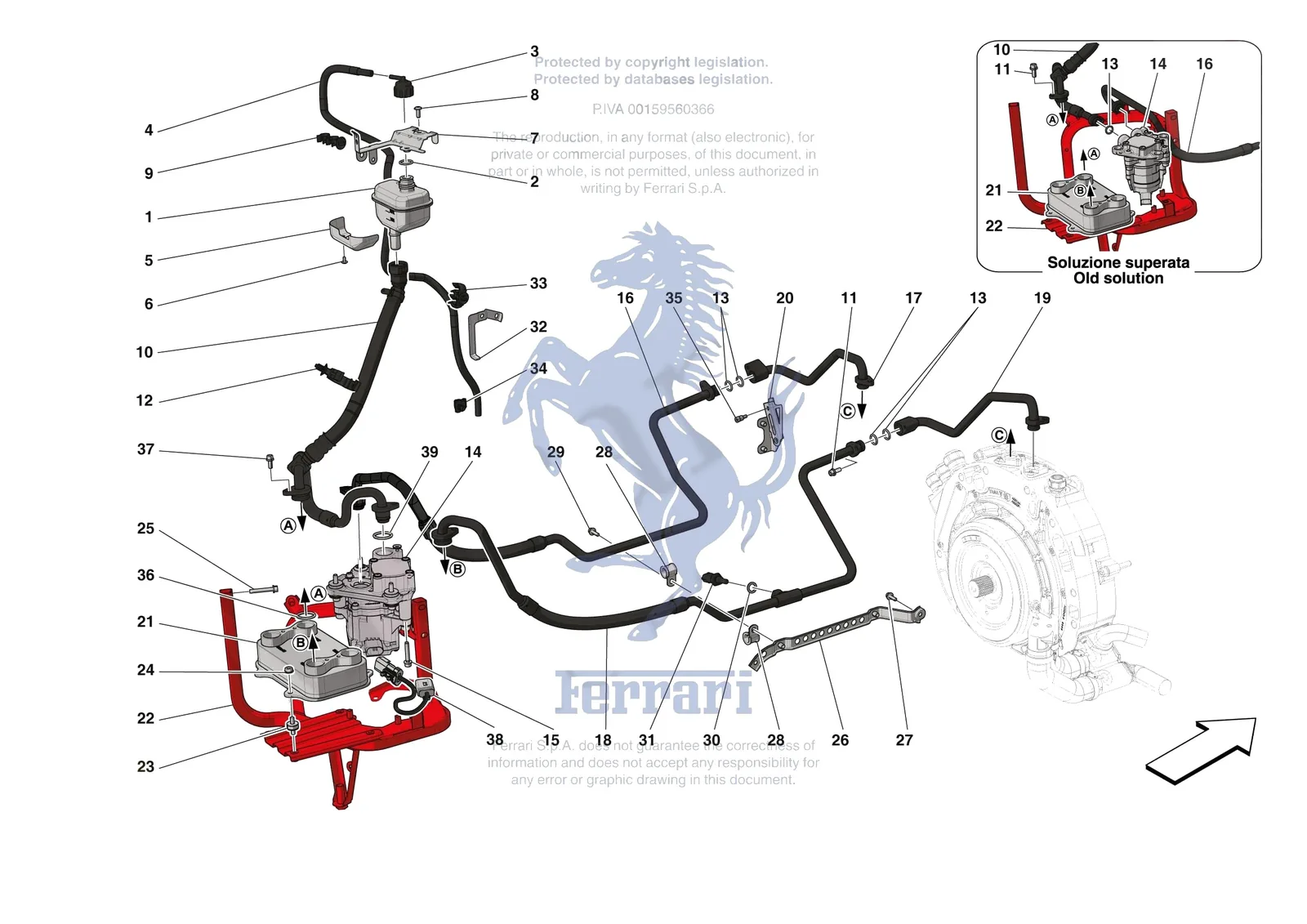

Exploded view of the [electrical system] - f.20 - electric machine cooling on the Ferrari SF90 Stradale, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Stradale [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
260007Ferrari Stud Bolt 6X24 H45M6X10 H1 - 260007$15.39Special order, ships in 7-14 days
1828985Ferrari P2 Cooling Oil Tank - 828985$295.43Special order, ships in 7-14 days
2922718Ferrari O-Ring - 922718$54.61Special order, ships in 7-14 days
3867659Ferrari Cap With P2 Header Tank Brea - 867659$56.52Special order, ships in 7-14 days
4986085Ferrari P2 Vent Pipe - 986085$270.83Special order, ships in 7-14 days
5925999Ferrari Riparo Serbatoio P2 - 925999$110.78Special order, ships in 7-14 days
615689501Ferrari Screw - 15689501$0.50Available, ships in 3-6 days
615783204Ferrari Screw - 15783204$0.38Available, ships in 3-6 days
7921379Ferrari P2 Oil Tank Bracket - 921379$66.45Special order, ships in 7-14 days
7954516Ferrari P2 Oil Tank Bracket - 954516$66.45Special order, ships in 7-14 days
885740000Ferrari Screw - 85740000$2.59Special order, ships in 7-14 days
9897378Ferrari Spacer Clip - 897378$3.26Special order, ships in 7-14 days
10783583Ferrari P2 Oil Delivery Pipe From He - 783583$1,452.72Special order, ships in 7-14 days
10882620Ferrari Tubo Olio P2 Da Scamb A Pomp - 882620$812.51Special order, ships in 7-14 days
11248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
12310150Ferrari Clip - 310150$3.03Special order, ships in 7-14 days
12821185Ferrari Clip D.22-26.5 - 821185$5.65Special order, ships in 7-14 days
13286421Ferrari Gasket - 286421$1.88Available, ships in 3-6 days
1455004826Ferrari Compl. Pump With Plate - 55004826$1,896.77Special order, ships in 7-14 days
14894449Ferrari Compl. Pump With Plate - 894449SupersededOrder 55004826 instead
14894450Ferrari Pompa Con Piastra Cpl. - 894450$4,319.49Special order, ships in 7-14 days
14904921Ferrari Pompa Con Piastra Cpl. - 904921SupersededOrder 894450 instead
14968766Ferrari Pompa Con Piastra Cpl. - 968766SupersededOrder 894450 instead
15231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
16827516Ferrari P2 Oil Delivery Pipe Pump S - 827516$443.17Special order, ships in 7-14 days
16878916Ferrari Tubo Olio P2 Mandata Lato Po - 878916$418.56Special order, ships in 7-14 days
17878917Ferrari Tubo Olio P2 Mandata Lato Ya - 878917$216.66Special order, ships in 7-14 days
18807663Ferrari Tubo Olio P2 Ritorno Lato Sc - 807663Price on requestContact us for price and availability
18958015Ferrari Tubo Olio P2 Ritorno Lato Sc - 958015$689.41Special order, ships in 7-14 days
18967314Ferrari Tubo Olio P2 Ritorno Lato Sc - 967314$640.17Special order, ships in 7-14 days
19878918Ferrari Tubo Olio P2 Ritorno Lato Ya - 878918$224.04Special order, ships in 7-14 days
20918951Ferrari Heat Shield Bracket - Oil Pipes - 918951SupersededOrder 966197 instead
20966197Ferrari Heat Shield Bracket - Oil Pipes - 966197$100.93Special order, ships in 7-14 days
21839673Ferrari Scambiatore H20 Olio Alexon - 839673$1,403.46Special order, ships in 7-14 days
22904917Ferrari Trellis For Heat Exchanger A - 904917$787.90Special order, ships in 7-14 days
22981043Ferrari Trellis For Heat Exchanger A - 981043$787.90Special order, ships in 7-14 days
23225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
2414040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
25231623Ferrari Screw M6 x 40 TCEI - 231623$1.02Available, ships in 3-6 days
26897851Ferrari Bracket on Gearbox for P2 Oil Pipes - 897851SupersededOrder 966206 instead
26966206Ferrari Bracket on Gearbox for P2 Oil Pipes - 966206$44.29Special order, ships in 7-14 days
27231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
2810441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
29256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
3010298460Ferrari Washer - 10298460$1.10In stock
31180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
32986198Ferrari Breather Pipe Orientation Bracket - 986198$66.45Special order, ships in 7-14 days
33925709Ferrari Double Clip D14-D1 - 925709$2.61Special order, ships in 7-14 days
34262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
35232777Ferrari Stud Bolt M6x1 H15.5 M6 - 232777$14.99Special order, ships in 7-14 days
36122791Ferrari O-Ring - 122791$4.12Available, ships in 3-6 days
38857738Ferrari P2/P4 Pump Connector Wiring - 857738$51.67Special order, ships in 7-14 days
39216851Ferrari O-Ring - 216851$5.44Special order, ships in 7-14 days
