Ferrari SF90 XX Spider — [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS (diagram 0021)

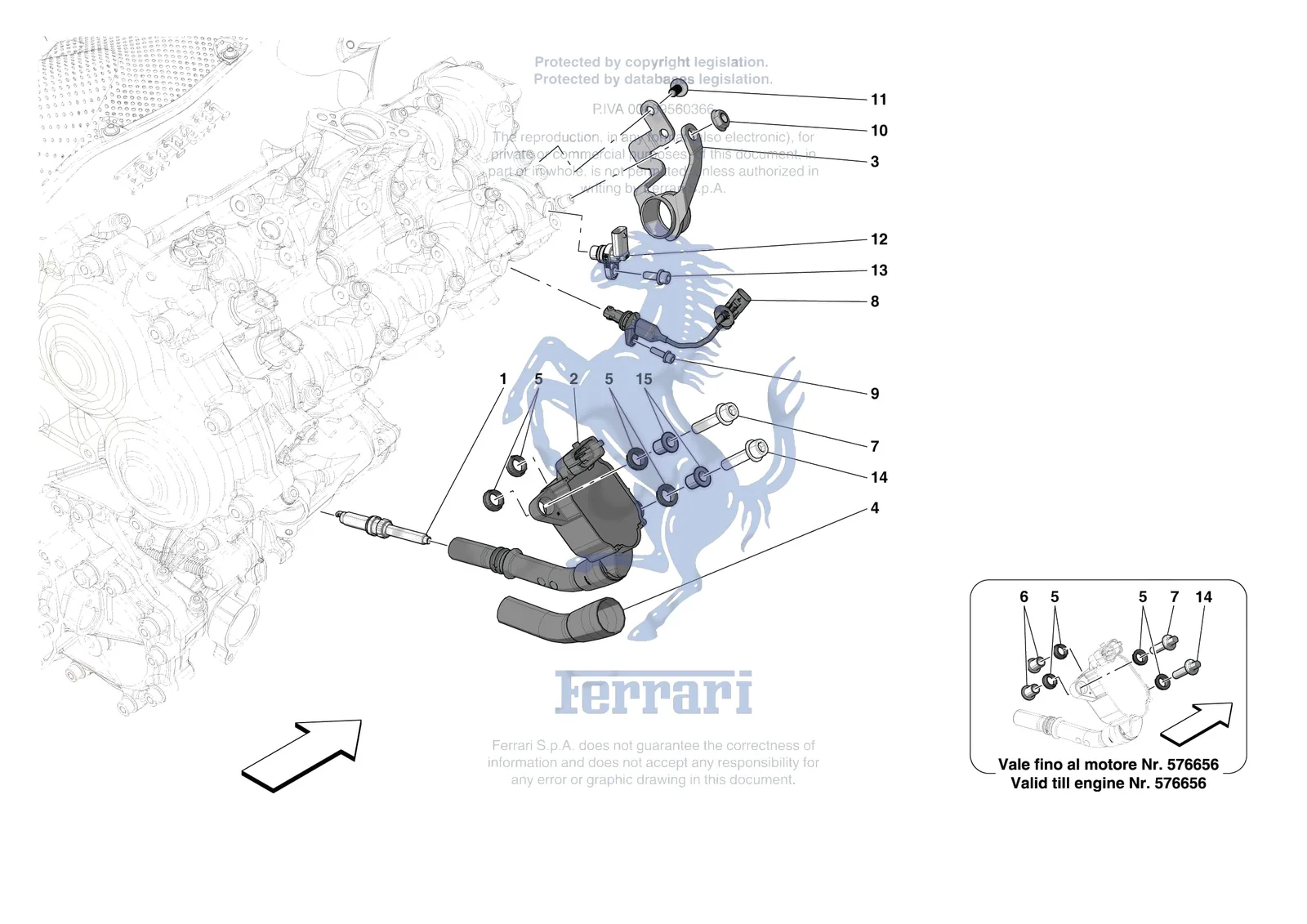

Exploded view of the [engine] - b.16 - ignition coil spark plugs and sensors on the Ferrari SF90 XX Spider, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0021.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 912709 | Ferrari Ignition Coil - 912709 | $295.43 | Available, ships in 3-6 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 808693 | Ferrari Spark Plug - 808693 | $38.00 | In stock |
| 2 | 953731 | Ferrari Ignition Coil - 953731 | $979.09 | Available, ships in 3-6 days |
| 2 | 959204 | Ferrari Ignition Coil - 959204 | $295.43 | Available, ships in 3-6 days |
| 3 | 811564 | Ferrari LH Coiled Pipe Mounting Brac - 811564 | $320.06 | Special order, ships in 7-14 days |
| 3 | 811563 | Ferrari RH Coiled Pipe Mounting Brac - 811563 | $320.06 | Special order, ships in 7-14 days |
| 4 | 940473 | Ferrari Guaina Harnasleeve 1740 - 940473 | $10.83 | Special order, ships in 7-14 days |
| 5 | 334070 | Ferrari Gommino Silic.Antiv.A 3 Risa - 334070 | $1.17 | Special order, ships in 7-14 days |
| 6 | 911623 | Ferrari Metallic Bushing D 6.5mm - 911623 | $5.65 | Special order, ships in 7-14 days |
| 7 | 801105 | Ferrari Screw - 801105 | $16.18 | Special order, ships in 7-14 days |
| 7 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 8 | 963744 | Ferrari Rpm Sensor - 963744 | $875.44 | Available, ships in 3-6 days |
| 9 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 10 | 980190 | Ferrari Nut - 980190 | $21.64 | Special order, ships in 7-14 days |
| 11 | 823018 | Ferrari Screw - 823018 | $1.42 | Special order, ships in 7-14 days |
| 12 | 935179 | Ferrari Phase Sensor Pg 3.9 M - 935179 | $117.47 | Available, ships in 3-6 days |
| 13 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 15 | 935184 | Ferrari Bush - 935184 | $13.09 | Special order, ships in 7-14 days |
