Ferrari SF90 XX Stradale — [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS (diagram 0027)

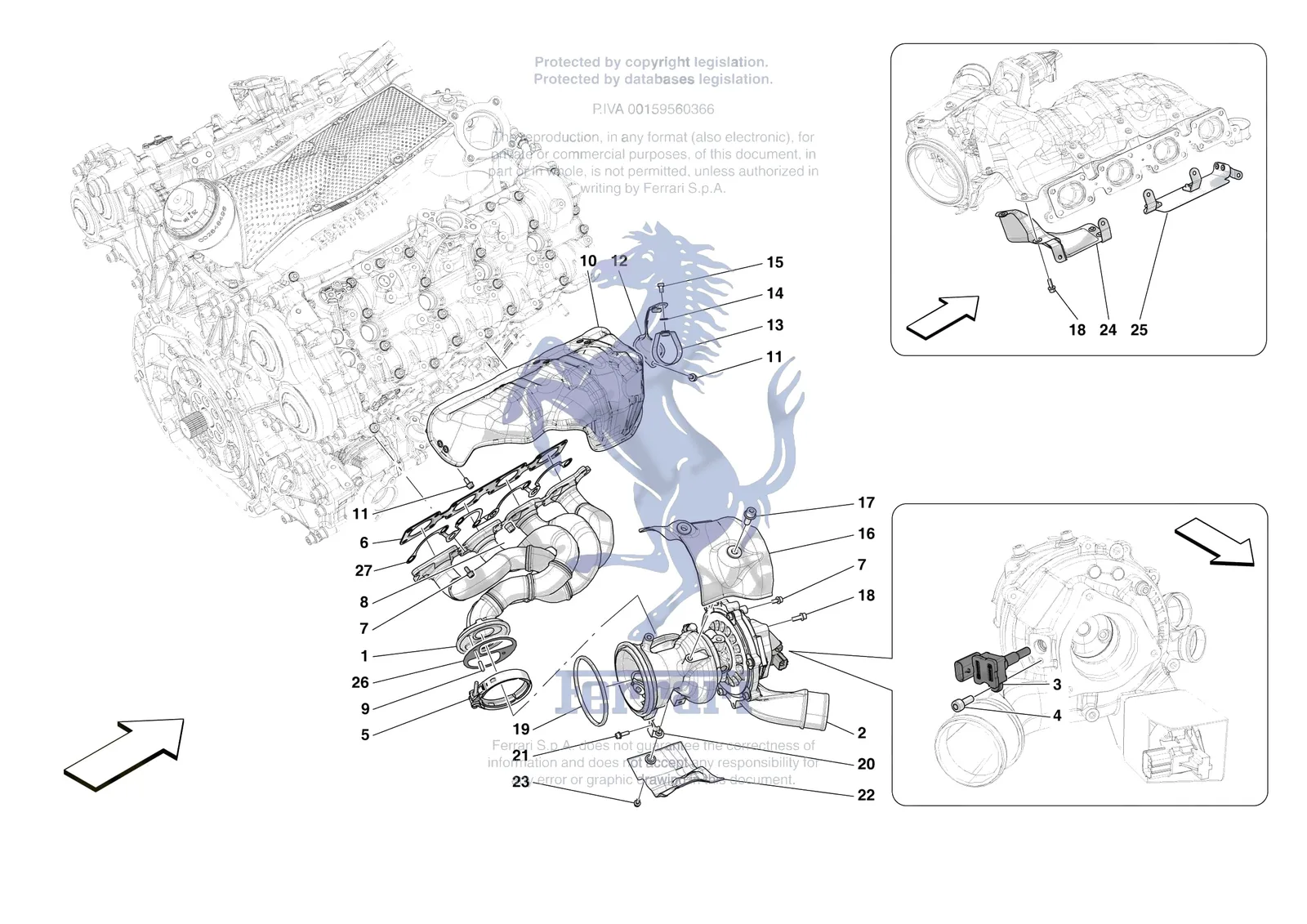

Exploded view of the [engine] - b.22 - forced induction system turbochargers and mounts on the Ferrari SF90 XX Stradale, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0027.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 917942 | Ferrari Paratia Calore Sotto Collett - 917942 | $169.87 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 2 | 804793 | Ferrari LH Turbocharger - 804793 | $19,225.19 | Contact us to order |
| 2 | 804794 | Ferrari Turbo Dx. Wg Saldata + Contr - 804794 | $19,603.22 | Contact us to order |
| 3 | 342239 | Ferrari Speed Sensor - 342239 | $437.10 | Special order, ships in 7-14 days |
| 7, 23 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 7, 23 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 18 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 21 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 25 | 978585 | Ferrari Paratia Calore Sotto Collett - 978585 | $177.25 | Special order, ships in 7-14 days |
| 25 | 987057 | Ferrari Paratia Calore Sotto Collett - 987057 | $177.25 | Special order, ships in 7-14 days |
