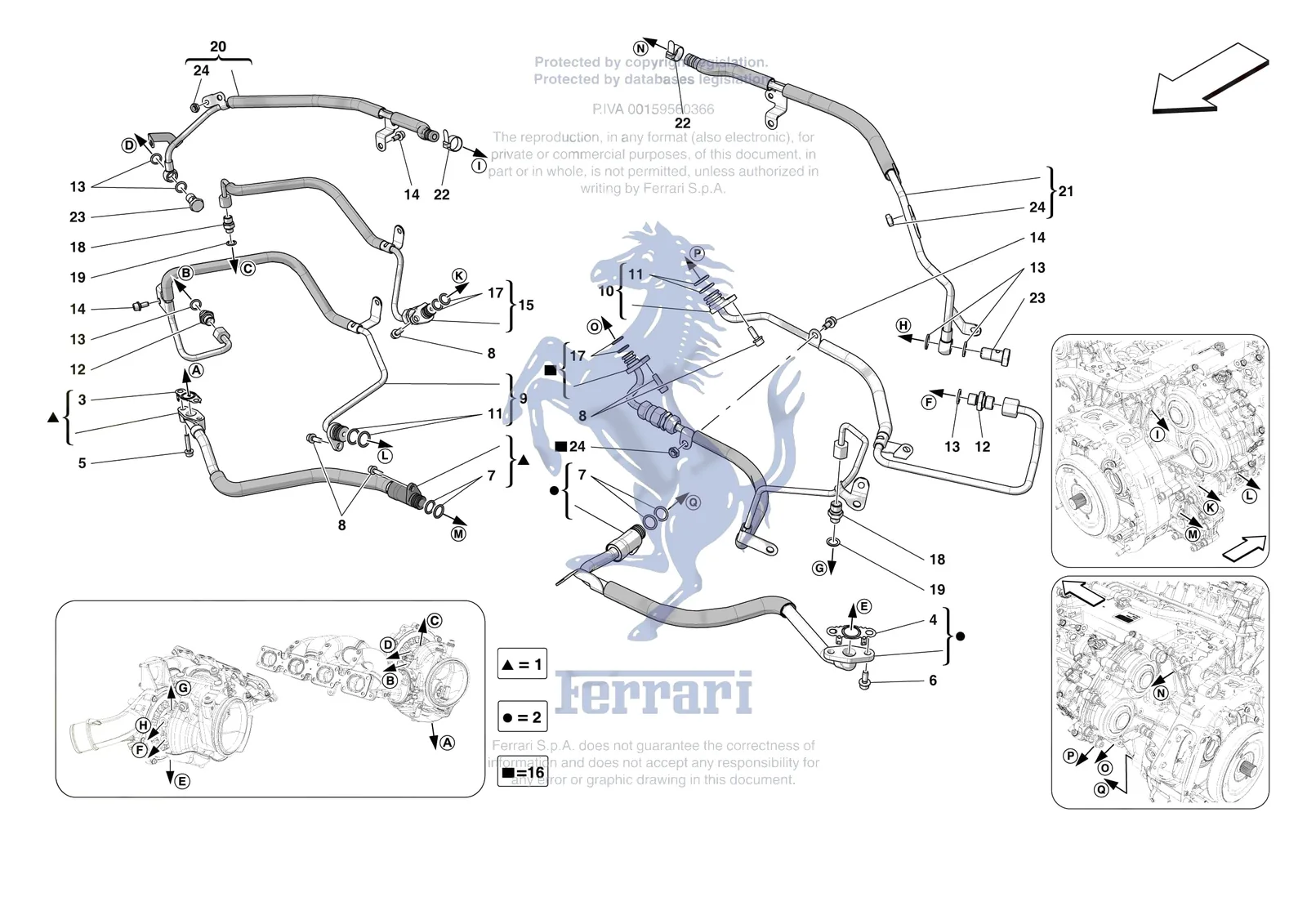

Ferrari SF90 XX Stradale — [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES (diagram 0028)
Exploded view of the [engine] - b.23 - forced induction system pipes on the Ferrari SF90 XX Stradale, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0028.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 802274 | Ferrari Tubazione Rec Olio Dx Con Va - 802274 | Price on request | Contact us for price and availability | |
| 985623 | Ferrari Tubazione Rec Olio Dx Con Va - 985623 | Price on request | Contact us for price and availability | |
| 802275 | Ferrari Tubazione Rec Olio Sx Con Va - 802275 | Price on request | Contact us for price and availability | |
| 985624 | Ferrari Tubazione Rec Olio Sx Con Va - 985624 | Price on request | Contact us for price and availability | |
| 796496 | Ferrari Tubo Mandata H2O A Turbina - 796496 | $393.93 | Special order, ships in 7-14 days | |
| 1 | 55020700 | Ferrari Oil Return Pipe From RH Turb - 55020700 | $787.90 | Special order, ships in 7-14 days |
| 1 | 788105 | Ferrari Tubazione Rec Olio Dx Con Va - 788105 | $738.64 | Special order, ships in 7-14 days |
| 1 | 968447 | Ferrari Tubazione Rec Olio Dx Con Va - 968447 | $787.90 | Special order, ships in 7-14 days |
| 1 | 974393 | Ferrari Tubazione Rec Olio Dx Con Va - 974393 | Price on request | Contact us for price and availability |
| 2 | 55020701 | Ferrari Tubazione Rec Olio Sx Con Va - 55020701 | $837.14 | Special order, ships in 7-14 days |
| 2 | 788106 | Ferrari Tubazione Rec Olio Sx Con Va - 788106 | $787.90 | Special order, ships in 7-14 days |
| 2 | 968448 | Ferrari Tubazione Rec Olio Sx Con Va - 968448 | $837.14 | Special order, ships in 7-14 days |
| 2 | 974394 | Ferrari Tubazione Rec Olio Sx Con Va - 974394 | Price on request | Contact us for price and availability |
| 3 | 342213 | Ferrari Oil Recovery Pipe Seal - 342213 | $72.20 | Special order, ships in 7-14 days |
| 4 | 308203 | Ferrari Gasket - 308203 | $39.31 | Available, ships in 3-6 days |
| 5 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 6 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 7 | 287722 | Ferrari O-Ring 15.08 x 2.62 - 287722 | $9.81 | Available, ships in 3-6 days |
| 8 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 9 | 55020695 | Ferrari Tubo Mandata H2O A Turbina - 55020695 | $418.56 | Special order, ships in 7-14 days |
| 9 | 865067 | Ferrari Tubo Mandata H2O A Turbina - 865067 | $418.56 | Special order, ships in 7-14 days |
| 10 | 55020697 | Ferrari Tubo Mandata H2O A Turbina - 55020697 | Price on request | Contact us for price and availability |
| 10 | 835088 | Ferrari Tubo Mandata H2O A Turbina - 835088 | $566.30 | Special order, ships in 7-14 days |
| 11 | 14457281 | Ferrari Gasket - 14457281 | $20.76 | Special order, ships in 7-14 days |
| 12 | 290216 | Ferrari Threaded Connector With Seal Ring - 290216 | $44.29 | Special order, ships in 7-14 days |
| 13 | 10261060 | Ferrari/Maserati Copper Crush Washer - 10261060 | $0.26 | In stock |
| 14 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 14 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 15 | 55013534 | Ferrari Tubo Mandata Olio A Turbina - 55013534 | $714.03 | Special order, ships in 7-14 days |
| 15 | 923390 | Ferrari Tubo Mandata Olio A Turbina - 923390 | Superseded | Order 55013534 instead |
| 16 | 55013535 | Ferrari Tubo Mandata Olio A Turbina - 55013535 | $763.27 | Special order, ships in 7-14 days |
| 16 | 925718 | Ferrari Tubo Mandata Olio A Turbina - 925718 | $738.64 | Special order, ships in 7-14 days |
| 17 | 14456981 | Ferrari 360/430 Gearbox Cover O-Ring - 14456981 | $1.81 | In stock |
| 18 | 923014 | Ferrari Threaded Connector with Seal Ring - 923014 | $24.59 | Special order, ships in 7-14 days |
| 19 | 10260160 | Ferrari Copper Washer D. 10 - 14 x 1 - 10260160 | $1.99 | Available, ships in 3-6 days |
| 20 | 55020698 | Ferrari Tubo Ritorno H2O Da Turbina - 55020698 | $467.80 | Special order, ships in 7-14 days |
| 20 | 901164 | Ferrari Tubo Ritorno H2O Da Turbina - 901164 | $467.80 | Special order, ships in 7-14 days |
| 21 | 55020699 | Ferrari Tubo Ritorno H2O Da Turbina - 55020699 | Superseded | Order 865444 instead |
| 21 | 865444 | Ferrari Tubo Ritorno H2O Da Turbina - 865444 | $467.80 | Special order, ships in 7-14 days |
| 22 | 262107 | Ferrari Screw Collar - 262107 | $3.26 | Special order, ships in 7-14 days |
| 23 | 308429 | Ferrari Pipe Union - 308429 | $20.16 | Available, ships in 3-6 days |
| 24 | 14094010 | Ferrari Nut - 14094010 | $24.05 | Special order, ships in 7-14 days |
