Ferrari SF90 XX Stradale — [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES (diagram 0030)

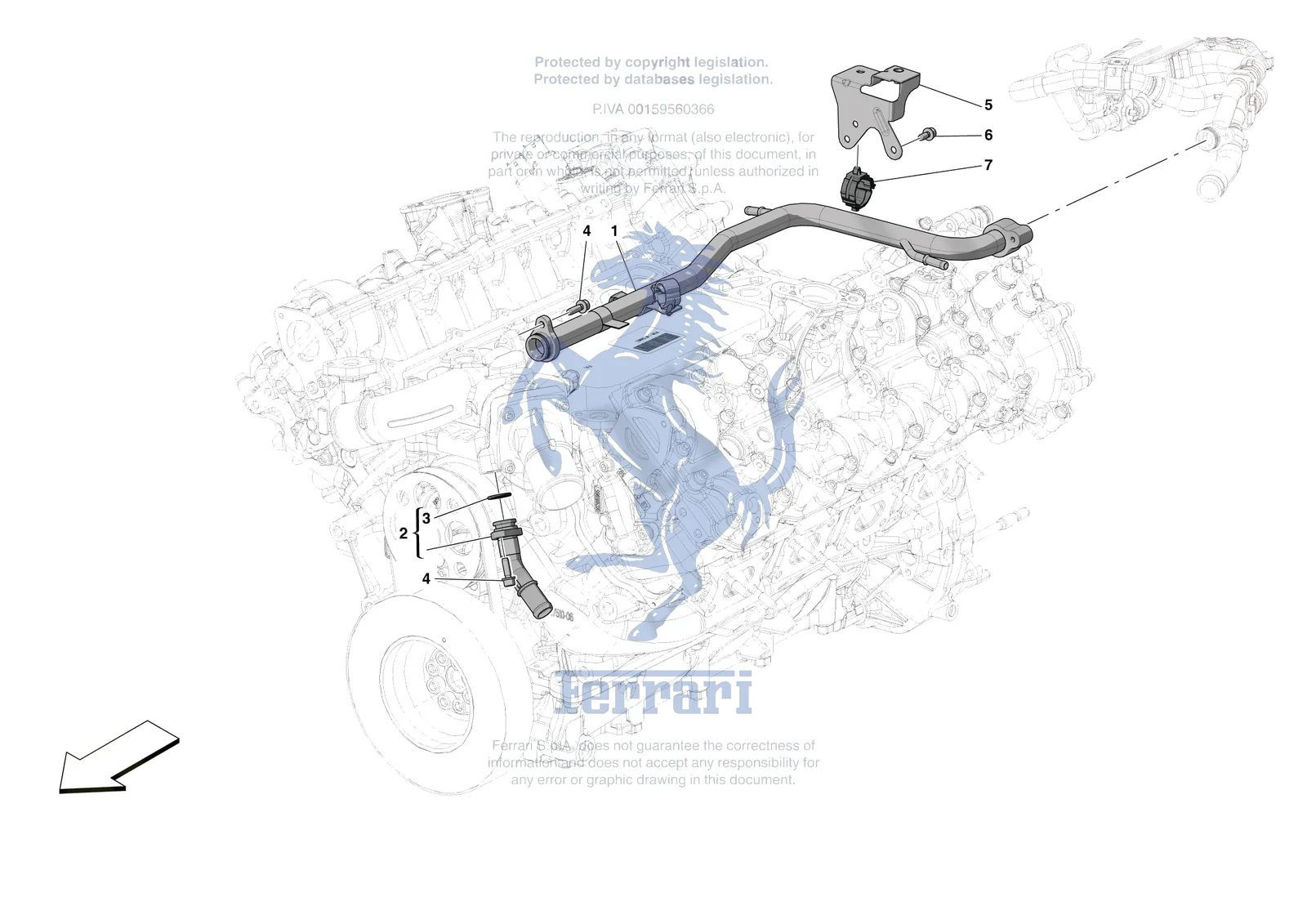

Exploded view of the [engine] - b.25 - engine cooling system pipes on the Ferrari SF90 XX Stradale, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0030.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 865868 | Ferrari Bracket - 865868 | $49.22 | Special order, ships in 7-14 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 917151 | Ferrari Tubo Ritorno Monoscambiatore - 917151 | $467.80 | Special order, ships in 7-14 days |
| 2 | 795600 | Ferrari Tubo Mandata A Riscaldatore - 795600 | $160.02 | Special order, ships in 7-14 days |
| 3 | 287632 | Ferrari O-Ring - 287632 | $6.31 | Available, ships in 3-6 days |
| 4 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 5 | 957851 | Ferrari Bracket - 957851 | Superseded | Order 865868 instead |
| 6 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 7 | 82051100 | Ferrari Clip - 82051100 | $1.82 | Available, ships in 3-6 days |
