Ferrari SF90 XX Stradale — [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS (diagram 0081)

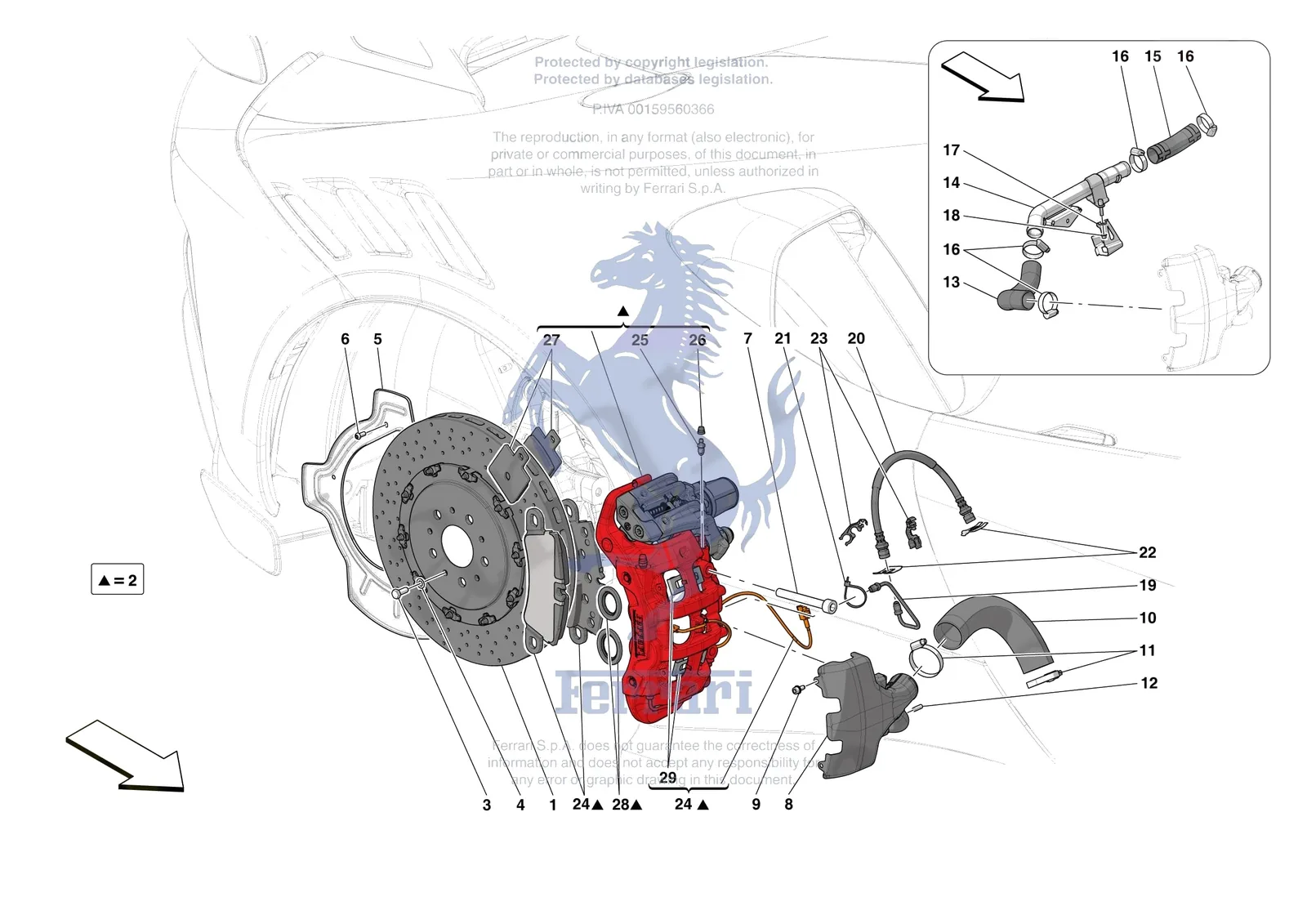

Exploded view of the [mechanical system] - d.27.03 - rear suspension - calipers and discs on the Ferrari SF90 XX Stradale, with 62 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Stradale [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
1833469Ferrari REAR BRAKE DISC - 833469$10,588.47Special order, ships in 7-14 days
1843379Ferrari REAR BRAKE DISC - 843379$10,588.47Special order, ships in 7-14 days
2798290Ferrari Compl. LH Rear Caliper - 798290$9,955.35Special order, ships in 7-14 days
2891046Ferrari COMPL. LH REAR CALIPER - 891046Price on requestContact us for price and availability
2891048Ferrari COMPL. LH REAR CALIPER - 891048Price on requestContact us for price and availability
2891049Ferrari COMPL. LH REAR CALIPER - 891049Price on requestContact us for price and availability
2891050Ferrari COMPL. LH REAR CALIPER - 891050Price on requestContact us for price and availability
2891051Ferrari COMPL. LH REAR CALIPER - 891051Price on requestContact us for price and availability
2891052Ferrari COMPL. LH REAR CALIPER - 891052Price on requestContact us for price and availability
2891053Ferrari COMPL. LH REAR CALIPER - 891053Price on requestContact us for price and availability
2891054Ferrari COMPL. LH REAR CALIPER - 891054Price on requestContact us for price and availability
2798291Ferrari Compl. RH Rear Caliper - 798291$9,955.35Special order, ships in 7-14 days
2891057Ferrari COMPL. RH REAR CALIPER - 891057Price on requestContact us for price and availability
2891070Ferrari COMPL. RH REAR CALIPER - 891070Price on requestContact us for price and availability
2891072Ferrari COMPL. RH REAR CALIPER - 891072Price on requestContact us for price and availability
2891078Ferrari COMPL. RH REAR CALIPER - 891078Price on requestContact us for price and availability
2891079Ferrari COMPL. RH REAR CALIPER - 891079Price on requestContact us for price and availability
2891080Ferrari COMPL. RH REAR CALIPER - 891080Price on requestContact us for price and availability
2891081Ferrari COMPL. RH REAR CALIPER - 891081Price on requestContact us for price and availability
2891082Ferrari COMPL. RH REAR CALIPER - 891082Price on requestContact us for price and availability
3228131Ferrari Screw M8 x 20 - 228131$1.53Available, ships in 3-6 days
4228132Ferrari Spring Washer - 228132$0.59Available, ships in 3-6 days
5916464Ferrari LH REAR DISC SHIELD - 916464Price on requestContact us for price and availability
5916493Ferrari RH REAR DISC SHIELD - 916493Price on requestContact us for price and availability
6250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
7195167Ferrari Screw TCEI M12 x 1.5 x 95 - 195167$34.94Available, ships in 3-6 days
8894400Ferrari LH Rear Caliper Housing Cove - 894400$812.51Special order, ships in 7-14 days
8894401Ferrari RH Rear Caliper Housing Cove - 894401$812.51Special order, ships in 7-14 days
914305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
9231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
10817210Ferrari Air Delivery Pipe - 817210$182.18Special order, ships in 7-14 days
11296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
1211499921Ferrari Stud - 11499921$16.43Available, ships in 3-6 days
1211499924Ferrari Stud - 11499924SupersededOrder 11499921 instead
13895181Ferrari Air Delivery Pipe - 895181$125.54Special order, ships in 7-14 days
14894407Ferrari Pipe On LH Arm - 894407SupersededOrder 972005 instead
14972005Ferrari Pipe On LH Arm - 972005$590.91Special order, ships in 7-14 days
14894408Ferrari Pipe On RH Arm - 894408SupersededOrder 972006 instead
14972006Ferrari Pipe On RH Arm - 972006$590.91Special order, ships in 7-14 days
15817224Ferrari Air Delivery Pipe - 817224$113.24Special order, ships in 7-14 days
16268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
17944556Ferrari Collar Fastening Pipe On LH - 944556$56.89Special order, ships in 7-14 days
17944557Ferrari Collar Fastening Pipe On RH - 944557$56.89Special order, ships in 7-14 days
18160472Ferrari Nut - 160472$4.35Special order, ships in 7-14 days
19889508Ferrari Compl. Brake Pipe From Calli - 889508$56.60Special order, ships in 7-14 days
19889510Ferrari Compl. Brake Pipe From Calli - 889510$56.60Special order, ships in 7-14 days
20977797Ferrari Brake Hose 330 mm - 977797$100.78Available, ships in 3-6 days
2110815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
22116374Ferrari/Maserati Clip - 116374$3.20In stock
23310942Ferrari Triple Clip - 310942$3.26Special order, ships in 7-14 days
2455004285Ferrari Rear Pad Set With Spring - 55004285$4,957.98Special order, ships in 7-14 days
2470007775Ferrari Rear Pad Set With Spring - 70007775$4,487.68Special order, ships in 7-14 days
25215665Ferrari Bleed Nipple Valve - 215665$78.66Available, ships in 3-6 days
26215666Ferrari Cap For Bleed Nipple - 215666$51.62Available, ships in 3-6 days
2770003667Ferrari Set Of EPB Pads - 70003667$1,968.72Available, ships in 3-6 days
2870003493Ferrari Rear Brake Caliper Seal Kit - 70003493$108.90In stock
2970005108Ferrari Rear Pad Set With Spring - 70005108$24.13Special order, ships in 7-14 days
