Ferrari SF90 XX Stradale — [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING (diagram 0090)

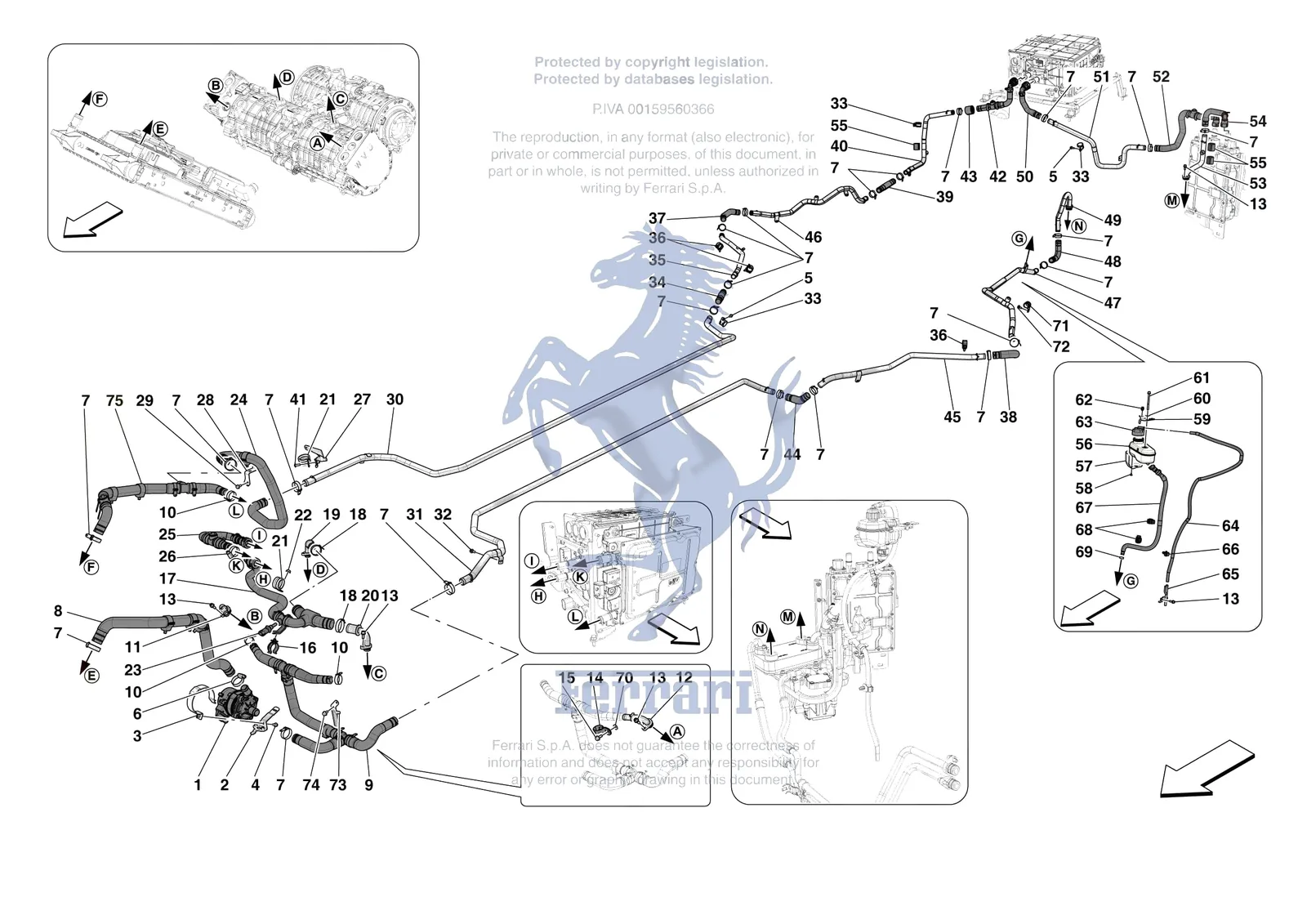

Exploded view of the [mechanical system] - d.35 - inverter cooling on the Ferrari SF90 XX Stradale, with 85 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Stradale [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
10860270Ferrari Screw Collar - 10860270$1.94Available, ships in 3-6 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
917508Ferrari Tubazione Mandata Inverter - 917508SupersededOrder 806850 instead
1908587Ferrari Pump - 908587$1,661.04Special order, ships in 7-14 days
2845312Ferrari Bracket - 845312$49.22Special order, ships in 7-14 days
3845313Ferrari U-Bolt For Water Pump - 845313$49.22Special order, ships in 7-14 days
416281824Ferrari Screw - 16281824$0.82Available, ships in 3-6 days
516285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
6268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
7262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
8951404Ferrari Hose - 951404$150.17Special order, ships in 7-14 days
9868180Ferrari Hose - 868180$418.56Special order, ships in 7-14 days
10262109Ferrari Screw Collar - 262109$2.01Available, ships in 3-6 days
11860134Ferrari RH Electric Axle Connector Fitting - 860134$155.10Special order, ships in 7-14 days
12860135Ferrari LH Electric Axle Connector Fitting - 860135$155.10Special order, ships in 7-14 days
13248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14320600Ferrari Clip - 320600$4.56Special order, ships in 7-14 days
1516297624Ferrari Screw - 16297624$1.09Special order, ships in 7-14 days
16896562Ferrari Spring Clip - 896562$1.23Special order, ships in 7-14 days
17895856Ferrari Manicotto Collegam. Inverter - 895856$861.77Special order, ships in 7-14 days
18262112Ferrari Collar - 262112SupersededOrder 262111 instead
19815157Ferrari RH Electric Axle Connector Fitting - 815157$162.48Special order, ships in 7-14 days
20815158Ferrari LH Electric Axle Connector Fitting - 815158$162.48Special order, ships in 7-14 days
2110442190Ferrari P Clip Bracket With Sheath - 10442190$1.42Available, ships in 3-6 days
2214040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
23180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
24868171Ferrari Hose - 868171$135.39Special order, ships in 7-14 days
25818747Ferrari Manicotto Dc-Dc Inverter - 818747$184.65Special order, ships in 7-14 days
26178052Ferrari Clip - 178052$3.26Available, ships in 3-6 days
26296778Ferrari Screw Collar 16- 27mm - 296778SupersededOrder 178052 instead
27961683Ferrari Bracket - 961683$64.00Special order, ships in 7-14 days
28868465Ferrari Bracket - 868465$34.44Special order, ships in 7-14 days
2916284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
30934281Ferrari Tubaz. Mandata H2O Sottopia - 934281$344.69Special order, ships in 7-14 days
31867920Ferrari Tubaz. Ritorno H2O Sottopia - 867920$344.69Special order, ships in 7-14 days
32256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
3310441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
34934887Ferrari Manicotto Uscita Tunnel - 934887$73.85Special order, ships in 7-14 days
35905356Ferrari Tubazione Mandata Da Tunnel - 905356$206.81Special order, ships in 7-14 days
36322519Ferrari CLIP - 322519Price on requestContact us for price and availability
37905357Ferrari Manicotto Di Sez. Dx - 905357$88.61Special order, ships in 7-14 days
38857679Ferrari Manicotto Di Sez. Sx - 857679$93.53Special order, ships in 7-14 days
39863677Ferrari Manicotto Uscita Tunnel - 863677$73.85Special order, ships in 7-14 days
40806850Ferrari Tubazione Mandata Inverter - 806850$320.06Special order, ships in 7-14 days
4185833800Ferrari Screw M5 x 14 TBFTX - 85833800$0.90Available, ships in 3-6 days
42862812Ferrari Manicotto Ingr. Inverter Pos - 862812$270.83Special order, ships in 7-14 days
43311096Ferrari Anello In Gomma Di26De36 L3 - 311096$10.25Special order, ships in 7-14 days
44934888Ferrari Manicotto Ritorno A Tunnel - 934888$78.76Special order, ships in 7-14 days
45934282Ferrari Tubazione Ritorno A Tunnel - 934282$221.59Special order, ships in 7-14 days
46860867Ferrari Tubazione Da Sez. A Mandata - 860867$393.93Special order, ships in 7-14 days
47860869Ferrari Tubazione Da Sez. A Ritorno - 860869$517.04Special order, ships in 7-14 days
48860877Ferrari Manicotto Uscita Scambiat - 860877$68.92Special order, ships in 7-14 days
49884681Ferrari Tubazione Da Scamb. A Sez. - 884681$214.19Special order, ships in 7-14 days
50860878Ferrari Manicotto Uscita Inverter - 860878$184.65Special order, ships in 7-14 days
51856781Ferrari Tubaz. Da Inverter A Obc - Y - 856781$228.97Special order, ships in 7-14 days
52856780Ferrari Manicotto Ingresso Obc - Yas - 856780$182.18Special order, ships in 7-14 days
53884680Ferrari Tubazione Da Obc A Scambiat - 884680$221.59Special order, ships in 7-14 days
54826127Ferrari Manicotto Uscita Obc - Yasa - 826127$147.72Special order, ships in 7-14 days
55316986Ferrari Spacer - 316986$16.37Special order, ships in 7-14 days
56828986Ferrari Inverter Cooling Tank - 828986$319.62Special order, ships in 7-14 days
57926003Ferrari Riparo Serbatoio Mt - 926003$110.78Special order, ships in 7-14 days
5815689501Ferrari Screw - 15689501$0.50Available, ships in 3-6 days
5815783204Ferrari Screw - 15783204$0.38Available, ships in 3-6 days
59927176Ferrari Emergency Cable Bracket - 927176$78.76Special order, ships in 7-14 days
6012644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
61231626Ferrari Screw M6 x 70 - 231626$1.61Available, ships in 3-6 days
6214569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
63145030Ferrari Radiator Cap - 145030$89.98In stock
64922241Ferrari Inverter Vent Pipe - 922241$320.06Special order, ships in 7-14 days
65891751Ferrari Tubo Rigido Sfiato Inv-P2 - 891751$184.65Special order, ships in 7-14 days
66262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
67874762Ferrari Manicotto Riempim. Media Te - 874762$233.89Special order, ships in 7-14 days
68259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
6913432070Ferrari/Maserati Screw Collar / Hose Clamp - 13432070$0.95In stock
7012647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
7110450690Ferrari P Clip Bracket With Sheath - 10450690$1.25Available, ships in 3-6 days
7211625724Ferrari Bolt - 11625724$1.72Available, ships in 3-6 days
73961684Ferrari Bracket - 961684$36.92Special order, ships in 7-14 days
7416296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
75868205Ferrari Radiator Outlet Hose - 868205$231.42Special order, ships in 7-14 days
