Ferrari SF90 XX Stradale — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0168)

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari SF90 XX Stradale, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

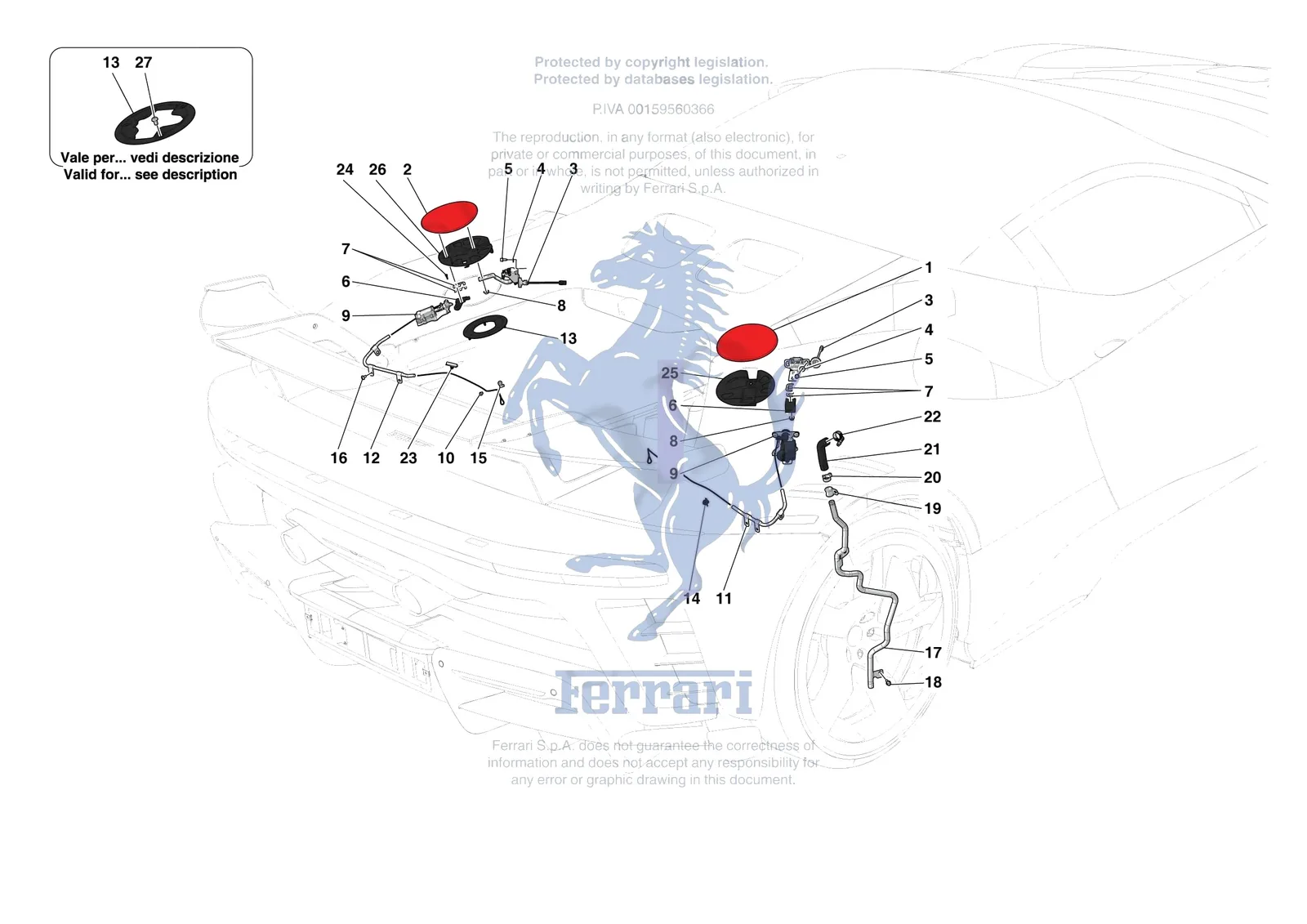

Ferrari SF90 XX Stradale [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
770709Ferrari Cerniera Cpl Sportello Carbu - 770709Price on requestContact us for price and availability
845649Ferrari Cerniera Cpl Sportello Carbu - 845649$344.69Special order, ships in 7-14 days
952321Ferrari Cerniera Cpl Sportello Carbu - 952321Price on requestContact us for price and availability
228142Ferrari Clamp 20.2-22.8x9.2 - 228142SupersededOrder 13126070 instead
248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
13127070Ferrari Collar - 13127070SupersededOrder 13126070 instead
985910449Ferrari Compl. Charging Socket Cover - 985910449SupersededOrder 985940801 instead
985910429Ferrari Compl. Fuel Filler Flap - 985910429$443.17Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
985855003Ferrari Sportello Carburantecpl Cat - 985855003$369.30Special order, ships in 7-14 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1985940815Ferrari Compl. Fuel Filler Flap - 985940815Price on requestContact us for price and availability
2985940801Ferrari Compl. Charging Socket Cover - 985940801$393.93Special order, ships in 7-14 days
3903724Ferrari Cerniera Cpl Sportello Carbu - 903724$344.69Special order, ships in 7-14 days
412638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
585158100Ferrari Screw - 85158100$2.59Special order, ships in 7-14 days
682249400Ferrari Striker Plate - 82249400$12.99Special order, ships in 7-14 days
784046900Ferrari Spacer Plate - 84046900$14.72Special order, ships in 7-14 days
813046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
955020791Ferrari Compl. Fuel Filler Flap Actuator - 55020791$170.70Special order, ships in 7-14 days
9824456Ferrari Compl. Fuel Filler Flap Actuator - 824456SupersededOrder 55020791 instead
1086009300Ferrari Passacavo D.3.6-6Mm - 86009300$1.50Special order, ships in 7-14 days
11891786Ferrari Tubo Guida Cavo Emergenza Dx - 891786$174.80Special order, ships in 7-14 days
12891785Ferrari Tubo Guida Cavo Emergenza Sx - 891785$182.18Special order, ships in 7-14 days
13912462Ferrari Compl. Charge Socket Cosmeti - 912462$39.37Special order, ships in 7-14 days
13912463Ferrari Compl. Charge Socket Cosmeti - 912463$39.37Special order, ships in 7-14 days
13904906Ferrari Mostrina Est.Presa Ricarica - 904906$46.75Special order, ships in 7-14 days
1414569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
1564215300Ferrari Door Rod Clip - 64215300$0.82Available, ships in 3-6 days
1685692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
17946759Ferrari RIGID DRAIN PIPE - 946759Price on requestContact us for price and availability
18248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
1910441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
2013126070Ferrari Collar - 13126070$1.99Available, ships in 3-6 days
21958105Ferrari Fuel Drain Hose - 958105$46.75Special order, ships in 7-14 days
22161490Ferrari Hose Clip 12 - 20 x 9 - 161490$3.91Available, ships in 3-6 days
23933552Ferrari Cable Grommet - 933552$6.32Special order, ships in 7-14 days
24796441Ferrari Rubber Pad - Fuel Filler Cap - 796441$1.99Special order, ships in 7-14 days
25868111Ferrari Inner Cover Trim Of Fuel Fil - 868111$36.92Special order, ships in 7-14 days
26868110Ferrari Inner Cover Trim Of Charge S - 868110$36.92Special order, ships in 7-14 days
27289838Ferrari Screw - 289838$3.47Special order, ships in 7-14 days
