Ferrari SF90 XX Stradale — [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING (diagram 0195)

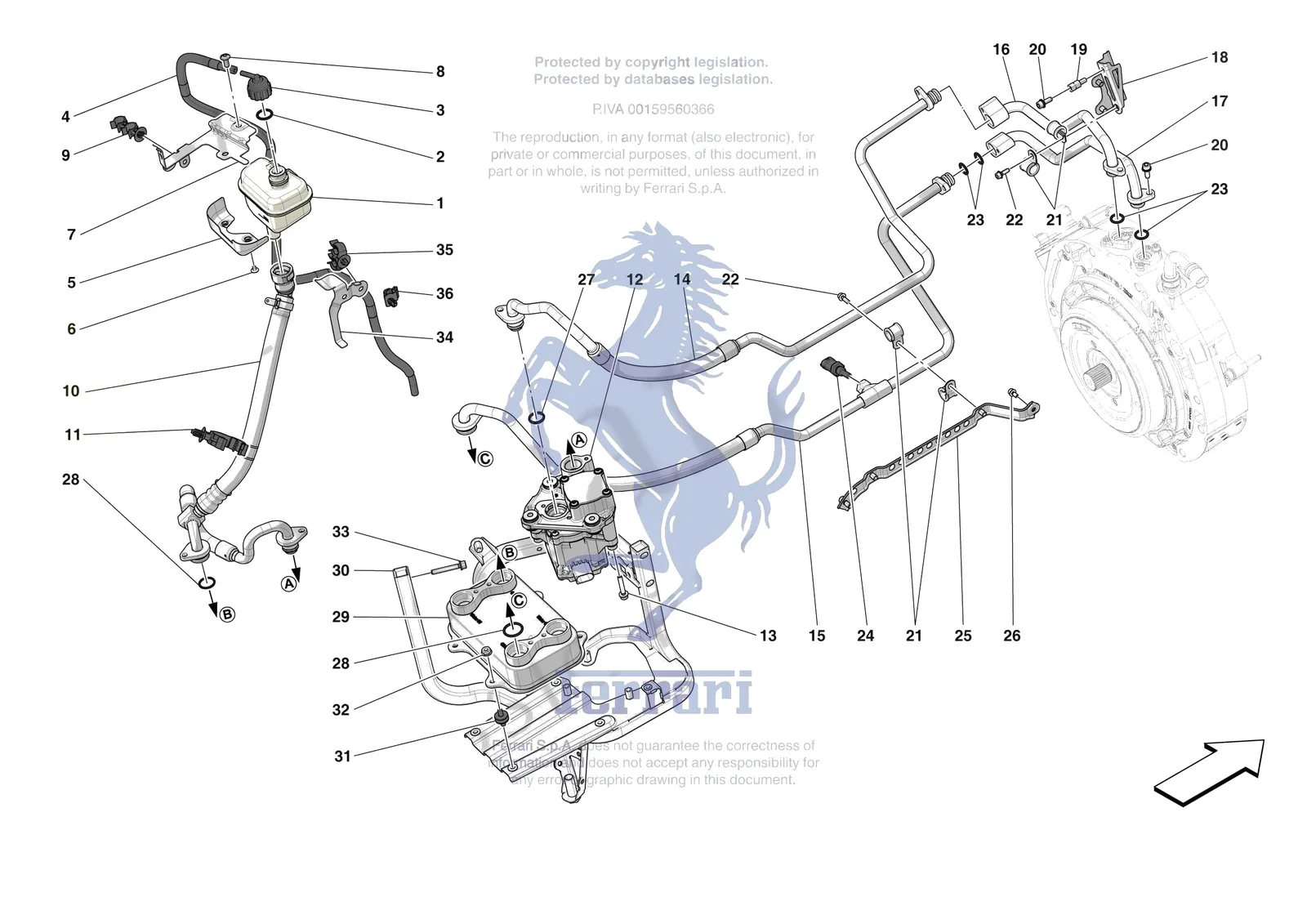

Exploded view of the [electrical system] - f.20 - electric machine cooling on the Ferrari SF90 XX Stradale, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Stradale [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
897851Ferrari Bracket on Gearbox for P2 Oil Pipes - 897851SupersededOrder 966206 instead
894449Ferrari Compl. Pump With Plate - 894449SupersededOrder 55004826 instead
918951Ferrari Heat Shield Bracket - Oil Pipes - 918951SupersededOrder 966197 instead
921379Ferrari P2 Oil Tank Bracket - 921379$66.45Special order, ships in 7-14 days
260007Ferrari Stud Bolt 6X24 H45M6X10 H1 - 260007$15.39Special order, ships in 7-14 days
807663Ferrari Tubo Olio P2 Ritorno Lato Sc - 807663Price on requestContact us for price and availability
958015Ferrari Tubo Olio P2 Ritorno Lato Sc - 958015$689.41Special order, ships in 7-14 days
1828985Ferrari P2 Cooling Oil Tank - 828985$295.43Special order, ships in 7-14 days
2922718Ferrari O-Ring - 922718$54.61Special order, ships in 7-14 days
3867659Ferrari Cap With P2 Header Tank Brea - 867659$56.52Special order, ships in 7-14 days
4986085Ferrari P2 Vent Pipe - 986085$270.83Special order, ships in 7-14 days
5925999Ferrari Riparo Serbatoio P2 - 925999$110.78Special order, ships in 7-14 days
615689501Ferrari Screw - 15689501$0.50Available, ships in 3-6 days
615783204Ferrari Screw - 15783204$0.38Available, ships in 3-6 days
7954516Ferrari P2 Oil Tank Bracket - 954516$66.45Special order, ships in 7-14 days
885740000Ferrari Screw - 85740000$2.59Special order, ships in 7-14 days
9897378Ferrari Spacer Clip - 897378$3.26Special order, ships in 7-14 days
10783583Ferrari P2 Oil Delivery Pipe From He - 783583$1,452.72Special order, ships in 7-14 days
1055043277Ferrari Tubo Olio P2 Da Scamb A Pomp - 55043277$1,354.22Special order, ships in 7-14 days
11821185Ferrari Clip D.22-26.5 - 821185$5.65Special order, ships in 7-14 days
1255004826Ferrari Compl. Pump With Plate - 55004826$1,896.77Special order, ships in 7-14 days
13231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
14827516Ferrari P2 Oil Delivery Pipe Pump S - 827516$443.17Special order, ships in 7-14 days
1455043273Ferrari Tubo Olio P2 Mandata Lato Po - 55043273$418.56Special order, ships in 7-14 days
1555043274Ferrari Tubo Olio P2 Ritorno Lato Sc - 55043274$615.54Special order, ships in 7-14 days
15967314Ferrari Tubo Olio P2 Ritorno Lato Sc - 967314$640.17Special order, ships in 7-14 days
1655043276Ferrari Tubo Olio P2 Mandata Lato Ya - 55043276$199.41Special order, ships in 7-14 days
16878917Ferrari Tubo Olio P2 Mandata Lato Ya - 878917$216.66Special order, ships in 7-14 days
1755043275Ferrari Tubo Olio P2 Ritorno Lato Ya - 55043275$204.34Special order, ships in 7-14 days
17878918Ferrari Tubo Olio P2 Ritorno Lato Ya - 878918$224.04Special order, ships in 7-14 days
18966197Ferrari Heat Shield Bracket - Oil Pipes - 966197$100.93Special order, ships in 7-14 days
19232777Ferrari Stud Bolt M6x1 H15.5 M6 - 232777$14.99Special order, ships in 7-14 days
20248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
2110441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
22256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
23286421Ferrari Gasket - 286421$1.88Available, ships in 3-6 days
24180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
25966206Ferrari Bracket on Gearbox for P2 Oil Pipes - 966206$44.29Special order, ships in 7-14 days
26231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
27216851Ferrari O-Ring - 216851$5.44Special order, ships in 7-14 days
28122791Ferrari O-Ring - 122791$4.12Available, ships in 3-6 days
29839673Ferrari Scambiatore H20 Olio Alexon - 839673$1,403.46Special order, ships in 7-14 days
30981043Ferrari Trellis For Heat Exchanger A - 981043$787.90Special order, ships in 7-14 days
31225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
3214040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
33231623Ferrari Screw M6 x 40 TCEI - 231623$1.02Available, ships in 3-6 days
34986198Ferrari Breather Pipe Orientation Bracket - 986198$66.45Special order, ships in 7-14 days
35925709Ferrari Double Clip D14-D1 - 925709$2.61Special order, ships in 7-14 days
36262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days

All SF90 XX Stradale diagrams
