Ferrari 12 Cilindri Spider — [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD (diagram 0011)

Exploded view of the [engine] - b.08.01 - cylinder heads - rh head on the Ferrari 12 Cilindri Spider, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

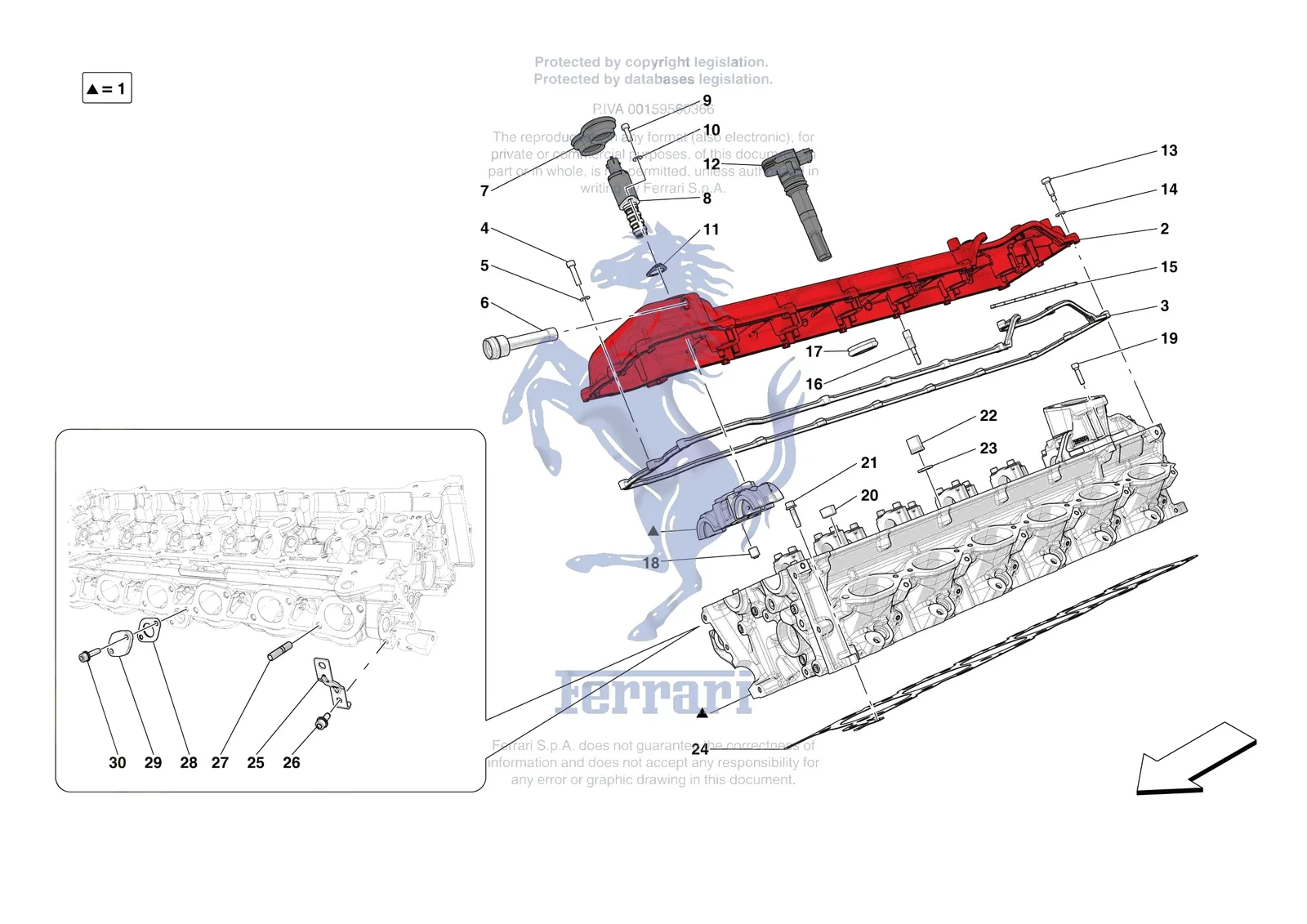

Ferrari 12 Cilindri Spider [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
248406Ferrari Ignition Coil - 248406SupersededOrder 772927 instead
290850Ferrari Ignition Coil - 290850SupersededOrder 772927 instead
337713Ferrari Ignition Coil - 337713SupersededOrder 772927 instead
255442Ferrari Oil Pressure Regulator Valve - 255442SupersededOrder 801187 instead
269227Ferrari Oil Pressure Regulator Valve - 269227SupersededOrder 801187 instead
296017Ferrari Oil Pressure Regulator Valve - 296017SupersededOrder 801187 instead
820627Ferrari RH Cylinder Head - 820627SupersededOrder 950246 instead
243803Ferrari RH Head-Crankcase Gasket - 243803SupersededOrder 324013 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
231359Ferrari Single Ignition Coil - 231359SupersededOrder 772927 instead
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1950246Ferrari RH Cylinder Head - 950246$8,035.87Special order, ships in 7-14 days
2828992Ferrari RH Cylinder Head Cover - 828992$1,032.68Special order, ships in 7-14 days
3243800Ferrari Valve Cover Gasket - Right - 243800$128.35In stock
3AW3440000Ferrari Valve Cover Gasket Set - AW3440000$244.90In stock
4157218Ferrari Bolt M6 x 25 - 157218$1.17Available, ships in 3-6 days
511197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
6317962Ferrari Connector M14 x 1.5 - 317962$46.69Special order, ships in 7-14 days
7229353Ferrari Solenoid Valve Gasket - 229353$24.42In stock
8801187Ferrari Oil Pressure Regulator Valve - 801187$368.79Available, ships in 3-6 days
914304221Ferrari Screw 5X16 - 14304221$0.19Special order, ships in 7-14 days
1011181574Ferrari Washer - 11181574$0.06Available, ships in 3-6 days
11921255Ferrari DAMPER PLATE FOR OCV VALVE - 921255Price on requestContact us for price and availability
12772927Ferrari Ignition Coil - 772927$120.98In stock
13293278Ferrari Screw - 293278$30.57Available, ships in 3-6 days
1411198074Ferrari/Maserati Washer - 11198074$0.14In stock
15239614Ferrari Gasket - 239614$10.29Available, ships in 3-6 days
16208765Ferrari Stud Bolt - 208765$12.21Available, ships in 3-6 days
17223982Ferrari Spark Plug Tube Gasket - 223982$2.63In stock
18200458Ferrari/Maserati Non Return Valve - 200458$13.08In stock
19239502Ferrari Screw 6x25 - 239502$1.17Available, ships in 3-6 days
20127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
21231620Ferrari/Maserati Screw - 231620$0.58In stock
22183524Ferrari Cylinder Head Nut - 183524$6.75Special order, ships in 7-14 days
23136270Ferrari Washer - 136270$8.12Available, ships in 3-6 days
24324013Ferrari RH Head-Crankcase Gasket - 324013$442.56Special order, ships in 7-14 days
25866609Ferrari Heat Shield Mounting Bracket - 866609$39.31Special order, ships in 7-14 days
26231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
27211641Ferrari Exhaust Manifold Stud - 211641$2.00In stock
28202980Ferrari Gasket - 202980$4.89Available, ships in 3-6 days
29984306Ferrari Air Cap - 984306$36.86Special order, ships in 7-14 days
30231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days

All 12 Cilindri Spider diagrams
