Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Crankcase And Cylinder Heads (diagram 001)

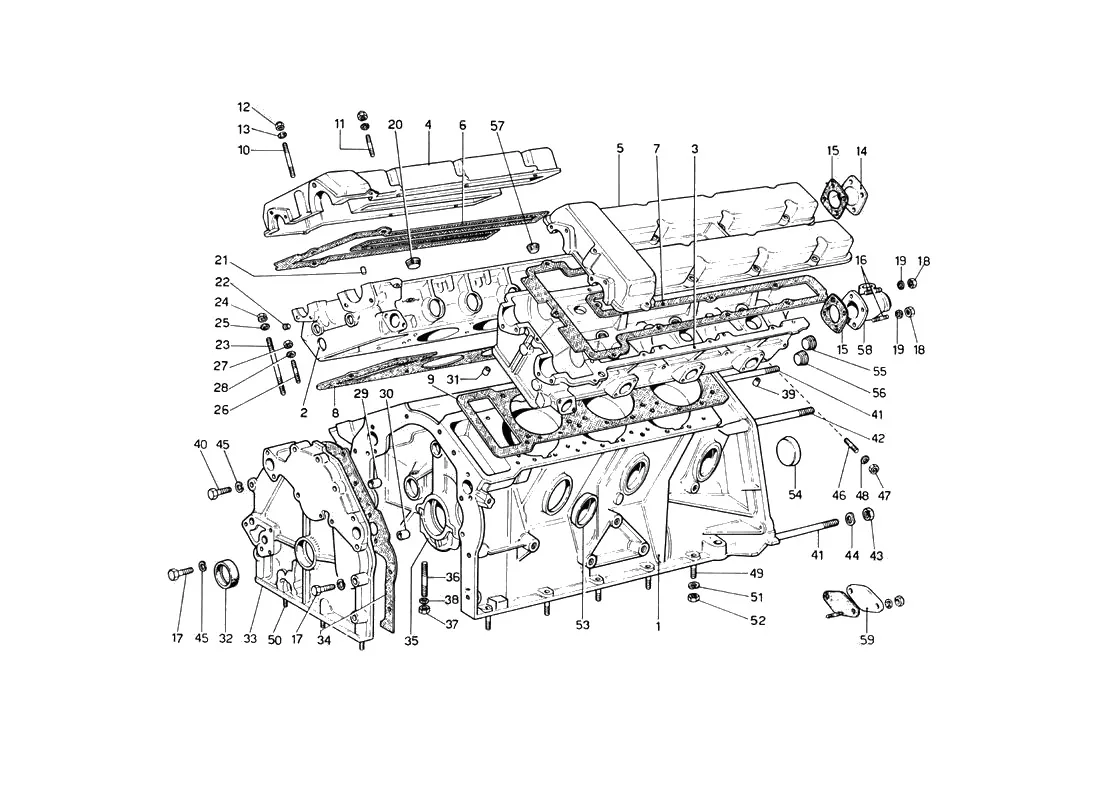

Exploded view of the crankcase and cylinder heads on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 103 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Crankcase And Cylinder Heads exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
19101189Ferrari Engine Block 246 GT/S - 9101189Price on requestContact us to order
19100968Ferrari Crankcase Casting - 9100968Price on requestContact us for price and availability
19101036Ferrari Crankcase Casting - 9101036Price on requestContact us for price and availability
24261130Ferrari 246 GT/S RH Cylinder Head - 4261130$999.00Contact us
29162651Ferrari 246 GT/S RH Cylinder Head - 9162651Price on requestContact us for price and availability
39162221Ferrari LH Cylinder Head Complete 246 GT/S - 9162221Price on requestContact us
39162652Ferrari LH Cylinder Head Complete 246 GT/S - 9162652Price on requestContact us for price and availability
44260948Ferrari 246 RH Cam Cover - 4260948Price on requestContact us
49162572Ferrari RH Cam Cover - 9162572Price on requestContact us for price and availability
54260950Ferrari 246 LH Cam Cover - 4260950Price on requestContact us
59162571Ferrari LH Cam Cover - 9162571Price on requestContact us for price and availability
6AW3246000Ferrari 246 Cam Cover Gasket Kit - AW3246000$163.90In stock
64146624Ferrari 206/246 Cam Cover Gasket - 4146624$74.99In stock
74146626Ferrari 206/246 Cam Cover Gasket - 4146626$74.99In stock
895100122Ferrari 246 Full Engine Gasket Set - 95100122$1,098.41In stock
84206571/2Ferrari 246 Cylinder Head Gasket Pair - 4206571/2$819.50In stock
84206571Ferrari 246Gt/S R/H Head Gasket - 4206571$545.83Contact us for price and availability
94206572Ferrari 246Gt/S L/H Head Gasket - 4206572$526.49Available, ships in 3-6 days
1013542021Ferrari Stud - 13542021SupersededOrder 13542024 instead
1013542024Ferrari Stud 6x12 Stem 55 - 13542024$52.50Available, ships in 3-6 days
1113541124Ferrari Stud 6x12 Stem 20 - 13541124$43.68Available, ships in 3-6 days
1113541121Ferrari Stud 6x12mm - 13541121SupersededOrder 13541124 instead
12100436Ferrari Water Pump Nut - 100436$6.44In stock
1214054511Ferrari Nyloc Nut M6 x 12 - 14054511SupersededOrder 14054513 instead
1311197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
1311197773Ferrari Washer - 11197773SupersededOrder 11197774 instead
144146627Ferrari Rear Cover - 4146627Price on requestSpecial order, ships in 7-14 days
149162570Ferrari End Cap - 9162570Price on requestContact us for price and availability
154146591Ferrari Gasket - 4146591$7.60Available, ships in 3-6 days
15147633Ferrari End Plate Gasket - 147633$7.28Available, ships in 3-6 days
1716044124Ferrari Screw M8 x 45 - 16044124$1.02Available, ships in 3-6 days
1716044121Ferrari Screw - 16044121$1.02Available, ships in 3-6 days
1815896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
20163528Ferrari Threaded Plug D. 20 x 11 - 163528$7.86Available, ships in 3-6 days
2010268450Ferrari Core Plug TF4 20x10mm 1.5 - 10268450SupersededOrder 163528 instead
214147337Ferrari Roller Bearing - 4147337Price on requestContact us for price and availability
2210269550Ferrari Threaded Plug 14mm - 10269550$6.02Available, ships in 3-6 days
234206573Ferrari 246GT/S Cylinder Head Stud - 4206573$46.15Available, ships in 3-6 days
244146619Ferrari Cylinder Head Nut - 4146619$30.07Available, ships in 3-6 days
2492399Ferrari Nut - 92399$23.36Available, ships in 3-6 days
254146618Ferrari Washer - 4146618$7.43Available, ships in 3-6 days
2613516924Ferrari Stud M8 x 12 Gambo 22 - 13516924$4.56Available, ships in 3-6 days
2613516921Ferrari LH Threaded Stud - 13516921SupersededOrder 13516924 instead
2716100824Ferrari/Maserati Nut - 16100824$0.30In stock
2716100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
2811198074Ferrari/Maserati Washer - 11198074$0.14In stock
2811198073Ferrari Washer - 11198073SupersededOrder 11198074 instead
294146562Ferrari Dowel - 4146562$3.72Special order, ships in 7-14 days
30102704Ferrari Dowel - 102704$6.10Available, ships in 3-6 days
304146563Ferrari Dowel Bolt - 4146563SupersededOrder 102704 instead
314146615Ferrari Locating Dowel - 4146615Price on requestSpecial order, ships in 7-14 days
3240001080Ferrari Oil Seal - 40001080$22.40Available, ships in 3-6 days
33220604Ferrari Front Cover - 220604Price on requestContact us for price and availability
33220809Ferrari Front Cover Complete - 220809Price on requestContact us for price and availability
344234147Ferrari 246 Front Cover Gasket - 4234147$38.80In stock
354206558Ferrari Front Mains Cap - 4206558Price on requestContact us for price and availability
354206556Ferrari Centre Mains Cap - 4206556Price on requestContact us for price and availability
354206557Ferrari Rear Mains Cap - 4206557Price on requestContact us for price and availability
364218020Ferrari Stud - 4218020$68.29Available, ships in 3-6 days
374218021Ferrari Nut - 4218021Price on requestContact us for price and availability
384146545Ferrari Washer - 4146545$6.48Available, ships in 3-6 days
394146614Ferrari Locating Dowel - 4146614$20.78Available, ships in 3-6 days
4016044024Ferrari Bolt - 16044024$0.72In stock
4016044021Ferrari Bolt - 16044021SupersededOrder 16044024 instead
4195553Ferrari Stud - 95553$41.75Available, ships in 3-6 days
4295551Ferrari Block Stud - 95551Price on requestContact us for price and availability
4316101511Ferrari Nut - 16101511$2.30Available, ships in 3-6 days
4412601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
4412646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
4410413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
4613543524Ferrari Stud Bolt M8x16 -Shank length 25- - 13543524$9.16Available, ships in 3-6 days
4613543521Ferrari Stud - 13543521SupersededOrder 13543524 instead
47100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
47114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
48127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
4810516671Ferrari Washer - 10516671SupersededOrder 127496 instead
4913517220Ferrari Stud Long - 13517220Price on requestContact us for price and availability
5013543321Ferrari Short Stud - 13543321SupersededOrder 13543324 instead
5013543324Ferrari Stud M8 x 16 - Shank 20mm - 13543324$11.58Available, ships in 3-6 days
5111198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
5213516824Ferrari/Maserati Stud - 13516824$0.58In stock
5314329201Ferrari Core Plug - 14329201$16.83Special order, ships in 7-14 days
5414329901Ferrari Plug Core - 14329901$24.05Special order, ships in 7-14 days
5510270150Ferrari Plug - 10270150Price on requestContact us for price and availability
5610269950Ferrari Plug - 10269950$17.42Available, ships in 3-6 days
5710268350Ferrari Core Plug (8mm x 55mm) - 10268350$13.17Available, ships in 3-6 days
589162199Ferrari Casing - 9162199Price on requestContact us for price and availability
599162200Ferrari Flange - 9162200Price on requestContact us for price and availability
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
9162654Ferrari LH Cylinder Head Complete - 9162654Price on requestContact us for price and availability
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
95304Ferrari Nut - 95304SupersededOrder 114748 instead
95124Ferrari Plug - 95124Price on requestContact us for price and availability
119631Ferrari Screw - 119631SupersededOrder 16044024 instead
13517224Ferrari Stud Long - 13517224Price on requestContact us for price and availability
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
-13516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
