Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Flywheel And Intermediate Gearbox Housing (diagram 004)

Exploded view of the flywheel and intermediate gearbox housing on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 47 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

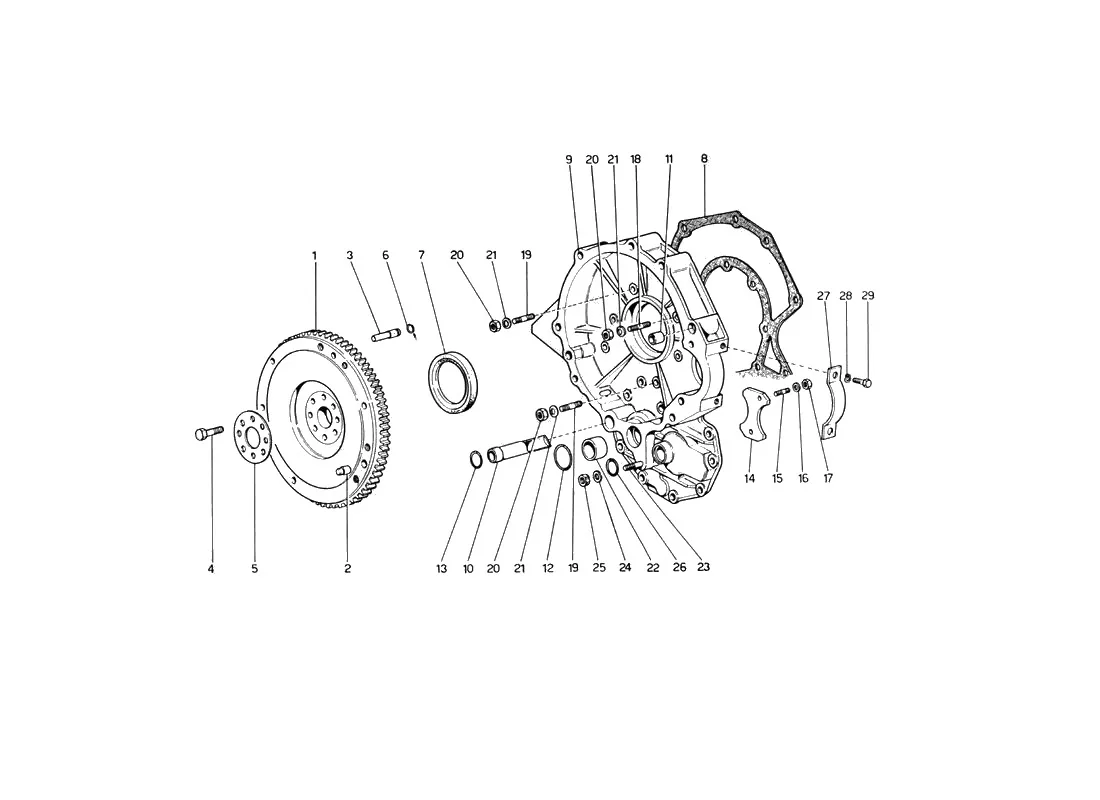

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Flywheel And Intermediate Gearbox Housing exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
112721Ferrari Flywheel - 12721$4,518.35Available, ships in 3-6 days
112821Ferrari Flywheel - 12821$4,631.38Available, ships in 3-6 days
2500644Ferrari Flywheel Dowel Peg - 500644$35.14Available, ships in 3-6 days
312831Ferrari Dowel - 12831$21.52Available, ships in 3-6 days
4201755Ferrari Clutch/Flywheel Bolt - 201755$3.14In stock
4103875Ferrari Flywheel Bolt - 103875SupersededOrder 201755 instead
5103876Ferrari Flywheel Washer - 103876$19.22Available, ships in 3-6 days
613400576Ferrari Ring - 13400576Price on requestContact us for price and availability
7200323Ferrari Rear Crankshaft Seal - 200323$43.13In stock
7106244Ferrari Oil Seal - 106244SupersededOrder 200323 instead
8500729Ferrari 246 Rear Engine Bell Housing Gasket - 500729$75.90In stock
9500714Ferrari Intermediate Housing - 500714Price on requestContact us for price and availability
9500786Ferrari Intermediate Housing - 500786Price on requestContact us for price and availability
10500726Ferrari Oil Tranfser tube - 500726Price on requestContact us for price and availability
11500725Ferrari Dowel - 500725$33.75Available, ships in 3-6 days
12104756Ferrari Clutch Pressure Plate O-Ring - 104756$10.21In stock
13103775Ferrari Clutch O-Ring - 103775$1.75In stock
14104200Ferrari Lock Plate - 104200$33.27Available, ships in 3-6 days
1511500120Ferrari Stud - 11500120SupersededOrder 11500124 instead
16127494Ferrari Lock Washer - 127494$0.50In stock
1610516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
1715896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
1811500620Ferrari Stud Bolt - 11500620SupersededOrder 11500624 instead
1911500810Ferrari Stud - 11500810Price on requestContact us for price and availability
2111197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
2111197771Ferrari Washer - 11197771SupersededOrder 11197774 instead
22500747Ferrari Bush - 500747$50.56Available, ships in 3-6 days
2313517020Ferrari Stud - 13517020Price on requestContact us for price and availability
2411198074Ferrari/Maserati Washer - 11198074$0.14In stock
2411198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
2516100824Ferrari/Maserati Nut - 16100824$0.30In stock
2516100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
26104214Ferrari Clutch O-Ring - 104214$2.48In stock
27500746Ferrari Plate - 500746$16.14Available, ships in 3-6 days
28127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
2810516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
2916043021Ferrari Screw M8 x 12 - 16043021$0.34Available, ships in 3-6 days
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
163989Ferrari Rear Main Crankshaft Seal - 163989SupersededOrder 200323 instead
136527Ferrari Rear Main Oil Seal - 136527SupersededOrder 200323 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
11500124Ferrari Stud - 11500124$6.61Available, ships in 3-6 days
13540820Ferrari Stud - 13540820SupersededOrder 11500124 instead
11500621Ferrari Stud 6 x 9 Stem 25 - 11500621SupersededOrder 11500624 instead
11500121Ferrari Threaded Stud - 11500121SupersededOrder 11500124 instead
13517021Ferrari Threaded Stud 8x12 Stem 25mm - 13517021$5.61Available, ships in 3-6 days
