Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Cooling System (diagram 014)

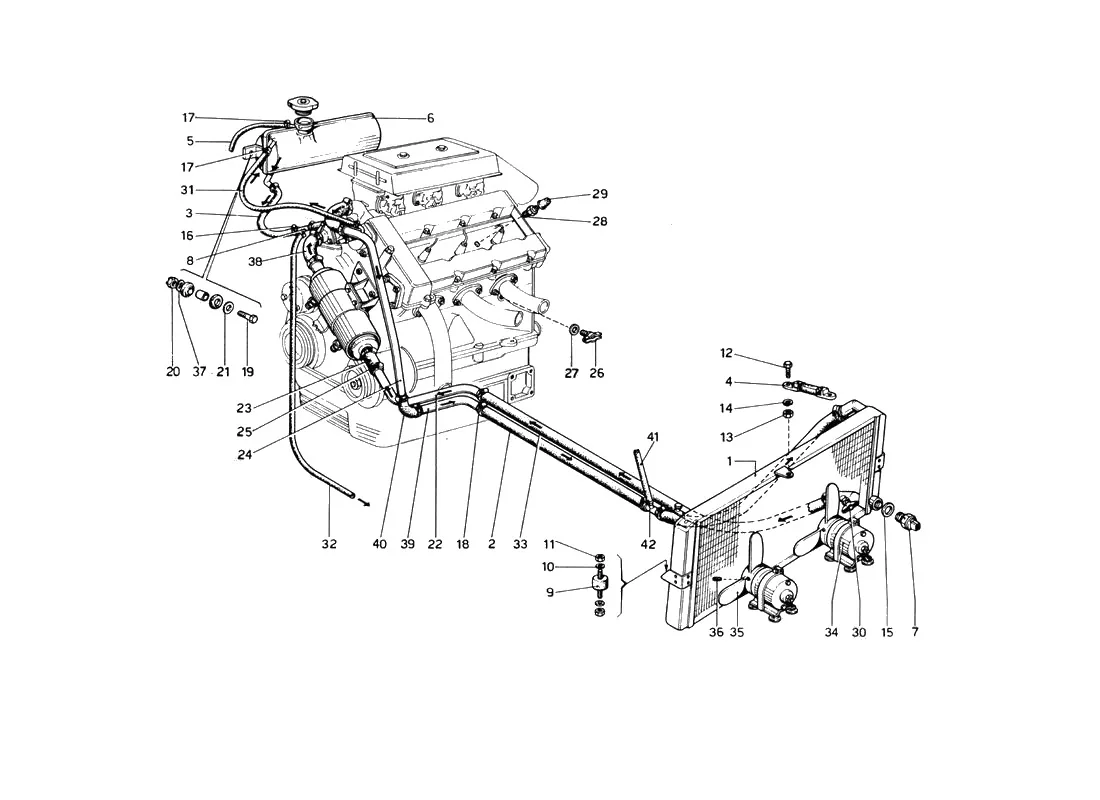

Exploded view of the cooling system on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Cooling System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1800314Ferrari 246 GT/S Water Radiator - 800314$4,622.80Available, ships in 3-6 days
1800314/XFerrari 246 GT/S Water Radiator - 800314/X$4,595.60Available, ships in 3-6 days
2800199Ferrari Radiator Rubber Hose 246 - 800199$226.99Available, ships in 3-6 days
3800311Ferrari Water Hose - 800311Price on requestContact us for price and availability
4101497Ferrari Exhaust / Radiator Hanger Strap - 101497$16.23In stock
5800204Ferrari Part Search Results - 800204$565.49Special order, ships in 7-14 days
6104523Ferrari 206/246 Coolant Tank - 104523$1,370.60In stock
7168008Ferrari Radiator Fan Switch - 168008$68.75In stock
7101507Ferrari Radiator Thermo Sender - 101507SupersededOrder 168008 instead
8103470Ferrari Union - 103470$81.19Available, ships in 3-6 days
9101495Ferrari Support Mount - 101495$20.25In stock
1010519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
1010519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
11104030Ferrari/Maserati Nut - 104030$0.88In stock
1116104121Ferrari Nyloc Nut - 16104121SupersededOrder 104030 instead
1210902124Ferrari Screw - 10902124$0.29In stock
1295880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
1315896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
14127494Ferrari Lock Washer - 127494$0.50In stock
1410516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
15101508Ferrari Gasket D. 22.5 - 30 x 1.5 - 101508$2.38Available, ships in 3-6 days
1613000590Ferrari Hose Clip 25 - 40mm - 13000590$1.48Available, ships in 3-6 days
1713000190Ferrari Hose Clip 10-16mm - 13000190$1.09Available, ships in 3-6 days
17104879Ferrari Clip - 104879SupersededOrder 13000190 instead
18101292Ferrari Hose Clip 25-45 - 101292Price on requestContact us for price and availability
1995880511Ferrari Bolt 8x25 UNI5740 - 95880511$3.28Available, ships in 3-6 days
20103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
2195129Ferrari Washer - 95129Price on requestContact us for price and availability
2226825Ferrari Water Hose - 26825$440.14Available, ships in 3-6 days
2226793Ferrari Water Pipe - 26793Price on requestContact us for price and availability
23AW5246000Ferrari 246 Silicone Cooling Hose Kit - AW5246000$218.90In stock
2326795Ferrari Water Hose - 26795$66.02Available, ships in 3-6 days
2326826Ferrari Water Hose - 26826$144.92Available, ships in 3-6 days
2426822Ferrari Water Pipe - 26822$460.24Available, ships in 3-6 days
2426819Ferrari Water Pipe - 26819$810.96Available, ships in 3-6 days
26103948Ferrari Radiator Drain Tap 14x1.5mm - 103948$67.42Available, ships in 3-6 days
26103948/AFerrari Radiator Drain Tap 14x1 mm - 103948/A$69.57Available, ships in 3-6 days
2710282458Ferrari Washer - 10282458Price on requestContact us for price and availability
28659637990Ferrari Sender - 659637990Price on requestContact us for price and availability
30101488Ferrari Radiator Drain Tap - 101488$108.79In stock
30101488/UFerrari Radiator Drain Tap - 101488/U$234.58Available, ships in 3-6 days
31800310Ferrari Hose - 800310Price on requestContact us for price and availability
32401121Ferrari Water Hose - 401121Price on requestContact us for price and availability
32401181Ferrari Water Hose - 401181Price on requestContact us for price and availability
33800309Ferrari Part Search Results - 800309$709.82Special order, ships in 7-14 days
34103474Ferrari Fan Motor - 103474Price on requestContact us for price and availability
3536128Ferrari Fan Blade - 36128$130.22Available, ships in 3-6 days
3536160Ferrari Fan Blade - 36160$130.22Available, ships in 3-6 days
3536164Ferrari Fan Blade - 36164SupersededOrder 107175 instead
3693093Ferrari Grub Screw - 93093$1.23Available, ships in 3-6 days
37127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
3710516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
3826796Ferrari Water Hose - 26796$68.92Available, ships in 3-6 days
3826828Ferrari Water Hose - 26828$193.24Available, ships in 3-6 days
3926823Ferrari Metal Water Hose Chas02930-> - 26823$513.51Available, ships in 3-6 days
3926823/SFerrari Stainless Steel Water Hose Chas 02930-> - 26823/S$510.50Available, ships in 3-6 days
4026824Ferrari Water Hose - 26824$53.30Available, ships in 3-6 days
41401010Ferrari Heater Hose - 401010Price on requestContact us for price and availability
41401611Ferrari Heater Hose - 401611Price on requestContact us for price and availability
42401011Ferrari 246GT/S Water Pipe T Piece - 401011$99.75Available, ships in 3-6 days
10902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
110916Ferrari Fan Blade (4-Blade) - 110916SupersededOrder 107175 instead
109826Ferrari Fan Motor - 109826$483.73Available, ships in 3-6 days
109852Ferrari Fan Motor - 109852Price on requestContact us for price and availability
12179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
10300640Ferrari Plug - 10300640$148.76Available, ships in 3-6 days
106347Ferrari RH Hose From Faucet To Heater - 106347Price on requestContact us for price and availability
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
875915Ferrari Tap - 875915Price on requestContact us for price and availability
800352Ferrari Thermo Switch - 800352SupersededOrder 168008 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
