Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Water Pump And Pipes (diagram 015)

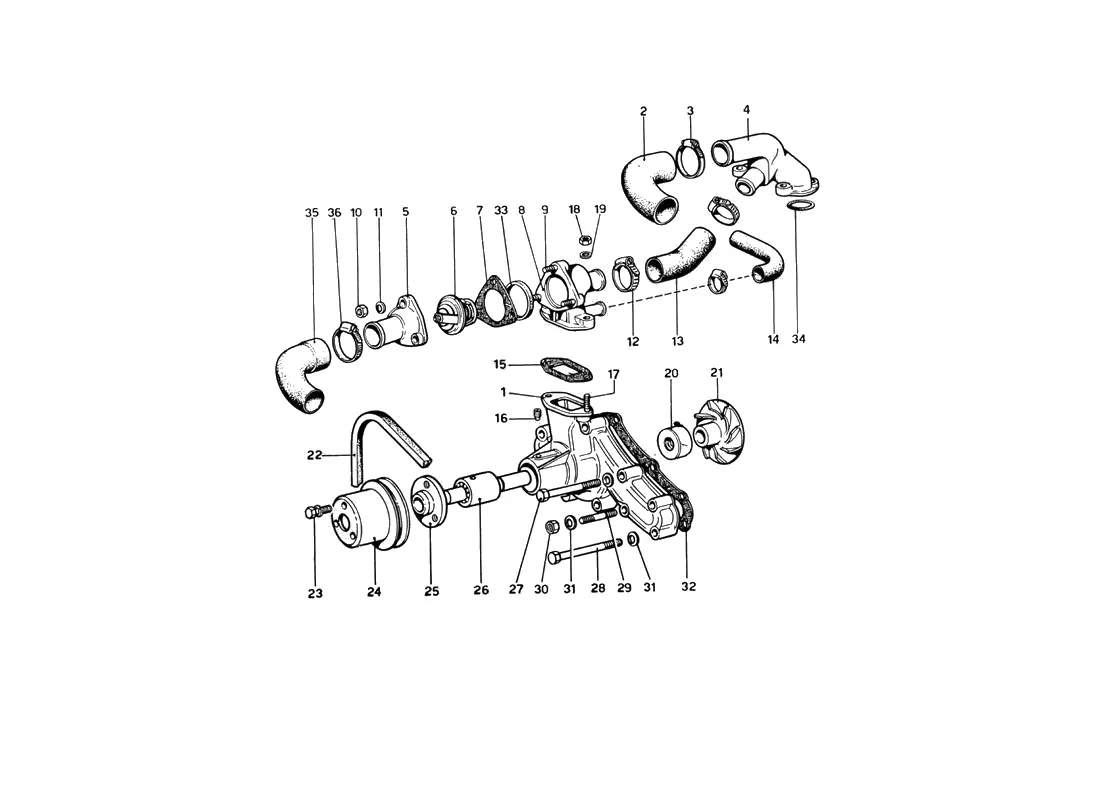

Exploded view of the water pump and pipes on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/015.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 246WPKIT | Ferrari 246 Water Pump Rebuild Kit - 246WPKIT | $272.60 | In stock |
| 1 | 26846 | Ferrari 246 Water Pump - 26846 | $647.90 | In stock |
| 1 | AW5246001 | Ferrari 246 Silicone Cooling Hose & Water Pump Kit - AW5246001 | $822.80 | In stock |
| 2 | 26796 | Ferrari Water Hose - 26796 | $68.92 | Available, ships in 3-6 days |
| 2 | 26829 | Ferrari Water Hose Silicone - 26829 | $69.33 | Available, ships in 3-6 days |
| 3 | 13000690 | Ferrari/Maserati Hose Clamp - 13000690 | $1.49 | In stock |
| 4 | 4234160 | Ferrari Water Manifold(Between Heads) - 4234160 | $378.99 | Available, ships in 3-6 days |
| 5 | 4234162 | Ferrari 246 Thermostat Housing - 4234162 | $128.90 | In stock |
| 6 | 4222883 | Ferrari 246 Thermostat - 4222883 | $105.47 | In stock |
| 7 | 105189 | Ferrari Thermostat Gasket - 105189 | $5.50 | In stock |
| 8 | 4234165 | Ferrari Thermostat Housing - 4234165 | Superseded | Order 4234164 instead |
| 8 | 4234164 | Ferrari 246GT/S Thermostat Housing - 4234164 | $556.08 | Available, ships in 3-6 days |
| 9 | 13541124 | Ferrari Stud 6x12 Stem 20 - 13541124 | $43.68 | Available, ships in 3-6 days |
| 9 | 13541121 | Ferrari Stud 6x12mm - 13541121 | Superseded | Order 13541124 instead |
| 10 | 15896211 | Ferrari Nut M6 x 5 - 15896211 | $0.13 | Available, ships in 3-6 days |
| 11 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 11 | 11197773 | Ferrari Washer - 11197773 | Superseded | Order 11197774 instead |
| 12 | 12174090 | Ferrari Hose Clip 32-50 - 12174090 | Superseded | Order 13000690 instead |
| 13 | AW5322000 | Ferrari 308 2V FI Cooling Hose Kit - AW5322000 | $184.80 | In stock |
| 13 | 4234166 | Ferrari 246 Coolant Hose - 4234166 | $45.65 | In stock |
| 14 | 800304 | Ferrari 246 Cooling Hose - 800304 | $53.74 | In stock |
| 15 | 4157423 | Ferrari 246 Water Pump Outlet Gasket - 4157423 | $6.55 | In stock |
| 16 | 13746310 | Ferrari Screw - 13746310 | $1.04 | Available, ships in 3-6 days |
| 17 | 13517021 | Ferrari Threaded Stud 8x12 Stem 25mm - 13517021 | $5.61 | Available, ships in 3-6 days |
| 18 | 16100824 | Ferrari/Maserati Nut - 16100824 | $0.30 | In stock |
| 18 | 16100811 | Ferrari Nut 8x6.5mm - 16100811 | Superseded | Order 16100824 instead |
| 19 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 19 | 11198073 | Ferrari Washer - 11198073 | Superseded | Order 11198074 instead |
| 20 | 4138766 | Ferrari 206/246 Water Pump Seal-4138766 | $38.50 | In stock |
| 21 | 4157421 | Ferrari 246 Water Pump Impeller-4157421 | $174.90 | In stock |
| 22 | 300060 | Ferrari Alternator Belt - 300060 | $80.27 | Available, ships in 3-6 days |
| 23 | 13825811 | Ferrari Bolt - 13825811 | Price on request | Contact us for price and availability |
| 24 | 26784 | Ferrari Pulley - 26784 | Price on request | Contact us for price and availability |
| 25 | 4156848 | Ferrari 246GT/S Water Pump Drive Flange - 4156848 | $52.69 | Available, ships in 3-6 days |
| 26 | 4025548 | Ferrari 206/246 Water Pump Shaft Bearing-4025548 | $63.90 | In stock |
| 27 | 16044524 | Ferrari 430/F430 Exhaust Bolt - 16044524 | $1.99 | In stock |
| 27 | 16044521 | Ferrari Screw - 16044521 | $1.86 | Available, ships in 3-6 days |
| 28 | 16044721 | Ferrari Bolt - 16044721 | $1.94 | Available, ships in 3-6 days |
| 29 | 13517421 | Ferrari Stud - 13517421 | $50.75 | Special order, ships in 7-14 days |
| 32 | 4234159 | Ferrari 246 Water Pump Gasket - 4234159 | $15.40 | In stock |
| 33 | 105192 | Ferrari Thermostat O-Ring - 105192 | $5.45 | In stock |
| 34 | 95860070 | Ferrari O-Ring - 95860070 | $4.91 | Available, ships in 3-6 days |
| 35 | 26828 | Ferrari Water Hose - 26828 | $193.24 | Available, ships in 3-6 days |
| 36 | 102958 | Ferrari Jubilee Clip - 102958 | Price on request | Contact us for price and availability |
| 105303 | Ferrari Clamp - 105303 | Superseded | Order 13000690 instead | |
| 12180090 | Ferrari Clamp - 12180090 | $1.34 | Available, ships in 3-6 days | |
| 12173990 | Ferrari Clip - 12173990 | Superseded | Order 13000690 instead | |
| 12173890 | Ferrari Fuel Hose Clip 25-40 - 12173890 | $1.48 | Available, ships in 3-6 days | |
| 108785 | Ferrari Hose Clip - 108785 | $3.26 | Available, ships in 3-6 days | |
| 12177090 | Ferrari Hose Clip 32-50 - 12177090 | Superseded | Order 13000690 instead | |
| 100441 | Ferrari Jubilee Clip - 100441 | Price on request | Contact us for price and availability | |
| 16100812 | Ferrari Nut - 16100812 | Superseded | Order 16100824 instead | |
| 16100814 | Ferrari Nut - 16100814 | Superseded | Order 16100824 instead | |
| 13517020 | Ferrari Stud - 13517020 | Price on request | Contact us for price and availability | |
| 13517420 | Ferrari Stud - 13517420 | Price on request | Contact us for price and availability |
