Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Clutch Disengagement (diagram 017)

Exploded view of the clutch disengagement on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

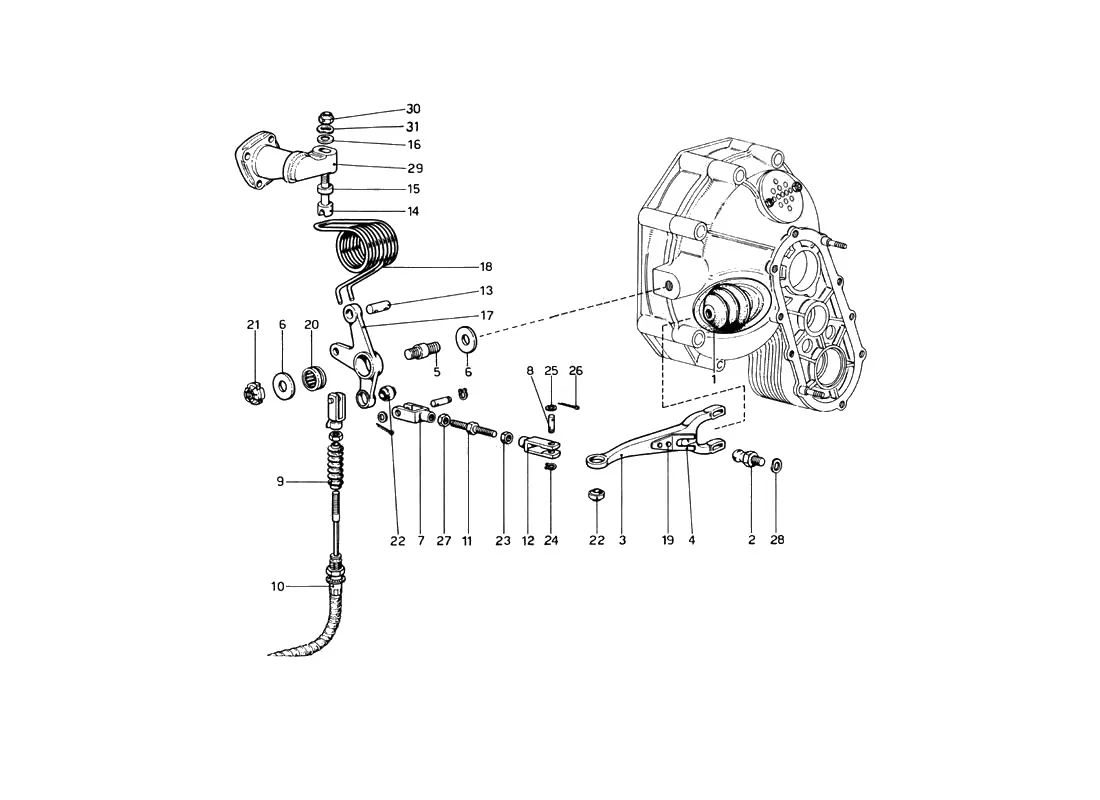

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Clutch Disengagement exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1500720Ferrari Clutch Arm Dust Cover - 500720$76.53Available, ships in 3-6 days
2500804Ferrari Pivot - 500804Price on requestContact us for price and availability
3500719Ferrari 246Gt L Clutch Fork - 500719Price on requestSpecial order, ships in 7-14 days
4100851Ferrari Clutch Fork Spring - 100851$91.09Available, ships in 3-6 days
5101601Ferrari Pin - 101601$191.55Available, ships in 3-6 days
6100853Ferrari Washer - 100853Price on requestContact us for price and availability
7103238Ferrari Fork - 103238$49.37Available, ships in 3-6 days
8103218Ferrari Clevis Pin - 103218$37.56Available, ships in 3-6 days
8100857Ferrari Pin - 100857SupersededOrder 103218 instead
9100858Ferrari Clutch Cable Boot - 100858$49.70In stock
10500618Ferrari 246 Clutch Cable LHD - 500618$977.90In stock
11500630Ferrari Adjuster - 500630Price on requestSpecial order, ships in 7-14 days
11500795Ferrari Adjuster - 500795Price on requestSpecial order, ships in 7-14 days
12100855Ferrari Fork LH Thread - 100855Price on requestContact us for price and availability
13101321Ferrari Peg - 101321Price on requestSpecial order, ships in 7-14 days
14500649Ferrari Bolt - 500649$11.16Available, ships in 3-6 days
14500649/KFerrari Clutch Tension Adjuster Kit - 500649/K$123.64Available, ships in 3-6 days
15500650Ferrari Spacer - 500650$9.17Available, ships in 3-6 days
1612646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
17500652Ferrari Clutch Lever - 500652Price on requestSpecial order, ships in 7-14 days
18101319Ferrari Clutch Return Spring - 101319$75.25Available, ships in 3-6 days
1995930221Ferrari Rivet - 95930221Price on requestSpecial order, ships in 7-14 days
20103223Ferrari Roller Bearing - 103223$52.26Available, ships in 3-6 days
21103225Ferrari Lock Ring - 103225$54.23Available, ships in 3-6 days
21103225/AFerrari Lock Ring (Nyloc) - 103225/A$54.23Available, ships in 3-6 days
22100860Ferrari Clutch Uniball Bearing - 100860$108.90In stock
23100861Ferrari RH Thread Nut - 100861$13.55Available, ships in 3-6 days
24984988Ferrari Circlip - 984988$2.00In stock
2411065476Ferrari Circlip - 11065476SupersededOrder 984988 instead
2510519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
2513550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
2610734101Ferrari Split pin - 10734101Price on requestSpecial order, ships in 7-14 days
2795900713Ferrari LH Thread Nut - 95900713Price on requestSpecial order, ships in 7-14 days
28500728Ferrari Washer - 500728$9.39Available, ships in 3-6 days
299162199Ferrari Casing - 9162199Price on requestContact us for price and availability
3016100824Ferrari/Maserati Nut - 16100824$0.30In stock
3016100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
31127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
3110516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
500631Ferrari Cable End - 500631Price on requestContact us for price and availability
11065470Ferrari Circlip - 11065470SupersededOrder 984988 instead
11065474Ferrari Circlip - 11065474SupersededOrder 984988 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
500648Ferrari Peg - 500648Price on requestContact us for price and availability
10734104Ferrari Pin - 10734104Price on requestContact us for price and availability
100852Ferrari Pin Thread 14mm - 100852$88.26Special order, ships in 7-14 days
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
105688Ferrari Washer - 105688Price on requestContact us for price and availability
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
500496Ferrari Washer - 500496Price on requestContact us for price and availability
-500730Ferrari Arm - 500730Price on requestSpecial order, ships in 7-14 days
