Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Clutch Unit And Cover (diagram 018)

Exploded view of the clutch unit and cover on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

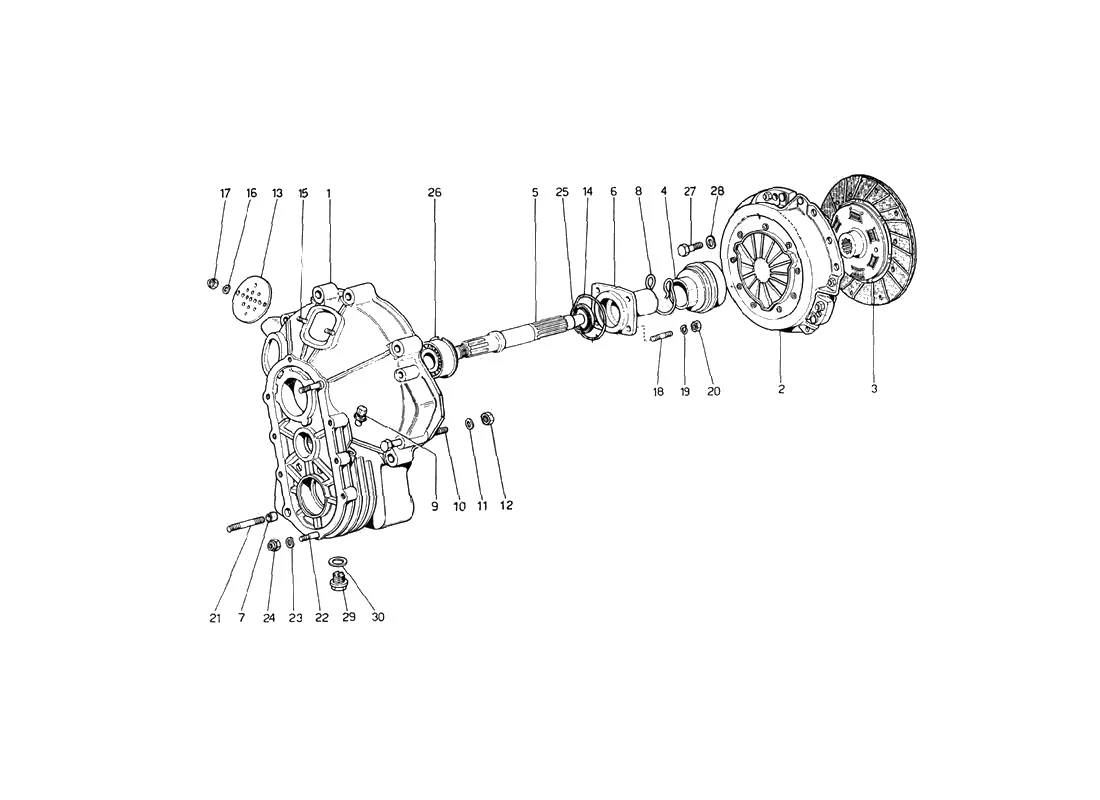

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Clutch Unit And Cover exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1500845Ferrari Bell Housing Complete - 500845Price on requestSpecial order, ships in 7-14 days
1500715Ferrari Bell Housing - 500715Price on requestSpecial order, ships in 7-14 days
1500785Ferrari Bell Housing - 500785Price on requestSpecial order, ships in 7-14 days
2500828Ferrari 246 Clutch Pressure Plate - 500828$384.62In stock
2500802Ferrari Clutch Cover Assy - 500802$416.46Available, ships in 3-6 days
2MC2460Ferrari 246GT Clutch Kit (3 piece) - MC2460$1,732.51Available, ships in 3-6 days
3500803Ferrari 246 Clutch Disc - 500803$280.50In stock
4500660Ferrari 246 Clutch Release Bearing-500660$239.99In stock
5500717Ferrari Clutch Spigot Shaft - 500717$1,880.60Available, ships in 3-6 days
6500718Ferrari Clutch Throat - 500718Price on requestSpecial order, ships in 7-14 days
7102704Ferrari Dowel - 102704$6.10Available, ships in 3-6 days
8100850Ferrari Clutch Release Bearing Spring - 100850SupersededOrder 105732 instead
8105732Ferrari Clutch Release Bearing Spring - 105732$44.01Available, ships in 3-6 days
913411990Ferrari Valve - 13411990$6.77Available, ships in 3-6 days
1015972221Ferrari Bolt - 15972221$5.29Available, ships in 3-6 days
1015972121Ferrari Bolt - 15972121Price on requestSpecial order, ships in 7-14 days
1111198373Ferrari Washer - 11198373$0.96Available, ships in 3-6 days
1212164711Ferrari Nut M10 x 1.25 x 8 - 12164711$0.50Available, ships in 3-6 days
13500521Ferrari Cover Disc - 500521Price on requestContact us for price and availability
1495860083Ferrari 246 O Ring - 95860083$3.65In stock
1511000820Ferrari Stud - 11000820$1.73Available, ships in 3-6 days
1611195470Ferrari 5mm Wavy Washer - 11195470$0.21Available, ships in 3-6 days
1715896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
1715896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
1813516520Ferrari Threaded Stud - 13516520Price on requestSpecial order, ships in 7-14 days
19127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1910516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
2016102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
2016102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
2113517621Ferrari Stud Bolt - 13517621$21.12Available, ships in 3-6 days
2113517620Ferrari Stud - 13517620$28.25Available, ships in 3-6 days
2213517520Ferrari Stud - 13517520Price on requestSpecial order, ships in 7-14 days
2311198074Ferrari/Maserati Washer - 11198074$0.14In stock
2311198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
2416100824Ferrari/Maserati Nut - 16100824$0.30In stock
2416100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
2595850213Ferrari 246 Oil Seal - 95850213$14.80In stock
2695892500Ferrari Ball Bearing With Circlip - 95892500$312.21Available, ships in 3-6 days
2714306320Ferrari Allen Screw Bolt (Flywheel 246) - 14306320Price on requestSpecial order, ships in 7-14 days
29183962Ferrari Gearbox/Differential Oil Drain Plug - 183962$37.84In stock
2914326540Ferrari Oil Drain Plug - 14326540$33.45Available, ships in 3-6 days
3010279560Ferrari Gearbox Drain Plug Washer 22mm - 10279560$1.10In stock
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
15896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
500204Ferrari Spring - 500204SupersededOrder 105732 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
