Ferrari 328 GTB/GTS (1985) — Lubrication System (diagram 020)

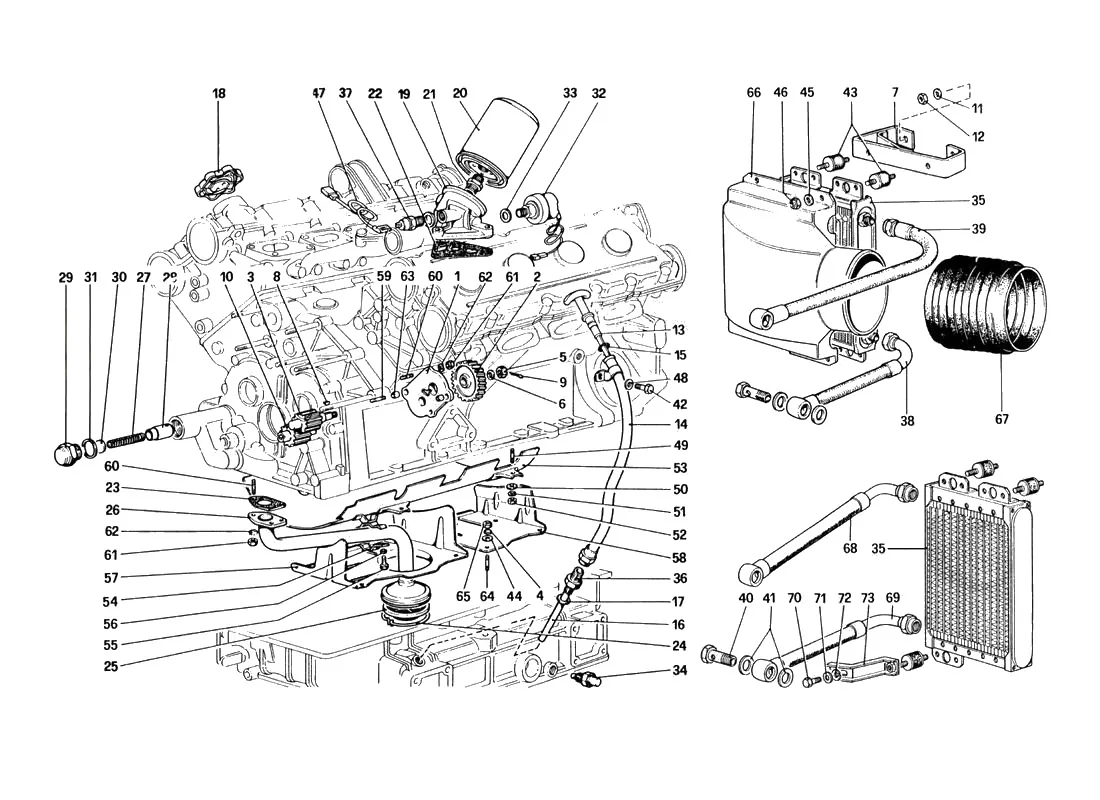

Exploded view of the lubrication system on the Ferrari 328 GTB/GTS (1985), with 126 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 328 GTB/GTS (1985) Lubrication System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1109300Ferrari Oil Pump Cover - 109300Price on requestContact us for price and availability
2117659Ferrari Pump Gear - 117659Price on requestContact us for price and availability
3103782Ferrari Gear - 103782$587.52Available, ships in 3-6 days
3109956Ferrari Gear - 109956SupersededOrder 103782 instead
4127493Ferrari Spring Washer 5mm - 127493$0.17Available, ships in 3-6 days
4106849Ferrari Spring Washer - 106849SupersededOrder 127493 instead
5102900Ferrari Castellated Nut - 102900$12.83Available, ships in 3-6 days
611198570Ferrari Washer - 11198570$0.21Available, ships in 3-6 days
7114735Ferrari Support - 114735$62.60Available, ships in 3-6 days
810205620Ferrari Woodruff Key 2.5Mm X 3.7Mm L2 - 10205620$1.15Available, ships in 3-6 days
910734301Ferrari Split Pin 2X18 - 10734301$0.13Available, ships in 3-6 days
10109308Ferrari Oil Pump Gear - 109308$326.22Available, ships in 3-6 days
1114496501Ferrari Washer - 14496501Price on requestContact us for price and availability
12104030Ferrari/Maserati Nut - 104030$0.88In stock
1216104111Ferrari Nut - 16104111SupersededOrder 104030 instead
13105657Ferrari Oil Level Stick - 105657Price on requestContact us for price and availability
14120001Ferrari Dipstick Tube - 120001Price on requestContact us for price and availability
15100317Ferrari O Ring-100317$1.93In stock
16107868Ferrari Dipstick Tube - 107868$125.71Special order, ships in 7-14 days
1710259960Ferrari Copper Washer - 10259960$1.21In stock
18103936Ferrari Oil Cap - 103936$75.77In stock
19123863Ferrari Oil Filter Base - 123863$286.27Available, ships in 3-6 days
20111782Ferrari Oil Filter - 111782SupersededOrder 191993 instead
21121246Ferrari Union - 121246$159.25Available, ships in 3-6 days
22123869Ferrari Oil Filter Base Gasket - 123869Price on requestContact us for price and availability
23134961Ferrari 308/328/Mondial/Testarossa Oil Pickup Tube Gasket - 134961$6.56In stock
23103942Ferrari Gasket - 103942SupersededOrder 134961 instead
24103944Ferrari Circlip - 103944$30.07Available, ships in 3-6 days
24103944/AFerrari Circlip - 103944/A$34.40Available, ships in 3-6 days
25100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
26105998Ferrari Oil Pickup Tube - 105998$259.19Available, ships in 3-6 days
27106900Ferrari Spring - 106900Price on requestContact us for price and availability
28125885Ferrari Piston - 125885$236.48Available, ships in 3-6 days
29106237Ferrari Plug - 106237$109.40Special order, ships in 7-14 days
30106238Ferrari Oil Pressure Adjusting Shim - 106238$3.01Available, ships in 3-6 days
3110264660Ferrari Copper Washer - 10264660$4.72In stock
32122592Ferrari Oil Pressure Sender/Switch - 122592$329.90In stock
34107576Oil Temperature Sender - Thermistor - 107576$148.80In stock
35135774Ferrari Oil Cooler Radiator - 135774$1,149.72Available, ships in 3-6 days
35126917Ferrari Oil Radiator - 126917SupersededOrder 135774 instead
36102668Ferrari Union - 102668Price on requestContact us for price and availability
37110664Ferrari Oil Pressure Light Switch - 110664$30.80In stock
38126912Ferrari Oil Hose for Chassis 81317 on - 126912SupersededOrder 142182 instead
38142182Ferrari Oil Hose - 142182$499.37Available, ships in 3-6 days
39126913Ferrari O/Hose->Ch81317(Seecn78-78/1 - 126913$147.62Available, ships in 3-6 days
40123881Ferrari Union - 123881$48.05Special order, ships in 7-14 days
4110246160Ferrari Gasket D. 26 - 32 x 1 - 10246160$1.65Available, ships in 3-6 days
4210902024Ferrari Screw M6 x 12 - 10902024$0.12Available, ships in 3-6 days
4210902011Ferrari Screw 6x12 - 10902011$13.69Available, ships in 3-6 days
43102947Ferrari Vibration Dampening Support - 102947$8.31In stock
4412638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
4412638101Ferrari Washer White - 12638101SupersededOrder 12638124 instead
4510519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
4514496401Ferrari Washer - 14496401SupersededOrder 10519424 instead
46102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
4612575411Ferrari Nyloc Nut M6 x 6 - 12575411SupersededOrder 12575421 instead
47112388Ferrari Cable - 112388Price on requestContact us for price and availability
4812601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
4812601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
4913516521Ferrari Stud - 13516521SupersededOrder 13516524 instead
5010519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
5010519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
51127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
5110516671Ferrari Washer - 10516671SupersededOrder 127496 instead
5216102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
5216102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
53103929Ferrari Crank Shield - 103929$185.74Available, ships in 3-6 days
54103933Ferrari Bracket - 103933$19.72Available, ships in 3-6 days
5510977724Ferrari Screw M5 x 14 - 10977724$0.12Available, ships in 3-6 days
5510977710Ferrari Screw - 10977710SupersededOrder 10977724 instead
5611195471Ferrari Washer - 11195471SupersededOrder 127493 instead
57107073Ferrari Sump Shield - 107073Price on requestContact us for price and availability
58107074Ferrari Plate - 107074Price on requestContact us for price and availability
5913541124Ferrari Stud 6x12 Stem 20 - 13541124$43.68Available, ships in 3-6 days
5913541121Ferrari Stud 6x12mm - 13541121SupersededOrder 13541124 instead
6013540821Ferrari Stud - 13540821Price on requestContact us for price and availability
6115896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
6211197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
6211197771Ferrari Washer - 11197771SupersededOrder 11197774 instead
63102725Ferrari/Maserati Dowel - 102725$2.79In stock
6413539021Ferrari Stud - 13539021SupersededOrder 13539024 instead
6413539024Ferrari Stud - 13539024$3.03Available, ships in 3-6 days
6515896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
6515896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
66127035Ferrari Conveyor - 127035Price on requestContact us for price and availability
67107533Ferrari Lower Oil Cooler Air Hose-107533$86.90In stock
68128239Ferrari Oil Hose - 128239$1,057.73Special order, ships in 7-14 days
69128238Ferrari 328 (US) Lower Oil Cooler Hose - 128238$522.50In stock
7010902021Ferrari Bolt - 10902021SupersededOrder 10902024 instead
71127494Ferrari Lock Washer - 127494$0.50In stock
7212644401Ferrari Washer - 12644401$0.08Available, ships in 3-6 days
73119168Ferrari Bracket - 119168$39.69Available, ships in 3-6 days
10902411Ferrari Bolt - 10902411SupersededOrder 10902024 instead
24124Ferrari Circlip - 24124SupersededOrder 103944 instead
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
12575421Ferrari Nyloc Nut M6 x 6 - 12575421$0.40Available, ships in 3-6 days
142181Ferrari Oil Cooler Hose - 142181$464.43Available, ships in 3-6 days
100325Ferrari Oil Filter - 100325SupersededOrder 191993 instead
191993Ferrari Oil Filter - 191993$48.80In stock
4170601Ferrari Oil Filter - 4170601SupersededOrder 191993 instead
135120Ferrari Oil Filter Base Gasket - 135120$10.93Available, ships in 3-6 days
118000Ferrari Oil Press.Sender - 118000SupersededOrder 122592 instead
114927Ferrari Oil Pressure Sender - 114927SupersededOrder 122592 instead
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
13540824Ferrari Stud - 13540824Price on requestContact us for price and availability
102682Ferrari Stud Bolt - 102682SupersededOrder 13516524 instead
13516524Ferrari Stud Bolt - 13516524$2.80Special order, ships in 7-14 days
13516621Ferrari Stud Bolt - 13516621Price on requestContact us for price and availability
9162303Ferrari Stud Bolt - 9162303SupersededOrder 13516524 instead
100319Ferrari Union (Dipstick) - 100319Price on requestContact us for price and availability
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
11195473Ferrari Washer - 11195473SupersededOrder 127493 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
