Ferrari 328 GTB/GTS (1985) — Front Compartment Lid (diagram 108)

Exploded view of the front compartment lid on the Ferrari 328 GTB/GTS (1985), with 61 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

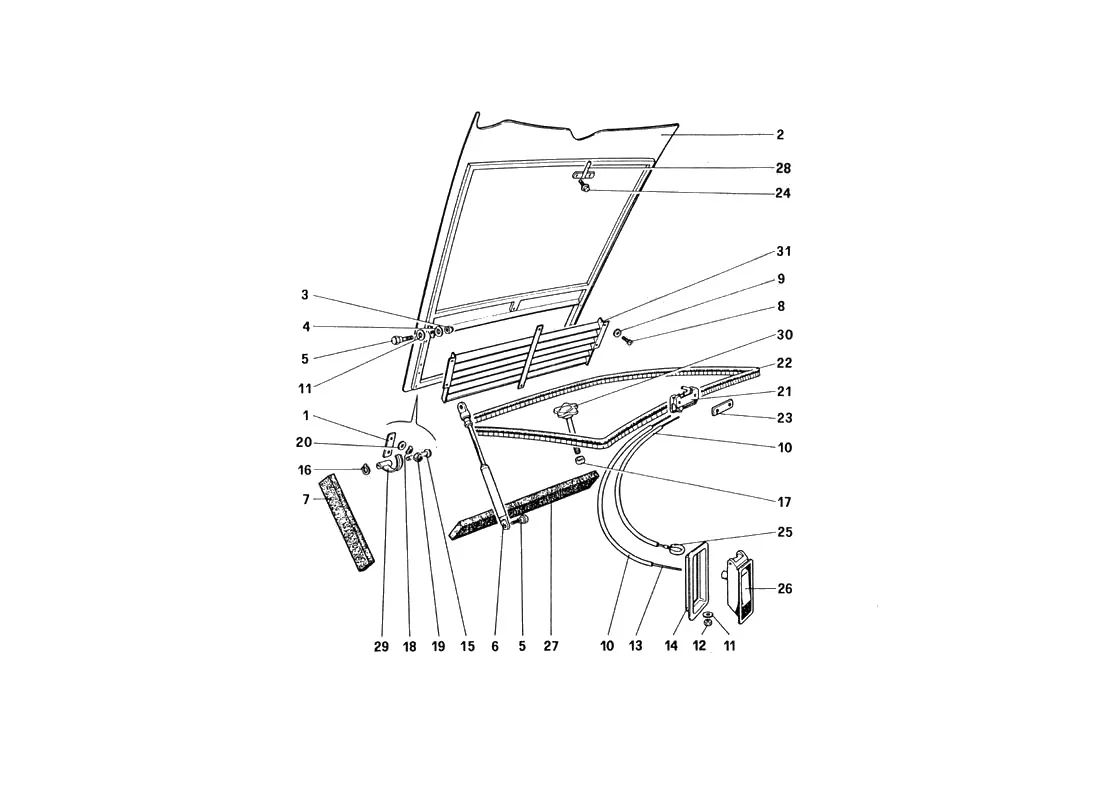

Ferrari 328 GTB/GTS (1985) Front Compartment Lid exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
161751900Ferrari Hinge Plate - 61751900$16.98Available, ships in 3-6 days
261751500Ferrari Front Bonnet LHD - 61751500Price on requestContact us to order
261756000Ferrari Front Bonnet - 61756000$2,909.61Contact us to order
261858100Ferrari Front Bonnet RHD - 61858100$2,310.04Contact us to order
3169180Ferrari Nyloc Nut M5 x 6.3 - 169180$0.31Available, ships in 3-6 days
312574111Ferrari Nyloc Nut - 12574111SupersededOrder 169180 instead
412638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
412638101Ferrari Washer White - 12638101SupersededOrder 12638124 instead
540161903Ferrari Boot/Bonnet Stay Bolt - 40161903$33.67Available, ships in 3-6 days
662380500Ferrari 308/328/Mondial Lift Support Strut - 62380500$96.80In stock
660118007Ferrari Bonnet Stay - 60118007SupersededOrder 62380500 instead
760773500Ferrari Foam Side Gasket (Radiator) - 60773500$124.63Available, ships in 3-6 days
820297800Ferrari Screw - 20297800Price on requestContact us for price and availability
912638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
961276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1060126604Ferrari Sheath - 60126604Price on requestContact us for price and availability
1060277209Ferrari Sheath - 60277209Price on requestContact us for price and availability
1215896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
1215896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
1360277001Ferrari 308/328 Engine Lid Release Cable - 60277001$74.98In stock
1360126505Ferrari Cable - 60126505$73.04Available, ships in 3-6 days
1360276904Ferrari Cable - 60276904$73.04Available, ships in 3-6 days
1460765500Ferrari Flange - 60765500Price on requestContact us for price and availability
1560061504Ferrari Hinge Pin - 60061504$28.10Special order, ships in 7-14 days
1611065676Ferrari Circlip - 11065676$0.08Available, ships in 3-6 days
1660962400Ferrari Circlip - 60962400SupersededOrder 11065676 instead
1761609500Ferrari Spacer - 61609500Price on requestContact us for price and availability
18127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
18106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
1916100824Ferrari/Maserati Nut - 16100824$0.30In stock
1916100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
2012646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
2160277407Ferrari Lock Mechanism - 60277407SupersededOrder 60023405 instead
2160023405Ferrari Lock Mechanism - 60023405$970.56Available, ships in 3-6 days
22MC3477/1Ferrari Rear Trunk Weatherstrip Seal - MC3477/1$21.26In stock
2261826600Ferrari Bonnet Aperture Rubber - 61826600$19.70Available, ships in 3-6 days
2360276508Ferrari Bracket - 60276508$15.37Available, ships in 3-6 days
2413835871Ferrari Self locking flange Bolt - 13835871$2.93Available, ships in 3-6 days
2560126703Ferrari Emergency Cable - 60126703$9.85Available, ships in 3-6 days
2560277100Ferrari Safety Cable - 60277100$10.18Available, ships in 3-6 days
2660297207BFerrari Hood Release Handle Housing - 60297207B$278.66In stock
2661756700Ferrari Hood Release Handle - 61756700SupersededOrder 63011800 instead
2663011800Ferrari Hood Release Handle - 63011800$538.54In stock
2760773400Ferrari Foam Gasket (Radiator) - 60773400Price on requestContact us for price and availability
2861090400Ferrari Bonnet Lock Pin - 61090400$31.57Available, ships in 3-6 days
2960275302Ferrari Bonnet Hinge - 60275302$40.46Available, ships in 3-6 days
3061609400Ferrari 308/328 Spare Wheel Retaining Bolt - 61609400$212.13In stock
3161752500Ferrari Bonnet Grille - 61752500Price on requestContact us for price and availability
61497600Ferrari Bonnet Lock - 61497600Price on requestContact us for price and availability
62498100Ferrari Bonnet Release Handle - 62498100SupersededOrder 63011800 instead
60553000Ferrari Bush - 60553000Price on requestContact us for price and availability
60087509Ferrari Flange - 60087509Price on requestContact us for price and availability
62402100Ferrari Hinge Pin - 62402100$31.39Available, ships in 3-6 days
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
12574121Ferrari Nyloc Nut White - 12574121SupersededOrder 169180 instead
40231805Ferrari Rubber - 40231805$92.80Available, ships in 3-6 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead

All 328 GTB/GTS (1985) diagrams
