Ferrari 348 tb/ts — Doors - Opening Control And Hinges (diagram 116)

Exploded view of the doors - opening control and hinges on the Ferrari 348 tb/ts, with 82 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

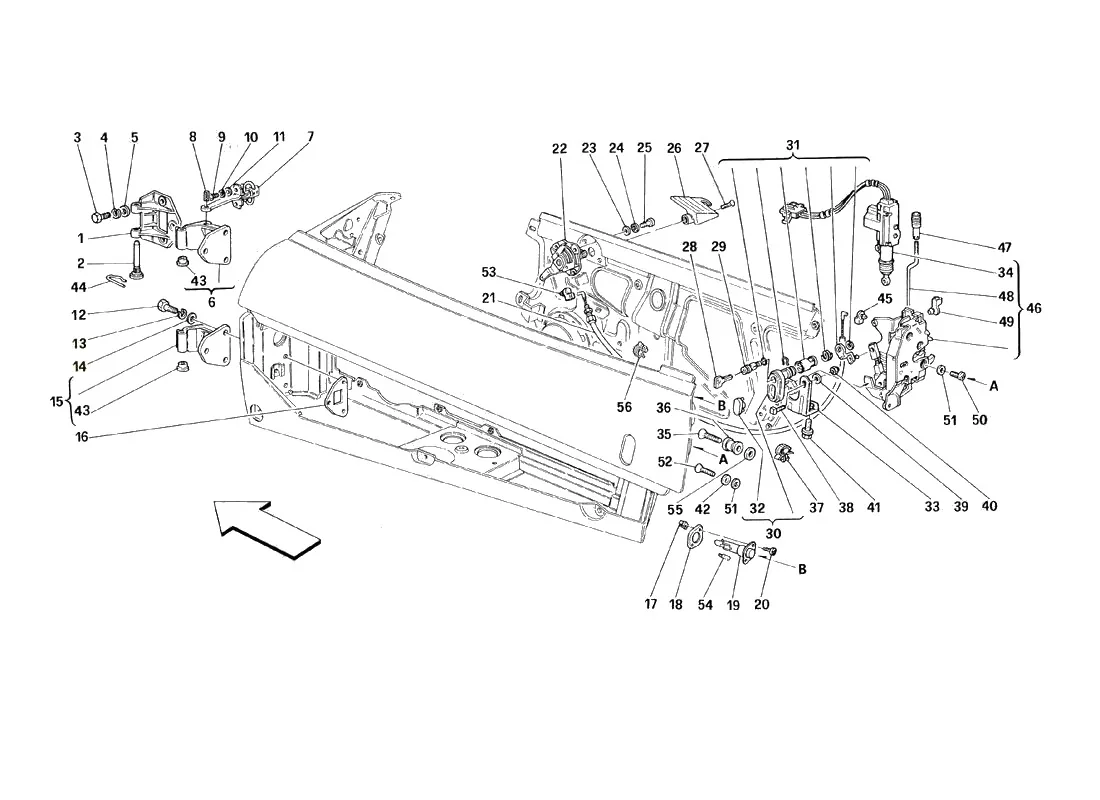

Ferrari 348 tb/ts Doors - Opening Control And Hinges exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
162063600Ferrari Door Hinge Fixed - 62063600SupersededOrder 64829800 instead
262054100Ferrari Door Hinge Pin - 62054100$68.18Available, ships in 3-6 days
316135921Ferrari Bolt - 16135921SupersededOrder 16135924 instead
316135924Ferrari Screw M8 x 30 - 16135924$2.61Available, ships in 3-6 days
4127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
510519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
662063500Ferrari Upper Mobile Hinge - 62063500$328.73Available, ships in 3-6 days
762055400Ferrari Door Check Strap - 62055400Price on requestContact us for price and availability
865859300Ferrari Roll Pin - 65859300$14.34Available, ships in 3-6 days
860730200Ferrari Pin - 60730200SupersededOrder 65859300 instead
916134321Ferrari Screw - 16134321$32.41Available, ships in 3-6 days
10127493Ferrari Spring Washer 5mm - 127493$0.17Available, ships in 3-6 days
1112638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
1112638101Ferrari Washer White - 12638101SupersededOrder 12638124 instead
1562172600Ferrari Lower Mobile Hinge - 62172600$80.83Available, ships in 3-6 days
1662101100Ferrari Plate - 62101100$12.54Available, ships in 3-6 days
1714115580Ferrari Fixing Block - 14115580$0.34Available, ships in 3-6 days
18140576Ferrari Gasket - 140576$23.90Available, ships in 3-6 days
1960788100Ferrari Lamp Door Warning - 60788100Price on requestContact us for price and availability
2015901470Ferrari Screw - 15901470$0.46Special order, ships in 7-14 days
2162110500Ferrari Door Lock Cable - 62110500Price on requestContact us for price and availability
2262584400Ferrari LH Interior Door Handle Mechanism - 62584400$181.60Available, ships in 3-6 days
2262171600Ferrari RH Interior Door Handle Mechanism - 62171600$228.03Available, ships in 3-6 days
2360711900Ferrari Washer - 60711900$0.82Available, ships in 3-6 days
24149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
2514071911Ferrari Screw - 14071911$0.63Available, ships in 3-6 days
2662158500Ferrari LH Interior Door Handle - 62158500$316.46Available, ships in 3-6 days
2662158400Ferrari RH Interior Door Handle - 62158400$656.27Available, ships in 3-6 days
2713309211Ferrari Screw M4 x 16 - 13309211$1.51Available, ships in 3-6 days
2713309277Ferrari Screw M4 x 16 TSCIC - 13309277$0.71Available, ships in 3-6 days
2895401152Ferrari Key Blank - 95401152$567.43Available, ships in 3-6 days
3062108810Ferrari LH Door Handle Exterior - 62108810$1,447.70Available, ships in 3-6 days
3062108710Ferrari RH Door Handle Exterior - 62108710$740.16Available, ships in 3-6 days
3170000655Ferrari LH Door Handle Kit - 70000655$1,447.70Available, ships in 3-6 days
3170000654Ferrari RH Door Handle Kit - 70000654Price on requestContact us for price and availability
3262584200Ferrari Door Button - 62584200$49.39Available, ships in 3-6 days
3362171000Ferrari Bracket - 62171000$27.93Available, ships in 3-6 days
3362194500Ferrari Bracket - 62194500Price on requestContact us for price and availability
3462832300Ferrari 348/355 Door Lock Actuator - 62832300$97.90In stock
3562858700Ferrari Screw - 62858700$3.89Available, ships in 3-6 days
3663364100Ferrari 348/F355 Door Pin Striker-63364100$47.80In stock
3761130600Ferrari Clip - 61130600$0.19Available, ships in 3-6 days
3862171200Ferrari Captive Bolt - 62171200$1.50Available, ships in 3-6 days
3912646604Ferrari Washer D6 15-15 x 1.5 - 12646604$0.50Available, ships in 3-6 days
3912646601Ferrari Washer - 12646601SupersededOrder 12646604 instead
40102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
4012574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
4113836371Ferrari Self locking flange Bolt - 13836371Price on requestContact us for price and availability
4212647778Ferrari Cup Washer - 12647778$0.82Available, ships in 3-6 days
4212647777Ferrari Cup Washer - 12647777SupersededOrder 12647778 instead
4362825300Ferrari Bush - 62825300$56.27Available, ships in 3-6 days
4462116700Ferrari Spring Clip - 62116700$9.60Available, ships in 3-6 days
4514578080Ferrari Door Rod Clip - 14578080$0.19Available, ships in 3-6 days
4540063208Ferrari Door Rod Clip - 40063208$1.48Available, ships in 3-6 days
4662109400Ferrari LH Door Lock - 62109400SupersededOrder 64312600 instead
4662109300Ferrari RH Door Lock - 62109300$945.30Available, ships in 3-6 days
4762800900Ferrari Door Lock Knob - 62800900$3.64Available, ships in 3-6 days
4862109200Ferrari LH Door Lock Rod - 62109200$132.15Special order, ships in 7-14 days
4862109100Ferrari RH Door Lock Rod - 62109100$154.18Special order, ships in 7-14 days
4963280600Ferrari Rod Retaining Clip - 63280600Price on requestContact us for price and availability
5062941000Ferrari Screw - 62941000$6.88In stock
5163314400Ferrari Washer - 63314400$1.61Special order, ships in 7-14 days
5262940900Ferrari Allen Head Screw M6 x 15 TBEI - 62940900$2.59Available, ships in 3-6 days
5363291200Ferrari Clip - 63291200$1.00In stock
54101525Ferrari Bulb 12V-3W - 101525$5.88Available, ships in 3-6 days
5563285300Ferrari Washer - 63285300$2.82Available, ships in 3-6 days
5614569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
101528Ferrari Bulb 12v 4w - 101528SupersededOrder 101525 instead
20083309Ferrari Bulb 12V-4W - 20083309SupersededOrder 101525 instead
248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
64314100Ferrari Door Opening Cable - 64314100$313.50In stock
62109500Ferrari Door Striker - 62109500SupersededOrder 63364100 instead
64829800Ferrari Fixed Hinge - 64829800$124.81Special order, ships in 7-14 days
401329Ferrari Lamp - 401329SupersededOrder 101525 instead
64312600Ferrari LH Door Lock - 64312600$562.96Special order, ships in 7-14 days
95563Ferrari Screw - 95563SupersededOrder 16135924 instead
106849Ferrari Spring Washer - 106849SupersededOrder 127493 instead
10615301Ferrari Washer - 10615301SupersededOrder 149951 instead
11195471Ferrari Washer - 11195471SupersededOrder 127493 instead
11195473Ferrari Washer - 11195473SupersededOrder 127493 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
