Ferrari 365 GTB4 (Daytona) — Cooling System - Water Pump & Radiator (1974 Revision - Cars With Air Pollution System) (diagram 009A)

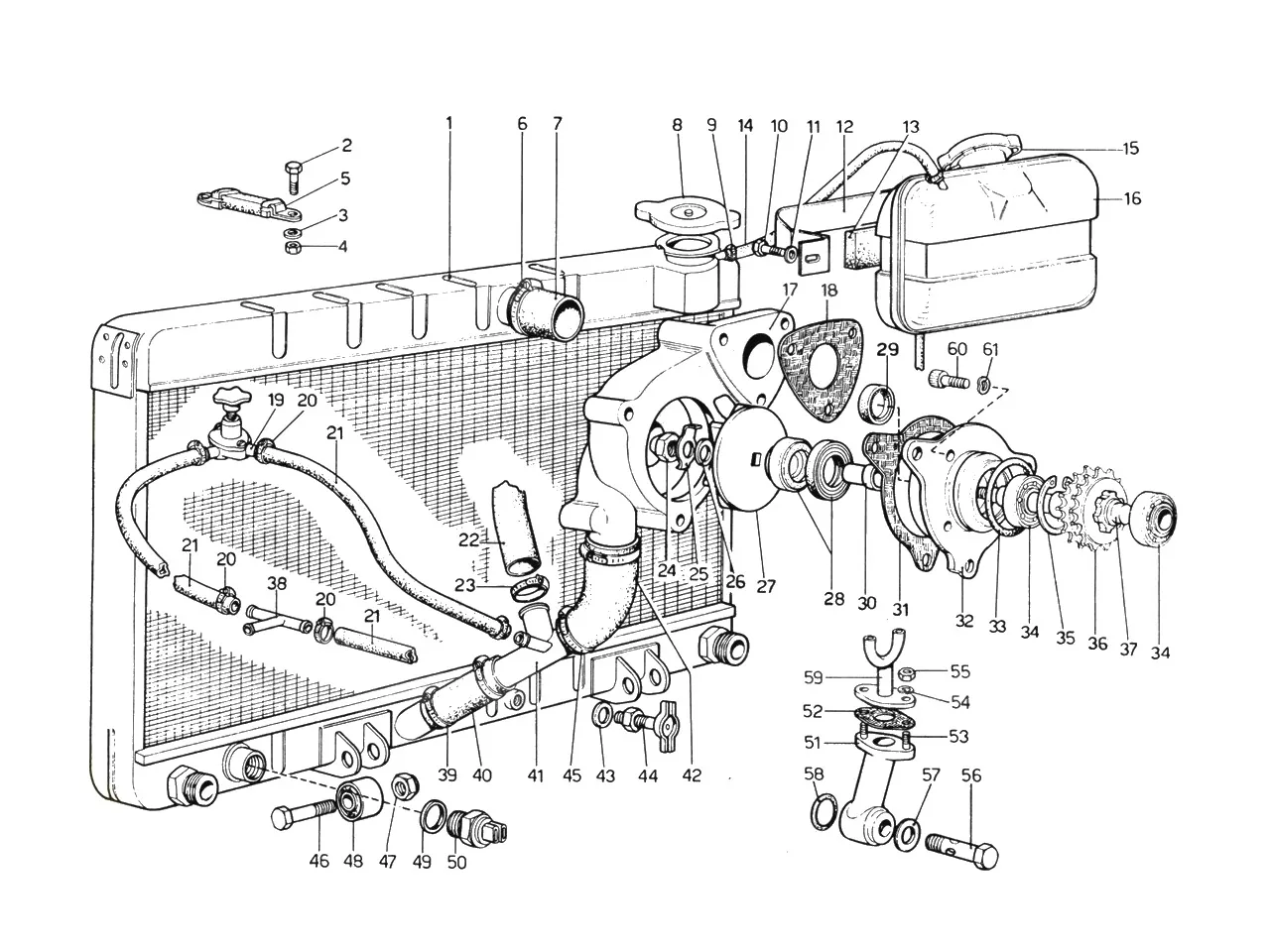

Exploded view of the cooling system - water pump & radiator (1974 revision - cars with air pollution system) on the Ferrari 365 GTB4 (Daytona), with 93 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Cooling System - Water Pump & Radiator (1974 Revision - Cars With Air Pollution System) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1800261Ferrari 365GTB4 Water Radiator - 800261Price on requestContact us for price and availability
210902124Ferrari Screw - 10902124$0.29In stock
295880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
3127494Ferrari Lock Washer - 127494$0.50In stock
4134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
415896221Ferrari Nut - 15896221SupersededOrder 134041 instead
5101497Ferrari Exhaust / Radiator Hanger Strap - 101497$16.23In stock
520240Ferrari Exhaust Strap - 20240SupersededOrder 101497 instead
695027Ferrari Hose Clip - 95027Price on requestContact us for price and availability
795053Ferrari 330/365 Upper Radiator Cooling Hose - 95053$54.98In stock
795592Ferrari Hose 42X52x90 - 95592$91.87Available, ships in 3-6 days
8101484Ferrari Radiator Cap - 101484$51.65In stock
913000490Ferrari Screw Collar 20-32mm - 13000490$1.53Available, ships in 3-6 days
918270Ferrari Clip - 18270$1.53Available, ships in 3-6 days
1095880504Ferrari Bolt 8X16 Uni 5739 - 95880504Price on requestContact us for price and availability
11127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1110516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
1495604Ferrari Tube - 95604Price on requestContact us for price and availability
15101499Ferrari Expansion Tank/Radiator Cap 0.9 - 101499$23.10In stock
15101499-2Ferrari Expansion Tank/Radiator Cap 0.9 - 101499-2$23.10In stock
15101499/AFerrari Radiator Pressure Cap (0.9 Bar) - 101499/A$30.26Available, ships in 3-6 days
16101498Ferrari Coolant Tank - 101498$852.50In stock
16800359Ferrari Header Tank - 800359SupersededOrder 101498 instead
1726791Ferrari 365Gtb4 Water Pump Case - 26791Price on requestContact us for price and availability
1826727Ferrari Water Pump Gasket - 26727$11.99In stock
19400112Ferrari Heater Valve - 400112SupersededOrder 100880 instead
19100880Ferrari Heater Tap - 100880$323.26Available, ships in 3-6 days
2195603Ferrari Hose - 95603Price on requestContact us for price and availability
2295462Ferrari Water Hose - 95462$134.15Available, ships in 3-6 days
24100436Ferrari Water Pump Nut - 100436$6.44In stock
2492896Ferrari Cap Nut - 92896SupersededOrder 100436 instead
25100434Ferrari Water Pump Lock Tab - 100434$11.98In stock
2592363Ferrari Locktab - 92363SupersededOrder 100434 instead
2610519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
2693798Ferrari Washer - 93798SupersededOrder 10519624 instead
27100430Ferrari Water Pump Impeller - 100430$383.24Available, ships in 3-6 days
2726733Ferrari Impeller - 26733SupersededOrder 100430 instead
28100433Ferrari Water Pump Seal - 100433$165.00In stock
2826735Ferrari Seal - 26735$174.47Available, ships in 3-6 days
29365DAYWPKITFerrari 365 Water Pump Kit-365DAYWPKIT$196.90In stock
29105548Ferrari Water Pump Seal - 105548$20.35In stock
3026734Ferrari Water Pump Spacer - 26734$197.53Available, ships in 3-6 days
3126726Ferrari Water Pump Gasket-26726$6.33In stock
3226736Ferrari Water Pump Bearing/Seal Housing - 26736Price on requestContact us for price and availability
3395860022Ferrari 365 O Ring - 95860022$4.88In stock
3495890204Ferrari Ball Bearing - 95890204$105.00In stock
3493457Ferrari Bearing - 93457SupersededOrder 95890204 instead
3511059776Ferrari Circlip D.40 - 11059776$0.57Special order, ships in 7-14 days
369220200Ferrari Gear - 9220200Price on requestContact us for price and availability
3726717Ferrari 365Gtb4 Shaft (Water Pump) - 26717$425.44Special order, ships in 7-14 days
38680025Ferrari 3 Way Union - 680025SupersededOrder 100881 instead
38100881Ferrari T Piece Union - 100881$9.62Available, ships in 3-6 days
4095461Ferrari 365 GTB4 Lower Radiator Hose - 95461$19.98In stock
4126756Ferrari 365Gtb4 4 Way Water Pipe Union - 26756Price on requestContact us for price and availability
4226724Ferrari 365GTB/S4 Water Hose Pump to Radiator - 26724$223.64Available, ships in 3-6 days
43101496Ferrari Radiator Drain Plug Washer - 101496$6.22In stock
44252840Ferrari Tap - 252840SupersededOrder 101488 instead
4695881201Ferrari Bolt 14x50 B2 - 95881201$56.91Available, ships in 3-6 days
47150238Ferrari Nyloc Nut - 150238$1.05In stock
4795900611Ferrari Nut B70 214MB - 95900611$0.50Available, ships in 3-6 days
4894678Ferrari Shock Absorber Bush - 94678$41.69Available, ships in 3-6 days
49101508Ferrari Gasket D. 22.5 - 30 x 1.5 - 101508$2.38Available, ships in 3-6 days
4994706Ferrari Gasket - 94706SupersededOrder 101508 instead
50168008Ferrari Radiator Fan Switch - 168008$68.75In stock
50800352Ferrari Thermo Switch - 800352SupersededOrder 168008 instead
50101507/AFerrari Radiator Thermo Sensor - 101507/A$114.64Available, ships in 3-6 days
519160550Ferrari Pipe - 9160550$854.51Special order, ships in 7-14 days
5222802Ferrari 330/365 Heater Valve Gasket - 22802$4.29In stock
5395920107Ferrari Stud 6X18 P1 - 95920107$3.76Available, ships in 3-6 days
5412601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
5412601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
5695049Ferrari Union - 95049$213.68Available, ships in 3-6 days
5794995Ferrari Copper Washer - 94995$0.38Available, ships in 3-6 days
5710263360Ferrari Gasket D. 20-26 x 1 - 10263360$0.38Available, ships in 3-6 days
58101043Ferrari O-Ring - 101043$1.82In stock
599162606Ferrari Tube - 9162606Price on requestContact us for price and availability
6095940211Ferrari Allen Screw Vtce 6X25a - 95940211Price on requestContact us for price and availability
10902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
137644Ferrari Expansion Tank/Radiator Cap 1.1 Bar - 137644$23.65In stock
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
800214Ferrari Radiator - 800214Price on requestContact us for price and availability
101488Ferrari Radiator Drain Tap - 101488$108.79In stock
101507Ferrari Radiator Thermo Sender - 101507SupersededOrder 168008 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
-400111Ferrari 275/275 GTB 4 Cam Heater Valve 400111$306.90Contact us
-800193Ferrari Sender with Adjuster - 800193$114.64Available, ships in 3-6 days
-800194Ferrari Sender without Adjuster - 800194$114.64Available, ships in 3-6 days
