Ferrari 365 GTB4 (Daytona) — Distributors & Controls (diagram 010)

Exploded view of the distributors & controls on the Ferrari 365 GTB4 (Daytona), with 116 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

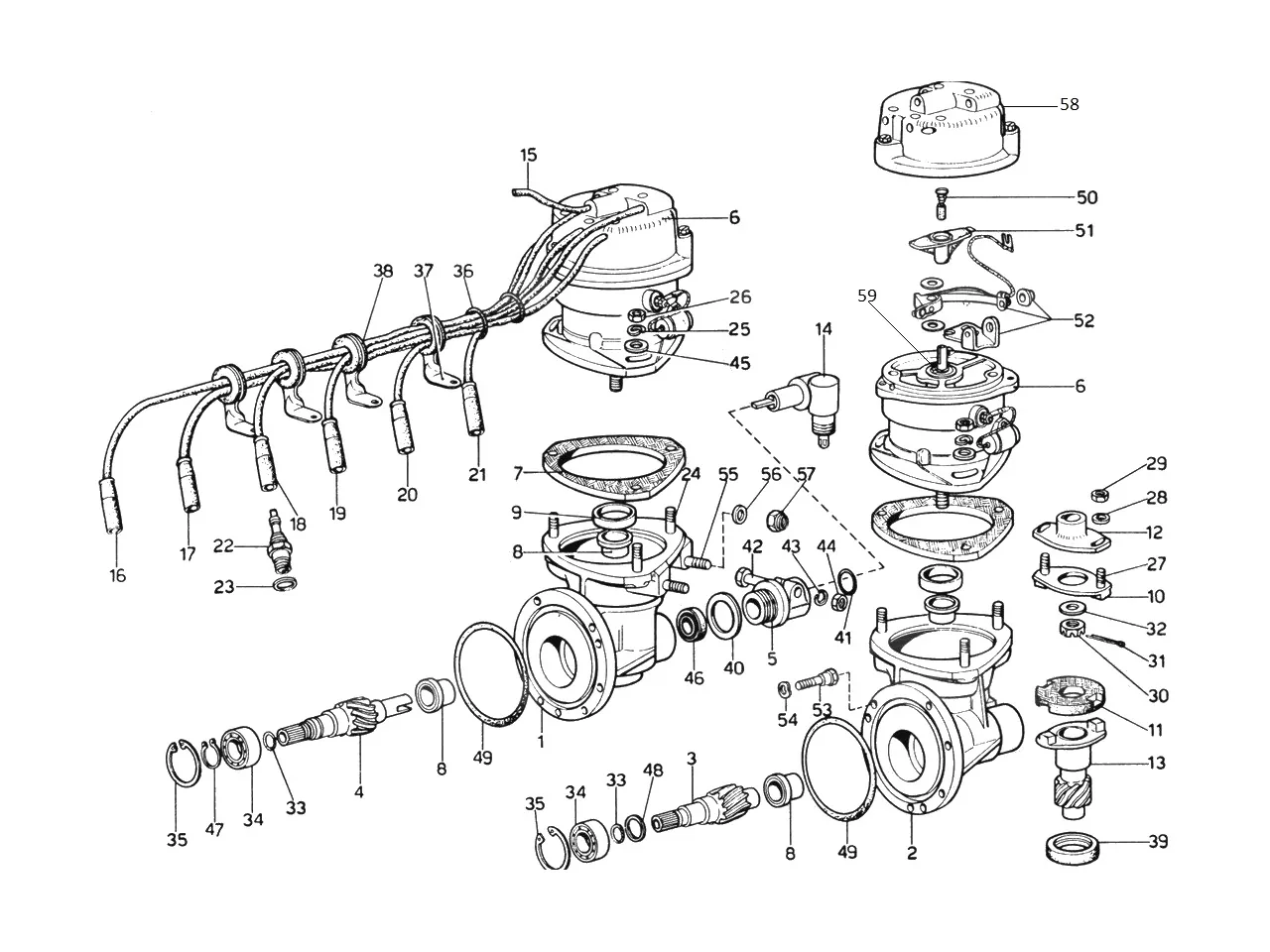

Ferrari 365 GTB4 (Daytona) Distributors & Controls exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
129247Ferrari Support - 29247Price on requestContact us for price and availability
229231Ferrari Support - 29231Price on requestContact us for price and availability
330586Ferrari LH Gear Assembly - 30586$855.24Available, ships in 3-6 days
430909Ferrari Gear - 30909$309.35Special order, ships in 7-14 days
530736Ferrari Drive - 30736Price on requestContact us for price and availability
695300040Ferrari Distributor Cap - 95300040$345.75In stock
629326Ferrari 365GTB/S4 Ignition Distributor - 29326$7,128.83Available, ships in 3-6 days
695300040/SFerrari Distributor Cap Screw - 95300040/S$1.71Available, ships in 3-6 days
7100270Ferrari Distributor Spacer & Gasket-100270$158.98In stock
716410Ferrari Dist Base Gasket - 16410$222.39Available, ships in 3-6 days
828968Ferrari Bush - 28968SupersededOrder 100269 instead
8100269Ferrari Bush - 100269$102.29Available, ships in 3-6 days
928970Ferrari Bush - 28970SupersededOrder 100268 instead
9100268Ferrari Bush - 100268$75.08Available, ships in 3-6 days
1030451Ferrari Int Flange - 30451$174.20Available, ships in 3-6 days
1130452Ferrari Joint - 30452SupersededOrder 106189 instead
1230823Ferrari Distributor Drive Flange - 30823$227.63Available, ships in 3-6 days
1330587Ferrari Driven Gear - 30587$1,364.03Available, ships in 3-6 days
1330836Ferrari RH Dist Drive Gear - 30836SupersededOrder 30587 instead
1330908Ferrari LH Dist Drive 251 - 30908Price on requestContact us for price and availability
14100503Ferrari Angle Drive LHD - 100503$9,631.74Available, ships in 3-6 days
1429319Ferrari Angle Drive - 29319SupersededOrder 100503 instead
158248Ferrari 365 GTB Daytona Ignition Wire Set -8248$693.48In stock
159983Ferrari 250/275 Ignition Wire Set-9983$493.90In stock
1529233Ferrari 250/275/330 Ht Lead Per Metre - 29233$38.33Available, ships in 3-6 days
1529270/KFerrari 365GTB4 RH + LH Ignition Lead Set - 29270/K$1,044.43Available, ships in 3-6 days
1629269/1Ferrari RH Ht Lead 710mm - 29269/1Price on requestSpecial order, ships in 7-14 days
1629269/7Ferrari LH Ht Lead 285mm - 29269/7Price on requestSpecial order, ships in 7-14 days
1729269/2Ferrari RH Ht Lead 745mm - 29269/2Price on requestSpecial order, ships in 7-14 days
1729269/8Ferrari LH Ht Lead 380mm - 29269/8Price on requestSpecial order, ships in 7-14 days
1829269/3Ferrari RH Ht Lead 655mm - 29269/3Price on requestSpecial order, ships in 7-14 days
1829269/9Ferrari LH Ht Lead 525mm - 29269/9Price on requestSpecial order, ships in 7-14 days
1929269/10Ferrari LH Ht Lead 545mm - 29269/10Price on requestSpecial order, ships in 7-14 days
2029269/11Ferrari LH Ht Lead 675mm - 29269/11Price on requestSpecial order, ships in 7-14 days
2029269/5Ferrari RH Ht Lead 415mm - 29269/5Price on requestSpecial order, ships in 7-14 days
2129269/12Ferrari LH Ht Lead 765mm - 29269/12Price on requestSpecial order, ships in 7-14 days
2129269/6Ferrari RH Ht Lead 390mm - 29269/6Price on requestSpecial order, ships in 7-14 days
22100604Ferrari Spark Plug - 100604$7.42In stock
2229322Ferrari Plug - 29322SupersededOrder 100604 instead
2310280060Ferrari/Maserati Copper Washer - 10280060$1.93In stock
2328889Ferrari Spark Plug Washer Copper 1mm - 28889SupersededOrder 10280060 instead
2495920411Ferrari Stud 8x30 P2 - 95920411Price on requestContact us for price and availability
25127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
2510516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
26103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
2795920101Ferrari Stud 6X10 P1 - 95920101$1.15Available, ships in 3-6 days
28127494Ferrari Lock Washer - 127494$0.50In stock
2810516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
29134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
2915896221Ferrari Nut - 15896221SupersededOrder 134041 instead
3092322Ferrari Nut - 92322Price on requestContact us for price and availability
3110796401Ferrari Split Pin - 10796401$0.13Available, ships in 3-6 days
3110734300Ferrari Split Pin 1.8x22 - 10734300Price on requestContact us for price and availability
3212601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
32102901Ferrari Washer - 102901$0.06Available, ships in 3-6 days
3395860004Ferrari O-Ring - 95860004$1.80Available, ships in 3-6 days
34101603Ferrari Non-sealed SKF Bearing-101603$24.04In stock
3511059076Ferrari Circlip - 11059076$1.36Available, ships in 3-6 days
3593145Ferrari Snap Ring - 93145SupersededOrder 11059076 instead
36103702Ferrari Oil Seal - 103702$13.76Available, ships in 3-6 days
3629265Ferrari Oil Seal - 29265$13.68Available, ships in 3-6 days
3729267Ferrari Bracket - 29267Price on requestContact us for price and availability
3810396580Ferrari Rubber Grommet - 10396580$10.11In stock
3829264Ferrari Gaiter - 29264SupersededOrder 10396580 instead
39101137Ferrari Distributor Drive Oil Seal - 101137$32.95In stock
4094648Ferrari Gasket Washer - 94648$5.63Available, ships in 3-6 days
41101032Ferrari O-Ring - 101032$1.93In stock
4295880323Ferrari Bolt - 95880323Price on requestContact us for price and availability
4510519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
4593798Ferrari Washer - 93798SupersededOrder 10519624 instead
4695850003Ferrari Oil Seal Dist - 95850003$10.35Available, ships in 3-6 days
4711066376Ferrari Circlip D.15 - 11066376Price on requestContact us for price and availability
4830588Ferrari Washer - 30588$32.07Available, ships in 3-6 days
4995860026Ferrari 365 GTB 4 Daytona O Ring-95860026$4.39In stock
50101074Ferrari Carbon Brush - 101074$47.61Available, ships in 3-6 days
5095300068Ferrari Carbon Brush - 95300068SupersededOrder 101074 instead
5195300289Ferrari Rotor Arm - 95300289$108.37Available, ships in 3-6 days
5295300083/4Ferrari Ignition Points Set - 95300083/4$89.85In stock
53100274Ferrari Distributor Retaining Bolt - 100274$28.10Available, ships in 3-6 days
5394834Ferrari Bolt - 94834SupersededOrder 100274 instead
5412601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
5412601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
5595920400Ferrari Stud 8X12 P2 - 95920400$1.84Available, ships in 3-6 days
5595920401Ferrari Stud 8X14 P2 - 95920401$1.84Available, ships in 3-6 days
5695930513Ferrari Washer - 95930513Price on requestContact us for price and availability
57101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
5995891600Ferrari Sealed Ball Bearing - 95891600$38.49Special order, ships in 7-14 days
59111764Ferrari Regulator Box RTT110B - 111764$696.88Available, ships in 3-6 days
10903030Ferrari Bolt - 10903030Price on requestContact us for price and availability
100266Ferrari Dist Drive Gear - 100266SupersededOrder 106189 instead
30453Ferrari Dist Flange - 30453Price on requestContact us for price and availability
100502Ferrari Drive - 100502Price on requestContact us for price and availability
100265Ferrari Flange - 100265Price on requestContact us for price and availability
100286Ferrari Gaiter - 100286SupersededOrder 10396580 instead
106189Ferrari Joint - 106189$128.59Available, ships in 3-6 days
108195Ferrari Joint - 108195SupersededOrder 106189 instead
100264Ferrari Nut - 100264Price on requestContact us for price and availability
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
350278Ferrari Regulator - 350278Price on requestContact us for price and availability
111712Ferrari Spacer - 111712SupersededOrder 106189 instead
10796440Ferrari Split Pin - 10796440Price on requestContact us for price and availability
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
100479Ferrari Voltage Regulator - 100479$1,815.10Available, ships in 3-6 days
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
4146930Ferrari Washer - 4146930Price on requestContact us for price and availability
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
-401252Ferrari 330 GTC/365 4 Daytona Speedometer Cable - 401252$199.98In stock
-29271Ferrari 365GTB4 LH Bank HT Lead Set - 29271$1,044.43Available, ships in 3-6 days
-29270Ferrari 365GTB4 RH Bank HT Lead Set - 29270$1,044.43Available, ships in 3-6 days
-MC3771/1Ferrari 365GTB4 Rpm Cable (RHD) - MC3771/1$198.82Available, ships in 3-6 days
-95300072Ferrari Condenser - 95300072$34.65In stock
-MC2121/9Ferrari Dist Point Screw 95086101 - MC2121/9Price on requestSpecial order, ships in 7-14 days
-112786Ferrari Regulator - 112786$696.88Available, ships in 3-6 days
-100536Ferrari RPM Cable - 100536$176.37Available, ships in 3-6 days

All 365 GTB4 (Daytona) diagrams
