Ferrari 365 GTB4 (Daytona) — Hand Brake Control (diagram 030)

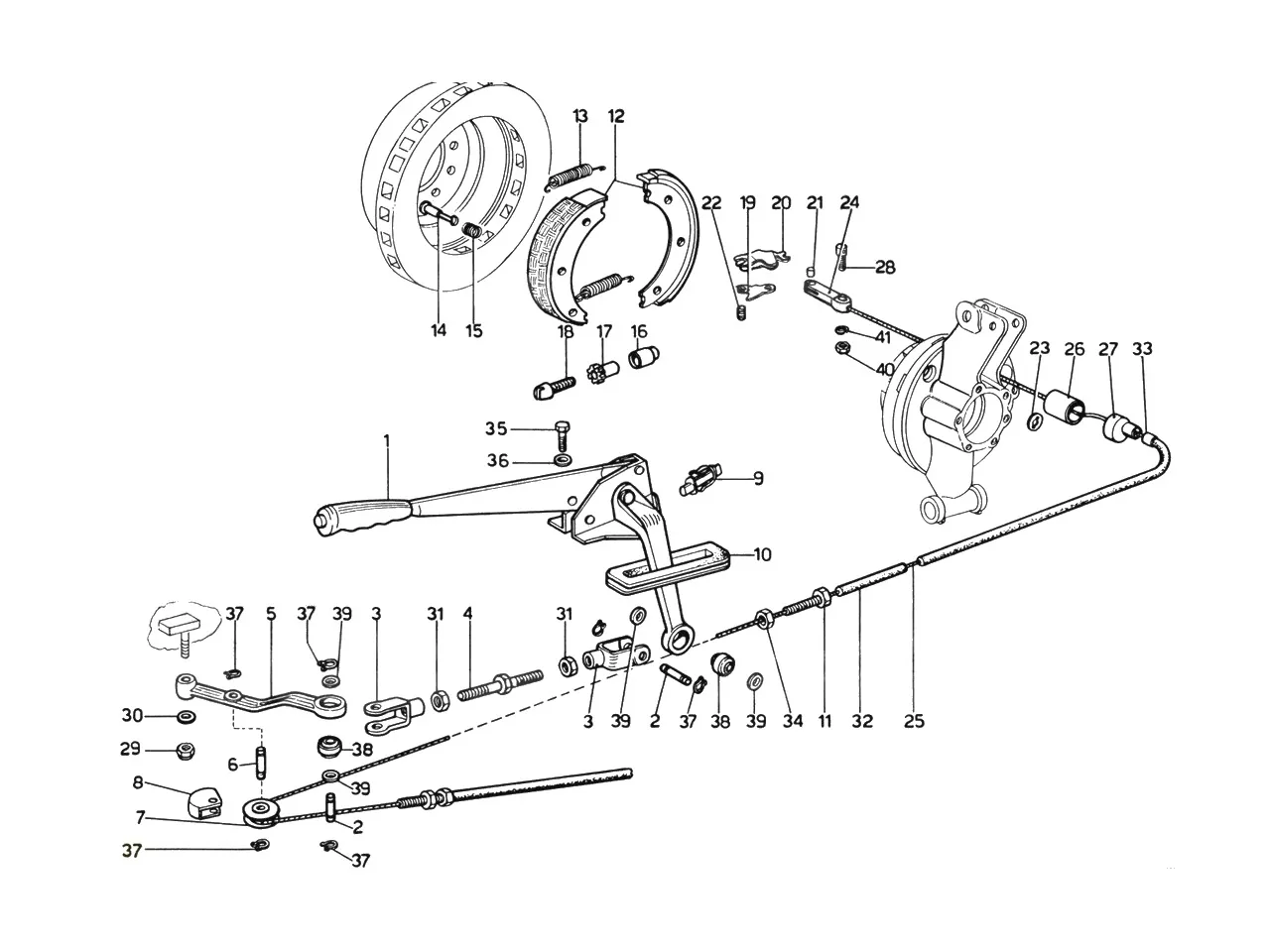

Exploded view of the hand brake control on the Ferrari 365 GTB4 (Daytona), with 67 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 365 GTB4 (Daytona) Hand Brake Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1680500Ferrari Handbrake Control Lever - 680500Price on requestContact us for price and availability
1680872Ferrari Handbrake Control Lever - 680872Price on requestContact us for price and availability
2680502Ferrari Pin - 680502$21.41Available, ships in 3-6 days
3680501Ferrari Fork - 680501$187.97Available, ships in 3-6 days
3680768Ferrari Fork - 680768$178.77Available, ships in 3-6 days
4680503Ferrari Screw Bar - 680503Price on requestContact us for price and availability
4680769Ferrari Adjusting Screw Rod - 680769$81.34Available, ships in 3-6 days
5680505Ferrari Angled Lever - 680505Price on requestContact us for price and availability
6680506Ferrari Pin - 680506$27.50Special order, ships in 7-14 days
769153Ferrari Pulley - 69153Price on requestContact us for price and availability
7101197Ferrari Cable Pulley - 101197$51.21Special order, ships in 7-14 days
869395Ferrari Guide - 69395Price on requestContact us for price and availability
9680990Ferrari Switch - 680990Price on requestContact us for price and availability
10680507Ferrari Gasket - 680507Price on requestContact us for price and availability
11680372Ferrari Control - 680372Price on requestContact us for price and availability
12134847Ferrari Parking Brake Shoes - 134847$97.90In stock
12680509Ferrari Handbrake Shoe Complete - 680509SupersededOrder 134847 instead
12680510Ferrari Handbrake Shoe - 680510SupersededOrder 134847 instead
13101276Ferrari Spring For Handbrake Mechanism - 101276$26.74Available, ships in 3-6 days
13680516Ferrari Spring - 680516SupersededOrder 101276 instead
14101275Ferrari Handbrake Mechanism Pin - 101275$28.80Available, ships in 3-6 days
14680515Ferrari Pin - 680515SupersededOrder 101275 instead
15101277Ferrari Hand Brake Spring - 101277$6.33In stock
15680517Ferrari Spring - 680517SupersededOrder 101277 instead
16680520Ferrari Seat - 680520SupersededOrder 101279 instead
17680544Ferrari Nut - 680544SupersededOrder 101286 instead
18101285Ferrari Hand Brake Threaded Pin - 101285$124.99In stock
18680543Ferrari Pin - 680543SupersededOrder 101285 instead
19680538Ferrari Arm - 680538SupersededOrder 101280 instead
20101281Ferrari Plate For Handbrake Mechanism - 101281$164.88Available, ships in 3-6 days
20680539Ferrari Plate - 680539SupersededOrder 101281 instead
21680540Ferrari Pin - 680540SupersededOrder 101282 instead
22101283Ferrari Pin For Handbrake Mechanism - 101283$37.14Available, ships in 3-6 days
22680541Ferrari Pin - 680541SupersededOrder 101283 instead
23680542Ferrari Retaining Plate - 680542SupersededOrder 101284 instead
24680580Ferrari Arm - 680580Price on requestContact us for price and availability
25105102Ferrari Handbrake Cable - 105102$289.88Available, ships in 3-6 days
25680585Ferrari Cable 2.5m - 680585$289.88Available, ships in 3-6 days
26680582Ferrari Spacer - 680582Price on requestContact us for price and availability
27680586Ferrari Cap - 680586Price on requestContact us for price and availability
28680581Ferrari Cable End - 680581Price on requestContact us for price and availability
29101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
3010519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
3093798Ferrari Washer - 93798SupersededOrder 10519624 instead
3195900703Ferrari Lock Nut - 95900703Price on requestContact us for price and availability
3195519Ferrari Lock Nut - 95519Price on requestContact us for price and availability
3292939Ferrari Outer Cable - 92939$207.67Available, ships in 3-6 days
3394886Ferrari Ferrule - 94886Price on requestContact us for price and availability
36127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
36106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
3711065676Ferrari Circlip - 11065676$0.08Available, ships in 3-6 days
3895910001Ferrari Rose Bearing - 95910001$20.81Available, ships in 3-6 days
3995319Ferrari Washer - 95319Price on requestContact us for price and availability
40103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
101286Ferrari Adjuster For Handbrake Mechanism - 101286$104.50Available, ships in 3-6 days
101200Ferrari Bolt - 101200Price on requestContact us for price and availability
101280Ferrari Hand Brake Control Lever - 101280$114.21Contact us
101188Ferrari Handbrake Switch - 101188$6.73Available, ships in 3-6 days
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
101282Ferrari Pin For Handbrake Mechanism - 101282$24.74Available, ships in 3-6 days
101284Ferrari Retaining Plate For Handbrake Mechanism - 101284$5.12Available, ships in 3-6 days
101279Ferrari Seat For Handbrake Mechanism - 101279$194.48Special order, ships in 7-14 days
105949Ferrari Switch - 105949Price on requestContact us for price and availability
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
-680514Ferrari Handbrake Pin Assy - 680514Price on requestContact us for price and availability
-680519Ferrari Pin Complete - 680519Price on requestContact us for price and availability
