Ferrari 512 BB (Carburetor) — Throttle Control (diagram 010)

Exploded view of the throttle control on the Ferrari 512 BB (Carburetor), with 84 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

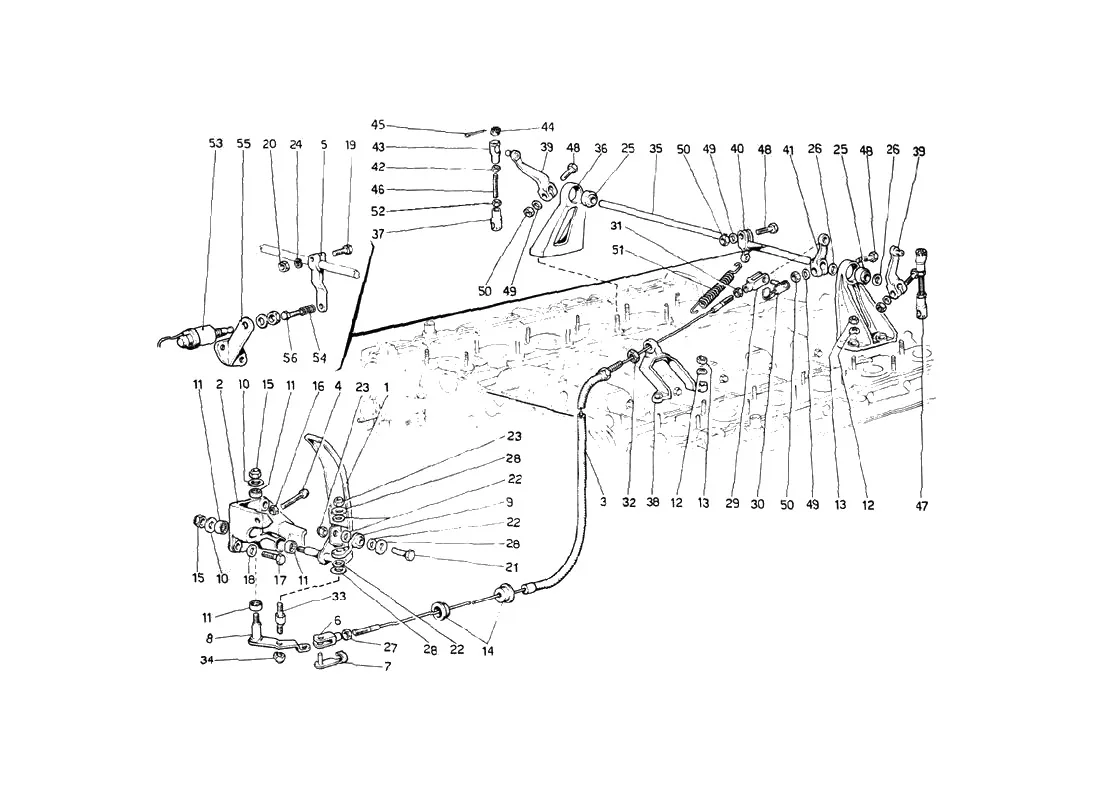

Ferrari 512 BB (Carburetor) Throttle Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1103329Ferrari Accelerator Pedal - 103329SupersededOrder 108578 instead
1108578Ferrari Accelerator Pedal - 108578$492.91Available, ships in 3-6 days
2106587Ferrari Support Accelerator Pedal - 106587Price on requestContact us for price and availability
2110932Ferrari Support Accelerator Pedal - 110932Price on requestContact us for price and availability
4105232Ferrari Control - 105232$6.84Available, ships in 3-6 days
5109245Ferrari Lever - 109245$116.32Available, ships in 3-6 days
6100655Ferrari RH Threaded Fork - 100655Price on requestContact us for price and availability
7100656Ferrari Linkage Clip - 100656$4.41Available, ships in 3-6 days
8105235Ferrari Lever with Thread - 105235$185.19Available, ships in 3-6 days
9105237Ferrari Pedal Link - 105237$143.58Available, ships in 3-6 days
10102683Ferrari Washer - 102683$19.20Available, ships in 3-6 days
11101677Ferrari Roller Bearing - 101677$14.85Available, ships in 3-6 days
1211198074Ferrari/Maserati Washer - 11198074$0.14In stock
1211198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
1316100824Ferrari/Maserati Nut - 16100824$0.30In stock
1316100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
14105369Ferrari Slide - 105369$43.91Available, ships in 3-6 days
1516104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
15101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
1616102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
1616102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
1716135721Ferrari Bolt - 16135721$2.24Available, ships in 3-6 days
1812601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
1812601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
1916043824Ferrari Bolt M8 x 30 - 16043824$0.86Available, ships in 3-6 days
1916043821Ferrari Bolt 8 x 30 UNI 5737 - 16043821SupersededOrder 16043824 instead
2110902621Ferrari Bolt M6 x 25 - 10902621$0.17Available, ships in 3-6 days
2210519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
2210519421Ferrari Washer - 10519421SupersededOrder 10519424 instead
23102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2312574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
24127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
24106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
25107620Ferrari Rose Bearing - 107620$78.14Available, ships in 3-6 days
25122430Ferrari Spherical Bearing - 122430$78.14Available, ships in 3-6 days
26107619Ferrari Spacer - 107619$31.95Available, ships in 3-6 days
2710725911Ferrari RH Thread Nut 6mm - 10725911SupersededOrder 10725914 instead
2710725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
2812643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
33105679Ferrari Stud Bolt - 105679$27.66Special order, ships in 7-14 days
34104030Ferrari/Maserati Nut - 104030$0.88In stock
3416104111Ferrari Nut - 16104111SupersededOrder 104030 instead
35109244Ferrari Shaft - 109244$185.50Available, ships in 3-6 days
36107167Ferrari RH/LH Support - 107167$348.39Available, ships in 3-6 days
36107171Ferrari RH/LH Support Assembly - 107171SupersededOrder 107167 instead
37105619Ferrari LH Thread Ball Joint - 105619$172.79Available, ships in 3-6 days
38106061Ferrari Support - 106061Price on requestContact us for price and availability
39102869Ferrari Lever - 102869Price on requestContact us for price and availability
40102870Ferrari Lever - 102870$244.05Available, ships in 3-6 days
41105258Ferrari Lever - 105258$305.40Available, ships in 3-6 days
4215896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
4215896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
43173999Ferrari Throttle Ball Joint - Right Hand Thread - 173999$12.82In stock
4315149911Ferrari Joint - 15149911SupersededOrder 173999 instead
4415150911Ferrari Plug - 15150911Price on requestContact us for price and availability
4510795101Ferrari Split Pin - 10795101$0.27Available, ships in 3-6 days
46107173Ferrari Adjuster Rod - 107173$26.56Available, ships in 3-6 days
47107169Ferrari Throttle Link Rod - 107169Price on requestContact us for price and availability
4910516671Ferrari Washer - 10516671SupersededOrder 127496 instead
51105260Ferrari Spring - 105260Price on requestContact us for price and availability
52105586Ferrari LH Thread Nut - 105586Price on requestContact us for price and availability
53108485Ferrari Solenoid - 108485Price on requestContact us for price and availability
54107824Ferrari Spring - 107824Price on requestContact us for price and availability
55109246Ferrari Support - 109246Price on requestContact us for price and availability
56107823Ferrari Screw Ver/Us - 107823Price on requestContact us for price and availability
108582Ferrari Lever without Thread - 108582$206.42Available, ships in 3-6 days
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
104584Ferrari RH Support Assembly - 104584SupersededOrder 107167 instead
106369Ferrari RH/LH Support - 106369SupersededOrder 107167 instead
103332Ferrari Support - 103332Price on requestContact us for price and availability
105224Ferrari Support - 105224Price on requestContact us for price and availability
12643724Ferrari/Maserati Washer - 12643724$0.20In stock

All 512 BB (Carburetor) diagrams
