Ferrari 512 BB (Carburetor) — Exhaust System (diagram 011)

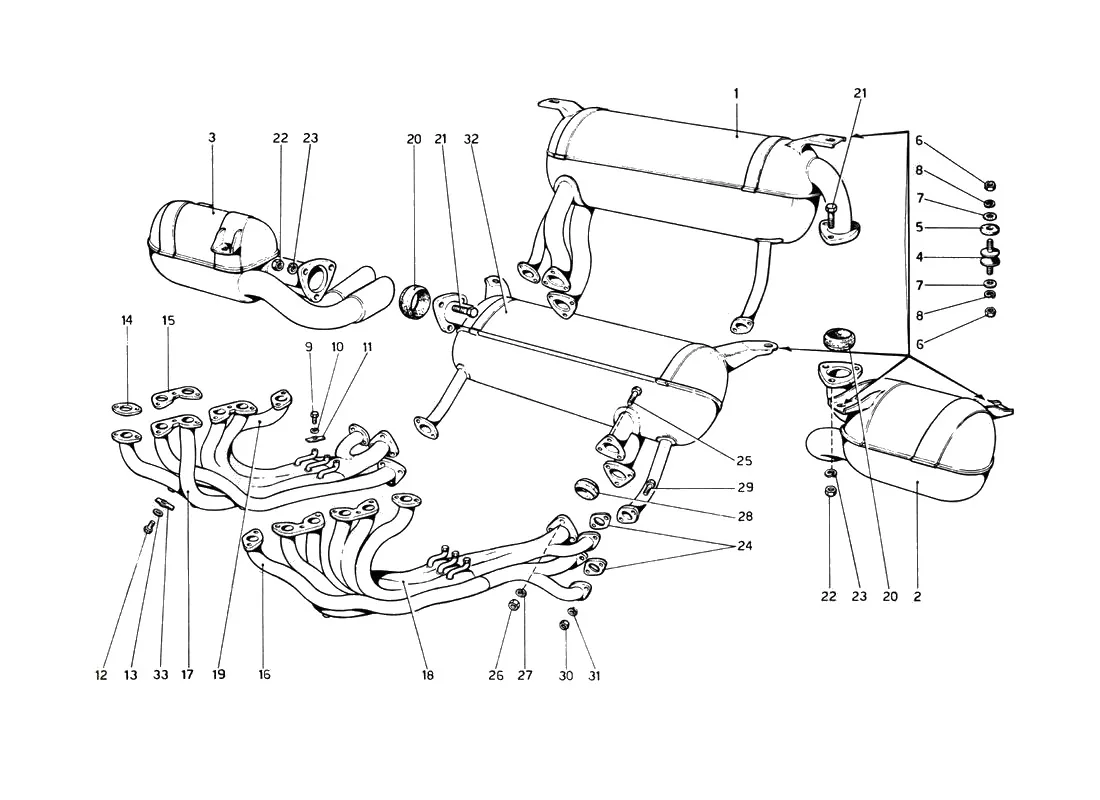

Exploded view of the exhaust system on the Ferrari 512 BB (Carburetor), with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Exhaust System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1109127Ferrari 512BB+I Upr Main Silencer - 109127$16,641.96Available, ships in 3-6 days
1109128Ferrari 512BB+I Exhaust Set (2 Mains & 2 Tailpipe Boxes) - 109128$16,641.96Available, ships in 3-6 days
2110310Ferrari 512BB+I LH Tail Silencer - 110310$16,641.96Available, ships in 3-6 days
3110309Ferrari 512BB+I RH Tail Silencer - 110309$16,641.96Available, ships in 3-6 days
4109453Ferrari Rubber Exhaust Mount - 109453$37.98In stock
5146700Ferrari Gasket - 146700$2.03Available, ships in 3-6 days
5105923Ferrari Gasket - 105923SupersededOrder 146700 instead
616100824Ferrari/Maserati Nut - 16100824$0.30In stock
616100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
712646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
8127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
8106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
9103748Ferrari Brass Bolt - 103748$22.56Available, ships in 3-6 days
10103749Ferrari Exhaust System Washer - 103749$0.55In stock
11103587Ferrari Locktab - 103587$14.45Available, ships in 3-6 days
1211903240Ferrari Exhaust Plug - 11903240SupersededOrder 110860 instead
1310298460Ferrari Washer - 10298460$1.10In stock
14147630Ferrari Copper Exhaust Gasket - 147630$29.99In stock
14102015Ferrari Exhaust Manifold Gasket - 102015SupersededOrder 147630 instead
15147641Ferrari Copper Exhaust Gasket-147641$15.35In stock
15103595Ferrari Exhaust Gasket - 103595SupersededOrder 147641 instead
16110001Ferrari 512BB+I LH Front Exhaust Manifold - 110001Price on requestContact us for price and availability
17110002Ferrari 512BB+I RH Front Exhaust Manifold - 110002Price on requestContact us for price and availability
18110003Ferrari 512BB+I LH Rear Exhaust Manifold - 110003Price on requestContact us for price and availability
19110004Ferrari 512BB+I RH Rear Exhaust Manifold - 110004Price on requestContact us for price and availability
20146696Ferrari Exhaust Pipe Donut Gasket - 146696$39.95In stock
20110313Ferrari Exhaust O-Ring - 110313SupersededOrder 146696 instead
2116044024Ferrari Bolt - 16044024$0.72In stock
2116044021Ferrari Bolt - 16044021SupersededOrder 16044024 instead
22114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
22105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
24106709Ferrari Gasket Exhaust - 106709Price on requestContact us for price and availability
28154979Ferrari Exhaust Pipe Donut Gasket - 154979$24.40In stock
28108483Ferrari Gasket O-Ring - 108483SupersededOrder 154979 instead
29102026Ferrari Exhaust Bolt - 102026$61.60Available, ships in 3-6 days
3010720240Ferrari 7mm Brass Nut - 10720240$10.33Available, ships in 3-6 days
31106851Ferrari Spring Washer 7mm - 106851$0.84Available, ships in 3-6 days
32LA0176SRSFerrari 512 BB/BBi - Larini 'Sports' Exhaust Muffler - LA0176SRS$5,867.71In stock
3314198901Ferrari Locking Plate - 14198901$9.42Available, ships in 3-6 days
20429Ferrari Bolt - 20429SupersededOrder 103748 instead
100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
147697Ferrari Exhaust Pipe Gasket - 147697$9.35In stock
102023Ferrari Gasket - 102023Price on requestContact us for price and availability
20412Ferrari Gasket - 20412Price on requestContact us for price and availability
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
95304Ferrari Nut - 95304SupersededOrder 114748 instead
119631Ferrari Screw - 119631SupersededOrder 16044024 instead
20242Ferrari Single Exhaust Manifold Gasket - 20242SupersededOrder 147630 instead

All 512 BB (Carburetor) diagrams
