Ferrari 512 BB (Carburetor) — Cooling System (diagram 014)

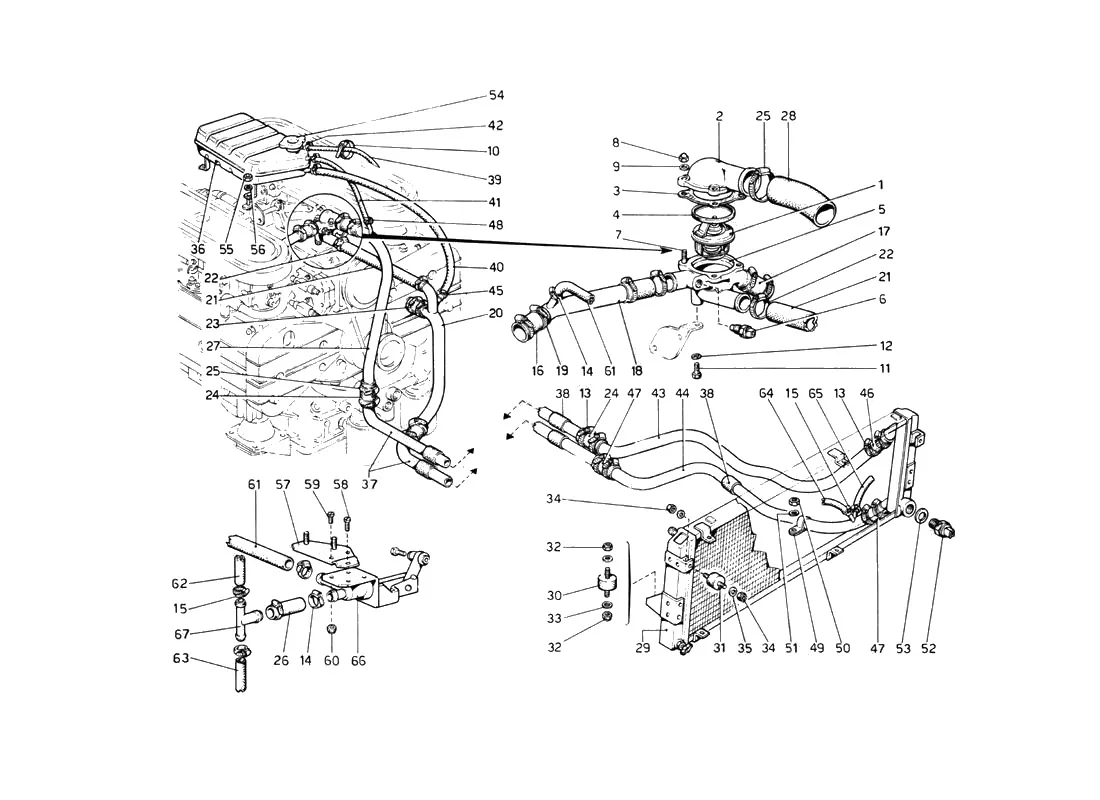

Exploded view of the cooling system on the Ferrari 512 BB (Carburetor), with 120 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Cooling System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1108135Ferrari Thermostat-108135$49.50In stock
2102911Ferrari Housing - 102911$927.97Available, ships in 3-6 days
2102911/UFerrari Housing - 102911/U$927.97Available, ships in 3-6 days
3147638Ferrari Thermostat Gasket - 147638$10.98In stock
3102912Ferrari Thermostat Gasket - 102912SupersededOrder 147638 instead
4102913Ferrari 365/512 Thermostat Seal - 102913$34.85In stock
5106430Ferrari Mixer Case - 106430Price on requestContact us for price and availability
5106563Ferrari Mixer Case Complete - 106563Price on requestContact us for price and availability
6104628Ferrari Water-Oil Temperature Switch - 104628$53.35In stock
711500321Ferrari Stud - 11500321Price on requestContact us for price and availability
8100044Ferrari Cam Cover Nut - 10pack - 100044$9.85In stock
912601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
912601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
10103755Ferrari Cable Tie - 103755Price on requestContact us for price and availability
1116043321Ferrari Bolt - 16043321SupersededOrder 16043324 instead
1116043324Ferrari Screw M8 x 18 - 16043324$0.33Available, ships in 3-6 days
12127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1210516671Ferrari Washer - 10516671SupersededOrder 127496 instead
13102958Ferrari Jubilee Clip - 102958Price on requestContact us for price and availability
14104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
1413000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
15100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
16AW5500000Ferrari Testarossa Cooling Hose Kit - AW5500000$247.50In stock
16121166Ferrari Coolant Hose - 121166$27.38In stock
16105455Ferrari Water Hose - 105455SupersededOrder 121166 instead
17102791Ferrari Coolant Hose - 102791$57.75In stock
18105456Ferrari Pipe - 105456Price on requestContact us for price and availability
19168220Ferrari Hose Clip 44mm - 168220$3.26Available, ships in 3-6 days
19105672Ferrari Hose Clamp - 105672$3.26Available, ships in 3-6 days
20110899Ferrari Coolant Pipe - 110899Price on requestContact us for price and availability
21106725Ferrari Water Hose - 106725$243.93Available, ships in 3-6 days
23100622Ferrari Coolant Hose-100622$25.30In stock
24AW5320000Ferrari 308 2V Carb Cooling Hose Kit - AW5320000$184.80In stock
24AW5322000Ferrari 308 2V FI Cooling Hose Kit - AW5322000$184.80In stock
24AW5328000Ferrari 328 Cooling Hose Kit - AW5328000$152.90In stock
24121258Ferrari Coolant Hose-121258$26.40In stock
24AW5324000Ferrari 308 QV Cooling Hose Kit - AW5324000$184.80In stock
24102957Ferrari Coolant Hose - 102957$20.68In stock
2513000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
25105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
26110277Ferrari Water Hose - 110277$29.03Available, ships in 3-6 days
27107086Ferrari Water Pipe - 107086Price on requestContact us for price and availability
28105302Ferrari Water Hose - 105302SupersededOrder 121258 instead
29109651Ferrari Water Radiator - 109651Price on requestContact us for price and availability
30101495Ferrari Support Mount - 101495$20.25In stock
31102947Ferrari Vibration Dampening Support - 102947$8.31In stock
3216100824Ferrari/Maserati Nut - 16100824$0.30In stock
3216100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
33106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
34102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
3412575411Ferrari Nyloc Nut M6 x 6 - 12575411SupersededOrder 12575421 instead
3512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
36107410Ferrari Coolant Header Tank - 107410$1,098.88In stock
37105384Ferrari Water Tube (Stainless) - 105384$519.28Available, ships in 3-6 days
38105385Ferrari Cooling Hose - 105385$52.78In stock
39107446Ferrari Overflow Hose - 107446Price on requestContact us for price and availability
40122400Ferrari Water Hose - 122400$148.37Available, ships in 3-6 days
40105961Ferrari Pipe - 105961SupersededOrder 122400 instead
41107102Ferrari Hose 165mm - 107102Price on requestContact us for price and availability
42101296Ferrari Clip - 101296Price on requestContact us for price and availability
43105386Ferrari Water Tube - 105386Price on requestContact us for price and availability
44105387Ferrari Tube Radiator - 105387Price on requestContact us for price and availability
4513000590Ferrari Hose Clip 25 - 40mm - 13000590$1.48Available, ships in 3-6 days
45105622Ferrari Hose Clip - 105622$1.48Available, ships in 3-6 days
46106363Ferrari Top Rad Hose - 106363$122.63Available, ships in 3-6 days
47105190Ferrari Coolant Hose - 105190$26.40In stock
47AW5108002Ferrari Mondial QV Cabrio Cooling Hose Kit - AW5108002$195.90In stock
47AW5108003Ferrari Mondial QV Coupe Cooling Hose Kit - AW5108003$180.50In stock
4813000190Ferrari Hose Clip 10-16mm - 13000190$1.09Available, ships in 3-6 days
4812179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
49104480Ferrari Clamp - 104480Price on requestContact us for price and availability
5015896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
51127494Ferrari Lock Washer - 127494$0.50In stock
5110516471Ferrari Washer - 10516471SupersededOrder 127494 instead
52168008Ferrari Radiator Fan Switch - 168008$68.75In stock
52101507Ferrari Radiator Thermo Sender - 101507SupersededOrder 168008 instead
53101508Ferrari Gasket D. 22.5 - 30 x 1.5 - 101508$2.38Available, ships in 3-6 days
54101499Ferrari Expansion Tank/Radiator Cap 0.9 - 101499$23.10In stock
54101499-2Ferrari Expansion Tank/Radiator Cap 0.9 - 101499-2$23.10In stock
54101499/AFerrari Radiator Pressure Cap (0.9 Bar) - 101499/A$30.26Available, ships in 3-6 days
57110093Ferrari Bracket - 110093Price on requestContact us for price and availability
58110105Ferrari Self Tapping Bolt - 110105$1.28Available, ships in 3-6 days
59110106Ferrari Screw - 110106$0.86Available, ships in 3-6 days
60102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
6012574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
61108503Ferrari Water Hose - 108503Price on requestContact us for price and availability
62106347Ferrari RH Hose From Faucet To Heater - 106347Price on requestContact us for price and availability
63106348Ferrari LH Hose From Faucet To Heater - 106348Price on requestContact us for price and availability
64106349Ferrari RH Tube LHD - 106349Price on requestContact us for price and availability
65106350Ferrari Water Heater Hose - 106350Price on requestContact us for price and availability
66110066Ferrari Heater Valve-110066$482.11In stock
67104303Ferrari T Piece Union - 104303Price on requestContact us for price and availability
12180090Ferrari Clamp - 12180090$1.34Available, ships in 3-6 days
95026Ferrari Clamp 29-41 - 95026Price on requestContact us for price and availability
10168590Ferrari Clip - 10168590SupersededOrder 13000190 instead
104879Ferrari Clip - 104879SupersededOrder 13000190 instead
137644Ferrari Expansion Tank/Radiator Cap 1.1 Bar - 137644$23.65In stock
12173890Ferrari Fuel Hose Clip 25-40 - 12173890$1.48Available, ships in 3-6 days
112492Ferrari Hose - 112492Price on requestContact us for price and availability
26807Ferrari Hose - 26807Price on requestContact us for price and availability
800310Ferrari Hose - 800310Price on requestContact us for price and availability
108785Ferrari Hose Clip - 108785$3.26Available, ships in 3-6 days
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
12174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
220451Ferrari Housing - 220451Price on requestContact us for price and availability
100441Ferrari Jubilee Clip - 100441Price on requestContact us for price and availability
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
105110Ferrari Mixer Case - 105110Price on requestContact us for price and availability
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
12575421Ferrari Nyloc Nut M6 x 6 - 12575421$0.40Available, ships in 3-6 days
127610Ferrari Pipe - 127610Price on requestContact us for price and availability
11500324Ferrari Stud - 11500324Price on requestContact us for price and availability
800352Ferrari Thermo Switch - 800352SupersededOrder 168008 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
105301Ferrari Water Pipe - 105301Price on requestContact us for price and availability
