Ferrari 512 BB (Carburetor) — Gear Box Controls (diagram 023)

Exploded view of the gear box controls on the Ferrari 512 BB (Carburetor), with 87 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

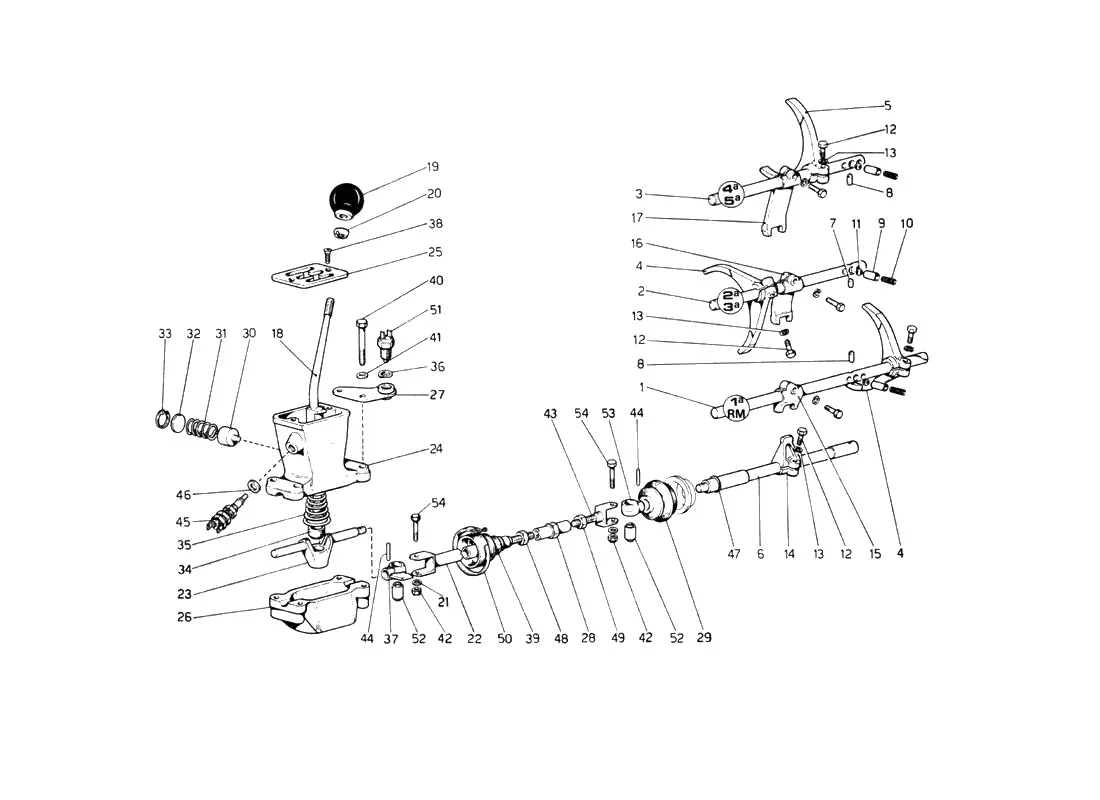

Ferrari 512 BB (Carburetor) Gear Box Controls exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1107451Ferrari Selector Shaft 1st & RM - 107451$107.08Available, ships in 3-6 days
2107452Ferrari Selector Shaft 2nd & 3rd - 107452$102.75Available, ships in 3-6 days
3107453Ferrari Selector Shaft 4th & 5th - 107453Price on requestContact us for price and availability
4107374Ferrari Selector Fork 1st & 2nd & 3rd & RM - 107374Price on requestContact us for price and availability
5107375Ferrari Selector Fork 4th & 5th - 107375$2,619.96Available, ships in 3-6 days
6107377Ferrari Rod - 107377SupersededOrder 150881 instead
6150881Ferrari Control Rod - 150881$180.20Available, ships in 3-6 days
7107454Ferrari Selector Pin - 107454Price on requestContact us for price and availability
8103011Ferrari Selector Pin - 103011$105.09Available, ships in 3-6 days
9100749Ferrari Bush - 100749$98.71Available, ships in 3-6 days
10100750Ferrari Gear Selector Fork Spring - 100750$2.48In stock
11101612Ferrari Ball - 101612$1.96Available, ships in 3-6 days
1216043521Ferrari Bolt - 16043521SupersededOrder 16043534 instead
13127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1310516671Ferrari Washer - 10516671SupersededOrder 127496 instead
14106217Ferrari Control Fork Lever - 106217$240.54Available, ships in 3-6 days
15106221Ferrari Control Fork 1st & RM - 106221$215.55Available, ships in 3-6 days
16106222Ferrari Control Fork 2nd & 3rd - 106222$50.24Available, ships in 3-6 days
17106223Ferrari Control Fork 4th & 5th - 106223$235.31Available, ships in 3-6 days
18108874Ferrari Gear Lever - 108874$471.92Available, ships in 3-6 days
19103301Ferrari Gear Shift Knob - 103301$178.88In stock
20108010Ferrari Retaining Nut - 108010$59.15In stock
2110519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
2110519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
22107378Ferrari Rod (2 piece) - 107378$256.85Special order, ships in 7-14 days
23107023Ferrari Gear Lever Shaft LHD - 107023SupersededOrder 127443 instead
23127443Ferrari Pin With Joint LHD - 127443$316.65Available, ships in 3-6 days
24108848Ferrari Gearbox Casing Complete - 108848Price on requestContact us for price and availability
24105438Ferrari Gearbox Casing - 105438Price on requestContact us for price and availability
25148452Ferrari Gear Lever Selector Gate - 148452$299.35In stock
25105439Ferrari Selector - 105439SupersededOrder 148452 instead
26106844Ferrari Gearbox Top - 106844Price on requestContact us to order
27108215Ferrari Bush - 108215$50.06Available, ships in 3-6 days
27106845Ferrari Bush - 106845SupersededOrder 108215 instead
28103321Ferrari Adjuster - 103321$92.29Available, ships in 3-6 days
29106168Ferrari Gear Box Shift Shaft Boot - 106168$31.74In stock
30103317Ferrari Lever Return Pin - 103317Price on requestContact us for price and availability
31103318Ferrari Gear Lever Spring - 103318$8.34Available, ships in 3-6 days
32103319Ferrari Core Plug - 103319$39.37Special order, ships in 7-14 days
33103326Ferrari Circlip - 103326$1.38In stock
34127446Ferrari Gear Lever Bush - 127446$44.16Available, ships in 3-6 days
34108214Ferrari Bush - 108214SupersededOrder 127446 instead
35108823Ferrari Spring - 108823$7.49Available, ships in 3-6 days
35108531Ferrari Spring - 108531$20.59Available, ships in 3-6 days
36107021Ferrari Wavy Washer - 107021$1.94Available, ships in 3-6 days
37109567Ferrari Bush - 109567$94.49Available, ships in 3-6 days
38101619Ferrari Selector Gate Screw - 101619$4.55Available, ships in 3-6 days
39106687Ferrari Dust Cover - 106687$17.33Available, ships in 3-6 days
4016136621Ferrari Bolt - 16136621$2.99Available, ships in 3-6 days
4112601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
4112601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
42101309Ferrari Nut - 101309Price on requestContact us for price and availability
43106820Ferrari Fork - 106820Price on requestContact us for price and availability
44103327Ferrari Roll Pin - 103327$3.79Available, ships in 3-6 days
45104320Ferrari Switch (Rev Light) - 104320SupersededOrder 948827 instead
4612601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
4612646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
47105140Ferrari O-Ring - 105140$2.75In stock
4810791221Ferrari RH Threaded Nut M12 x 1.5 x 7 - 10791221$7.19Available, ships in 3-6 days
4910791924Ferrari LH Threaded Nut - 10791924$45.56Available, ships in 3-6 days
4910791921Ferrari LH Threaded Nut - 10791921SupersededOrder 10791924 instead
5010291490Ferrari Clip - 10291490Price on requestContact us for price and availability
51109569Ferrari Switch - 109569$54.18Available, ships in 3-6 days
52139555Ferrari Shift Rod Bushing - 139555$52.80In stock
52106814Ferrari Silent Bloc - 106814SupersededOrder 139555 instead
53109562Ferrari T Section Joint RHD - 109562$77.13Available, ships in 3-6 days
54107830Ferrari Bolt M8 x 1 x 45 - 107830$8.95Special order, ships in 7-14 days
521362Ferrari Adjuster - 521362SupersededOrder 103321 instead
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
106821Ferrari Bolt - 106821SupersededOrder 107830 instead
107013Ferrari Bush - 107013SupersededOrder 127446 instead
522515Ferrari Core Plug - 522515SupersededOrder 103319 instead
523148Ferrari Gear Lever Knob - 523148SupersededOrder 103301 instead
127444Ferrari Gear Lever Selector Gate - 127444SupersededOrder 148452 instead
111445Ferrari Gear Lever Shaft LHD - 111445SupersededOrder 127443 instead
122155Ferrari Gearbox Casing Complete - 122155Price on requestContact us for price and availability
135986Ferrari Gearbox Casing Complete - 135986Price on requestContact us for price and availability
522514Ferrari Lever Return Pin - 522514Price on requestContact us for price and availability
520465Ferrari Nut - 520465SupersededOrder 10791924 instead
523971Ferrari Nut - 523971SupersededOrder 10791924 instead
115980Ferrari Reverse Light Switch - 115980SupersededOrder 948827 instead
948827Ferrari Reverse Motion Switch - 948827$1,101.47Special order, ships in 7-14 days
111870Ferrari Rod - 111870SupersededOrder 150881 instead
106066Ferrari Selector Fork 1st & 2nd & 3rd & RM - 106066Price on requestContact us for price and availability
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead

All 512 BB (Carburetor) diagrams
