Ferrari 512 BB (Carburetor) — Hand-Brake Control (diagram 028)

Exploded view of the hand-brake control on the Ferrari 512 BB (Carburetor), with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

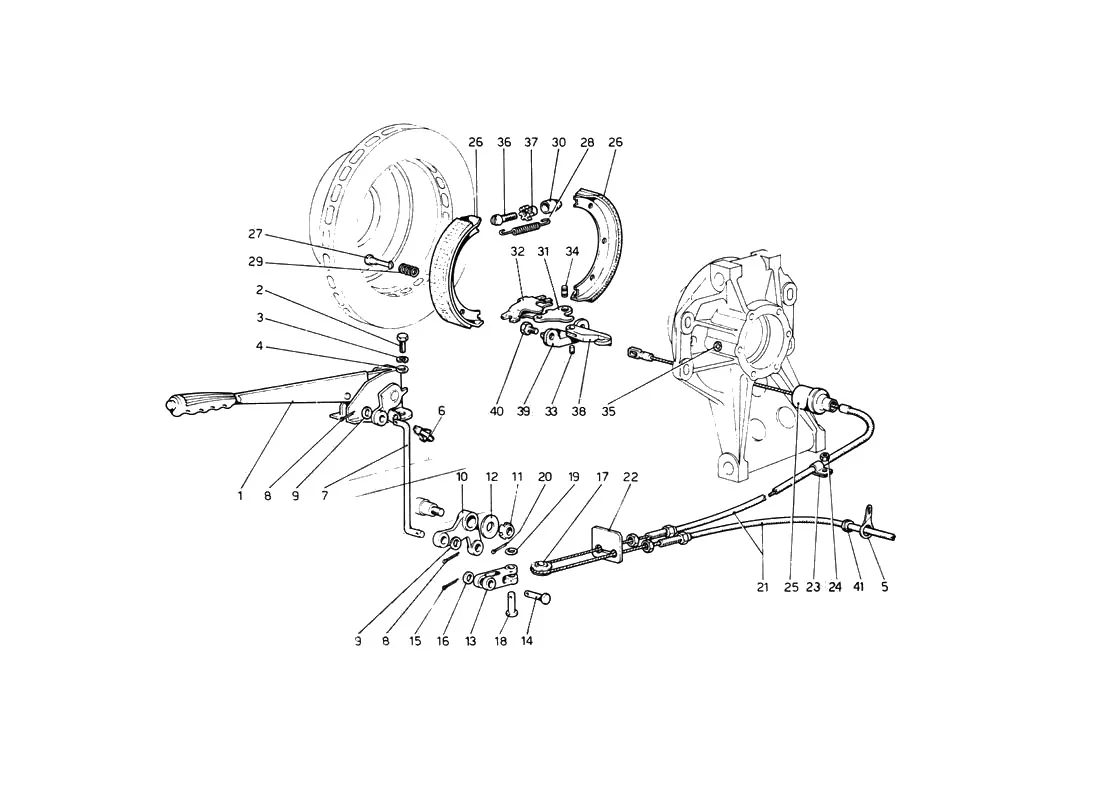

Ferrari 512 BB (Carburetor) Hand-Brake Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1109581Ferrari Handbrake Lever - 109581Price on requestContact us for price and availability
216043221Ferrari Bolt M8 x 16 - 16043221$0.19Available, ships in 3-6 days
3127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
310516671Ferrari Washer - 10516671SupersededOrder 127496 instead
410519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
410519621Ferrari Washer - 10519621SupersededOrder 10519624 instead
5107161Ferrari Bracket - 107161Price on requestContact us for price and availability
6105949Ferrari Switch - 105949Price on requestContact us for price and availability
7105418Ferrari Rod - 105418Price on requestContact us for price and availability
810734301Ferrari Split Pin 2X18 - 10734301$0.13Available, ships in 3-6 days
912625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
912625201Ferrari Washer - 12625201SupersededOrder 12625224 instead
10101193Ferrari Lever - 101193$341.49Available, ships in 3-6 days
11100865Ferrari Ring Nut - 100865Price on requestContact us for price and availability
12100853Ferrari Washer - 100853Price on requestContact us for price and availability
13101194Ferrari H/Brake Lever Fork - 101194$241.40Available, ships in 3-6 days
14101195Ferrari Clevis Pin - 101195$45.96Available, ships in 3-6 days
1610519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
17101197Ferrari Cable Pulley - 101197$51.21Special order, ships in 7-14 days
18101196Ferrari Pin - 101196Price on requestContact us for price and availability
21105420Ferrari Handbrake Cable - 105420$433.36Available, ships in 3-6 days
21105420/AFerrari Handbrake Cable - 105420/A$433.36Available, ships in 3-6 days
22105419Ferrari Plate - 105419$9.08Available, ships in 3-6 days
23103529Ferrari Cable Retaining P Clip Bracket - 103529Price on requestContact us for price and availability
24102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2412574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
25132129Ferrari Handbrake Cable Cover - 132129$102.85Available, ships in 3-6 days
25105735Ferrari Protection - 105735SupersededOrder 132129 instead
26134847Ferrari Parking Brake Shoes - 134847$97.90In stock
26101270Ferrari Handbrake Shoe - 101270SupersededOrder 134847 instead
26101269Ferrari Handbrake Shoe Complete - 101269Price on requestContact us for price and availability
27101275Ferrari Handbrake Mechanism Pin - 101275$28.80Available, ships in 3-6 days
28101276Ferrari Spring For Handbrake Mechanism - 101276$26.74Available, ships in 3-6 days
29101277Ferrari Hand Brake Spring - 101277$6.33In stock
30101279Ferrari Seat For Handbrake Mechanism - 101279$194.48Special order, ships in 7-14 days
31101280Ferrari Hand Brake Control Lever - 101280$114.21Contact us
32101281Ferrari Plate For Handbrake Mechanism - 101281$164.88Available, ships in 3-6 days
33101282Ferrari Pin For Handbrake Mechanism - 101282$24.74Available, ships in 3-6 days
34101283Ferrari Pin For Handbrake Mechanism - 101283$37.14Available, ships in 3-6 days
35101284Ferrari Retaining Plate For Handbrake Mechanism - 101284$5.12Available, ships in 3-6 days
35101284/AFerrari Retaining Plate For Handbrake Mechanism - 101284/A$7.97Available, ships in 3-6 days
36101285Ferrari Hand Brake Threaded Pin - 101285$124.99In stock
36101278Ferrari Adjuster Complete - 101278Price on requestContact us for price and availability
37101286Ferrari Adjuster For Handbrake Mechanism - 101286$104.50Available, ships in 3-6 days
38105270Ferrari Handbrake Cable Fork - 105270$71.98Available, ships in 3-6 days
39106243Ferrari Block - 106243$252.84In stock
40106242Ferrari Bolt - 106242$6.54Available, ships in 3-6 days
4110396580Ferrari Rubber Grommet - 10396580$10.11In stock
41100286Ferrari Gaiter - 100286SupersededOrder 10396580 instead
680538Ferrari Arm - 680538SupersededOrder 101280 instead
680970Ferrari Clamp - 680970Price on requestContact us for price and availability
29264Ferrari Gaiter - 29264SupersededOrder 10396580 instead
101188Ferrari Handbrake Switch - 101188$6.73Available, ships in 3-6 days
680544Ferrari Nut - 680544SupersededOrder 101286 instead
680540Ferrari Pin - 680540SupersededOrder 101282 instead
680757Ferrari Pin - 680757Price on requestContact us for price and availability
69153Ferrari Pulley - 69153Price on requestContact us for price and availability
680542Ferrari Retaining Plate - 680542SupersededOrder 101284 instead
680520Ferrari Seat - 680520SupersededOrder 101279 instead
680990Ferrari Switch - 680990Price on requestContact us for price and availability
105688Ferrari Washer - 105688Price on requestContact us for price and availability
500496Ferrari Washer - 500496Price on requestContact us for price and availability
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
-101274Ferrari Spring Assy - 101274Price on requestContact us for price and availability
