Ferrari 512 TR — Lamps (diagram 124)

Exploded view of the lamps on the Ferrari 512 TR, with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

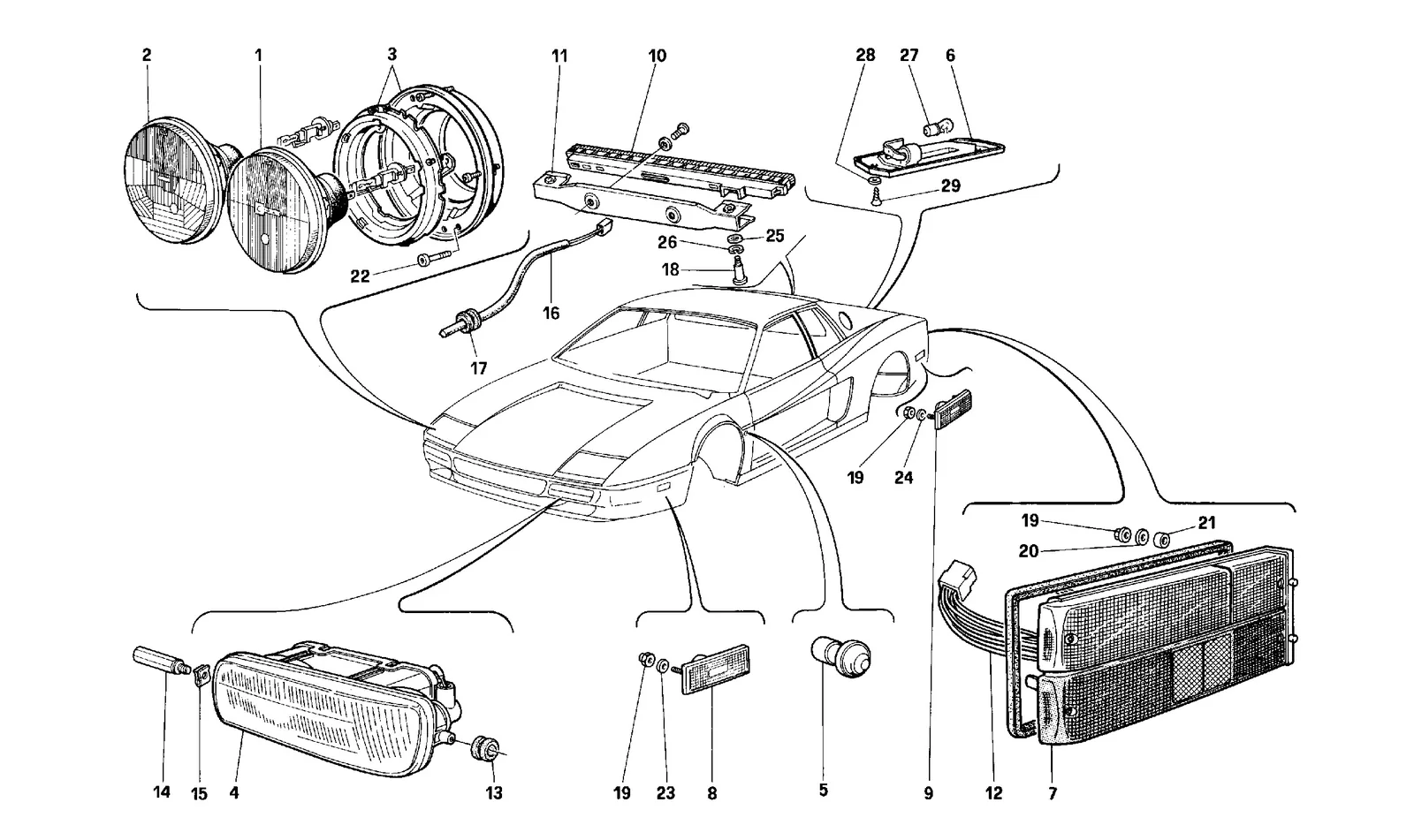

Ferrari 512 TR Lamps exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1149637Ferrari Main Beam Light Unit - 149637Price on requestContact us for price and availability
161610500Ferrari Main Beam Light Unit - 61610500$66.81Available, ships in 3-6 days
1150749Ferrari Main Beam Light Unit - 150749$220.32Available, ships in 3-6 days
1152698Ferrari Main Beam Light Unit - 152698Price on requestContact us for price and availability
2149638Ferrari Dip Light Unit LHD - 149638Price on requestContact us for price and availability
261610600Ferrari Low Beam Lamp - Sealed Beam - 61610600$65.49Available, ships in 3-6 days
2150748Ferrari Low Beam Lamp - 150748Price on requestContact us for price and availability
2152699Ferrari Low Beam Lamp - 152699$275.37Available, ships in 3-6 days
2150539Ferrari Dip Beam Light Unit RHD - 150539$408.81Available, ships in 3-6 days
361646400Ferrari RH Head Lamp Housing Main Beam - 61646400Price on requestContact us for price and availability
361646500Ferrari LH Head Lamp Housing Main Beam - 61646500Price on requestContact us for price and availability
361646600Ferrari RH Head Lamp Housing Dip Beam - 61646600Price on requestContact us for price and availability
361646700Ferrari LH Head Lamp Housing Dip Beam - 61646700Price on requestContact us for price and availability
4149032Ferrari LH Front Side/Indicator Lamp Complete - 149032$1,808.26Available, ships in 3-6 days
4147183Ferrari LH Front Light - 147183Price on requestContact us for price and availability
4152658Ferrari LH Front Light - 152658Price on requestContact us for price and availability
4149033Ferrari RH Front Side/Indicator Lamp Complete - 149033$1,738.65Available, ships in 3-6 days
4147182Ferrari RH Front Light - 147182Price on requestContact us for price and availability
4152657Ferrari RH Front Light - 152657Price on requestContact us for price and availability
4149032/LFerrari LH Front Side/Indicator Lamp Lenses - 149032/L$1,808.26Available, ships in 3-6 days
4149033/LFerrari RH Front Side/Indicator Lamp Lenses - 149033/L$1,738.65Available, ships in 3-6 days
5162902Ferrari Side Marker Lamp Assembly - 162902$24.99Contact us
561830400Ferrari Lamp Wing Repeater - 61830400SupersededOrder 162902 instead
6146446Ferrari Number Plate Lamp - 146446SupersededOrder 186180 instead
7149642Ferrari LH Rear Lamp Complete - 149642Price on requestContact us for price and availability
7147185Ferrari LH Rear Lamp Complete - 147185$1,981.25Available, ships in 3-6 days
7149641Ferrari RH Rear Lamp Complete - 149641$1,906.80Available, ships in 3-6 days
7147184Ferrari RH Rear Lamp Complete - 147184Price on requestContact us for price and availability
7147185/AFerrari LH Rear Lamp Complete - 147185/A$1,981.25Available, ships in 3-6 days
8147563Ferrari Front Side - Marker - 147563$67.43Available, ships in 3-6 days
9140594Ferrari Rear Side - Marker - 140594$67.43Available, ships in 3-6 days
1063077500Ferrari Rear Stop Light - 63077500$135.80Available, ships in 3-6 days
1163077300Ferrari Support - 63077300$44.39Available, ships in 3-6 days
12150190Ferrari Rear Light Cable - 150190$965.75Available, ships in 3-6 days
12150211Ferrari Rear Light Cable - 150211Price on requestContact us for price and availability
1310458187Ferrari Rubber Grommet - 10458187$11.42Available, ships in 3-6 days
1462771200Ferrari Pin - 62771200Price on requestContact us for price and availability
1562770000Ferrari Spire Clip - 62770000$0.63Available, ships in 3-6 days
16150059Ferrari Cables - 150059$24.15Available, ships in 3-6 days
1710396380Ferrari Rubber Ring - 10396380$0.31Available, ships in 3-6 days
1862771000Ferrari Screw - 62771000$5.21Available, ships in 3-6 days
1911673111Ferrari Nut - 11673111$0.52Available, ships in 3-6 days
1914084111Ferrari Nut - 14084111SupersededOrder 11673111 instead
2013577701Ferrari Washer 5.15 - 15 x 1.2 - 13577701$0.19Available, ships in 3-6 days
21104339Ferrari Exhaust Strap Spacer - 104339$7.80Available, ships in 3-6 days
2213273911Ferrari Screw TCIC M5 x 10 - 13273911$0.38Available, ships in 3-6 days
2312638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
2312638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
2412624101Ferrari Washer - 12624101$0.12Available, ships in 3-6 days
2510519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
26127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
2710857790Ferrari Bulb 12V 5W - 10857790$3.47Available, ships in 3-6 days
2814496277Ferrari Washer - 14496277$1.48Available, ships in 3-6 days
2915687375Ferrari Screw - 15687375$0.60In stock
2915687378Ferrari Screw - 15687378SupersededOrder 15687375 instead
109388Ferrari Number Plate Lamp - 109388SupersededOrder 186180 instead
175204Ferrari Number Plate Lamp - 175204SupersededOrder 186180 instead
60044906Ferrari Number Plate Lamp - 60044906SupersededOrder 186180 instead
60866600Ferrari Sealed Beam - 60866600$123.34Available, ships in 3-6 days
60866700Ferrari Sealed Beam - 60866700$145.92Available, ships in 3-6 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
61646800Ferrari Wing Repeater - 61646800SupersededOrder 162902 instead
