Ferrari 575M Maranello — Brake System -Valid For Gd- (diagram 045)

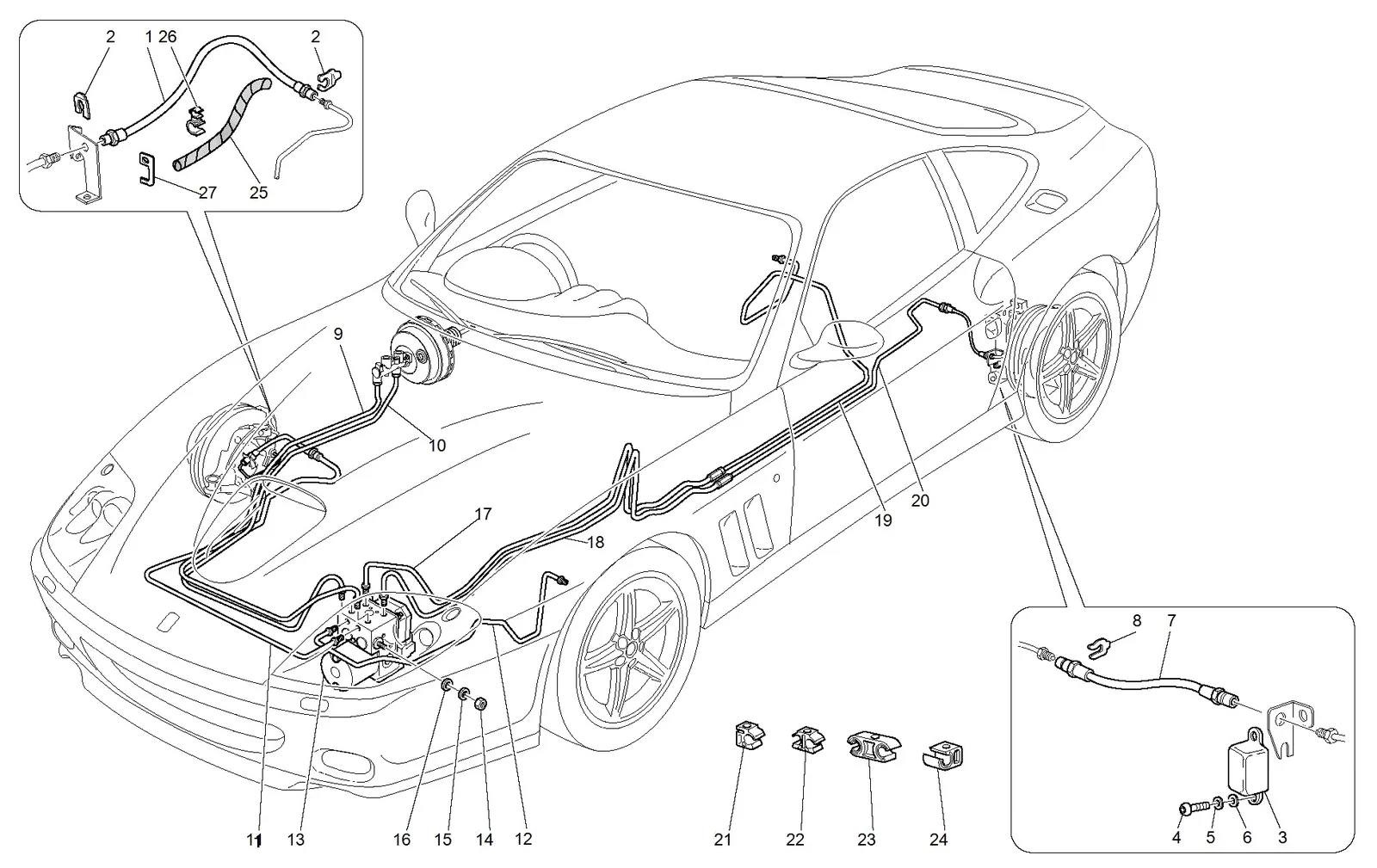

Exploded view of the brake system -valid for gd- on the Ferrari 575M Maranello, with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 575M Maranello Brake System -Valid For Gd- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1137313Ferrari Front Brake Hose - 137313$64.90In stock
2116374Ferrari/Maserati Clip - 116374$3.20In stock
3168148Ferrari Shield - 168148Price on requestContact us for price and availability
460909500Ferrari Allen Head Screw M6 x 15 - 60909500$3.68Available, ships in 3-6 days
5127494Ferrari Lock Washer - 127494$0.50In stock
610519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
614496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
7116373Ferrari Brake Hose - 977802SupersededOrder 977802 instead
7977802Ferrari Flexible Brake Hose L 330mm - 977802$81.11Available, ships in 3-6 days
9212534Ferrari Brake Pipe - 212534$63.61Special order, ships in 7-14 days
9188880Ferrari Brake Pipe - 188880SupersededOrder 212534 instead
10212532Ferrari Brake Pipe - 212532$51.37Special order, ships in 7-14 days
10188878Ferrari Brake Pipe - 188878SupersededOrder 212532 instead
11212523Ferrari RH Brake Pipe - 212523$29.34Special order, ships in 7-14 days
11182980Ferrari RH Brake Pipe - 182980SupersededOrder 212523 instead
12212524Ferrari LH Brake Pipe - 212524$58.73Special order, ships in 7-14 days
12182981Ferrari LH Brake Pipe - 182981SupersededOrder 212524 instead
13191996Ferrari Abs/Asr Hydraulic Control Unit - 191996Price on requestContact us for price and availability
1416100824Ferrari/Maserati Nut - 16100824$0.30In stock
1416100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
15127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1612638524Ferrari Flat Washer 8.15x15x1.5 - 12638524$0.12Available, ships in 3-6 days
17212533Ferrari Brake Pipe - 212533$97.88Special order, ships in 7-14 days
17188879Ferrari Brake Pipe - 188879Price on requestContact us for price and availability
18212535Ferrari Brake Pipe - 212535$88.09Special order, ships in 7-14 days
18188883Ferrari Brake Pipe - 188883SupersededOrder 212535 instead
19188884Ferrari Brake Pipe To RH Rear Hose - 188884SupersededOrder 212537 instead
19212536Ferrari Brake Pipe To RH Rear Hose - 212536$46.48Special order, ships in 7-14 days
20188885Ferrari Brake Pipe To LH Rear Hose - 188885SupersededOrder 212536 instead
20212537Ferrari Brake Pipe To LH Rear Hose - 212537$39.14Special order, ships in 7-14 days
21141505Ferrari Retaining Clip - 141505Price on requestContact us for price and availability
22143055Ferrari Plastic Fixing Clip - 143055$1.15Available, ships in 3-6 days
23169476Ferrari Pipe Clip - 169476SupersededOrder 212645 instead
24169477Ferrari Pipe Clip - 169477SupersededOrder 215411 instead
24215411Ferrari Pipe Clip - 215411$3.24Available, ships in 3-6 days
25204939Ferrari Pipe Protection - 204939$22.00Special order, ships in 7-14 days
26150738Ferrari Fixing Clip - 150738$1.04Available, ships in 3-6 days
27162606Ferrari Clip - 162606$2.82Available, ships in 3-6 days
271711Ferrari Front Flexible Tube 330mm - 271711SupersededOrder 977802 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
268658Ferrari Rubber Pipe - 268658$1,076.99Special order, ships in 7-14 days
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
