Ferrari Monza SP1 — [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD (diagram 0011)

Exploded view of the [engine] - b.08.01 - cylinder heads - rh head on the Ferrari Monza SP1, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

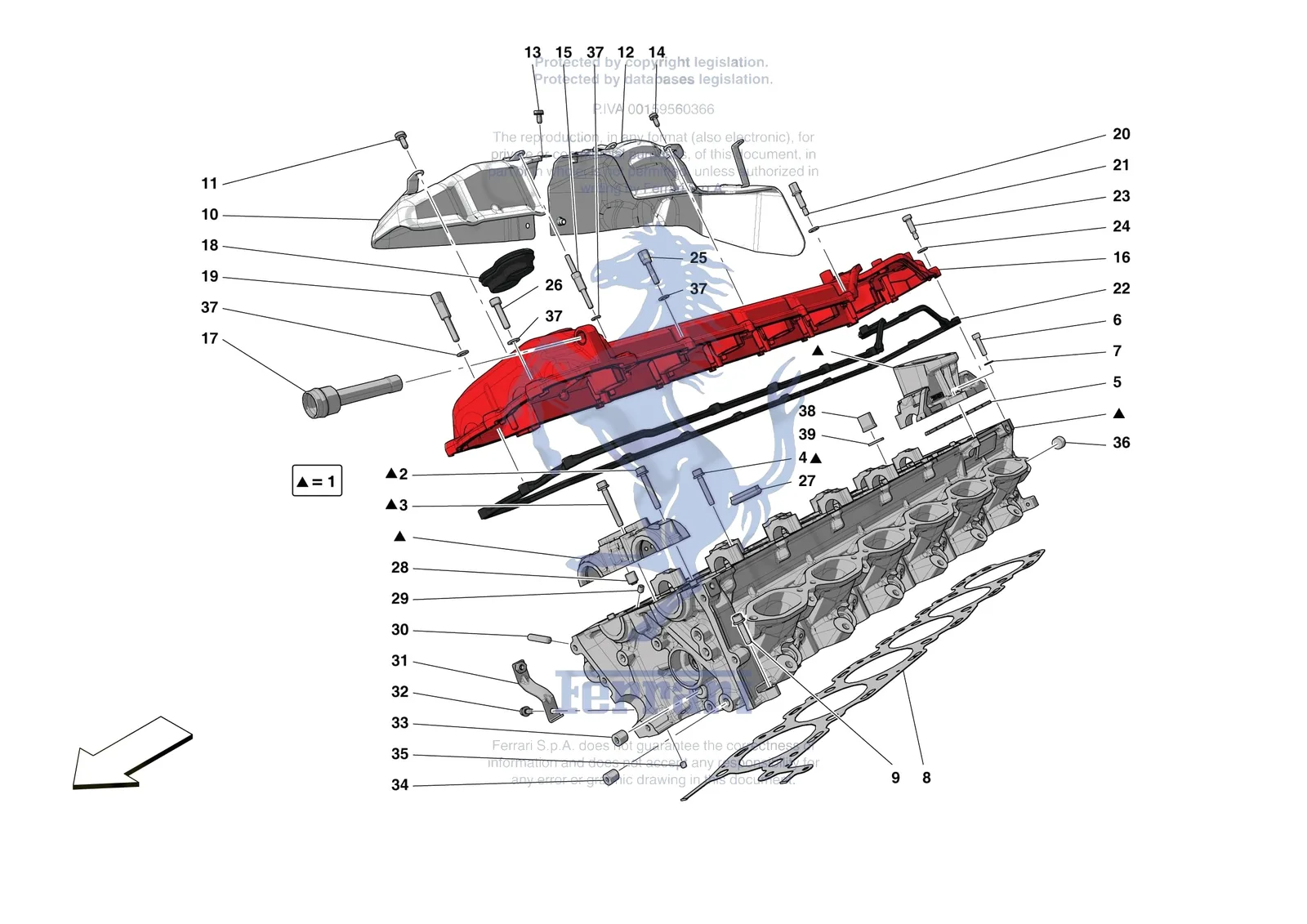

Ferrari Monza SP1 [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
322682Ferrari Calibrated Stud Bolt - 322682SupersededOrder 333779 instead
317786Ferrari RH Cylinder Head Cover - 317786$1,174.90Special order, ships in 7-14 days
243803Ferrari RH Head-Crankcase Gasket - 243803SupersededOrder 324013 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
194495Ferrari Threaded Plug - 194495SupersededOrder 282755 instead
282400Ferrari Threaded Plug 12x11 - 282400$7.59Special order, ships in 7-14 days
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1878821Ferrari Testa Cilindri Dx - 878821SupersededOrder 919200 instead
1919200Ferrari Testa Cilindri Dx - 919200$6,117.34Special order, ships in 7-14 days
2243720Ferrari Screw With Washer 6x40 - 243720$1.15Special order, ships in 7-14 days
3243721Ferrari Screw With Washer M6 x 45 TCEI - 243721$0.98Available, ships in 3-6 days
4243719Ferrari Screw With Washer M6 x 35 TCEI - 243719$1.05Available, ships in 3-6 days
5239614Ferrari Gasket - 239614$10.29Available, ships in 3-6 days
6239502Ferrari Screw 6x25 - 239502$1.17Available, ships in 3-6 days
711197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
8324013Ferrari RH Head-Crankcase Gasket - 324013$442.56Special order, ships in 7-14 days
9231620Ferrari/Maserati Screw - 231620$0.58In stock
10821253Ferrari Paratia Anticalore Testa Dx - 821253$368.79Special order, ships in 7-14 days
1111628424Ferrari Screw 6X14 - 11628424$1.28Special order, ships in 7-14 days
12821255Ferrari Paratia Anticalore Testa Dx - 821255$467.15Special order, ships in 7-14 days
1311625524Ferrari Screw - 11625524$1.53Special order, ships in 7-14 days
15269228Ferrari Stud Bolt - 269228$12.86Available, ships in 3-6 days
16815999Ferrari RH Cylinder Head Cover - 815999$1,819.49Special order, ships in 7-14 days
17317962Ferrari Connector M14 x 1.5 - 317962$46.69Special order, ships in 7-14 days
18229353Ferrari Solenoid Valve Gasket - 229353$24.42In stock
19208765Ferrari Stud Bolt - 208765$12.21Available, ships in 3-6 days
20333779Ferrari Calibrated Stud Bolt - 333779$27.03Special order, ships in 7-14 days
2114499401Ferrari Washer - 14499401$0.54Available, ships in 3-6 days
2114499424Ferrari Washer - 14499424SupersededOrder 14499401 instead
22243800Ferrari Valve Cover Gasket - Right - 243800$128.35In stock
22AW3440000Ferrari Valve Cover Gasket Set - AW3440000$244.90In stock
23293278Ferrari Screw - 293278$30.57Available, ships in 3-6 days
2411198074Ferrari/Maserati Washer - 11198074$0.14In stock
25214412Ferrari Stud Bolt - 214412$20.14Available, ships in 3-6 days
26157218Ferrari Bolt M6 x 25 - 157218$1.17Available, ships in 3-6 days
27223982Ferrari Spark Plug Tube Gasket - 223982$2.63In stock
28200458Ferrari/Maserati Non Return Valve - 200458$13.08In stock
29256827Ferrari Dowel - 256827$10.91Available, ships in 3-6 days
30211641Ferrari Exhaust Manifold Stud - 211641$2.00In stock
31866609Ferrari Heat Shield Mounting Bracket - 866609$39.31Special order, ships in 7-14 days
32231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
3310275501Ferrari Threaded Plug 12x11 - 10275501$1.92Special order, ships in 7-14 days
3414326001Ferrari Threaded Plug D 10x1.25 - 14326001SupersededOrder 282755 instead
34282755Ferrari Threaded Plug D 10x1.25 - 282755$4.35Available, ships in 3-6 days
35199760Ferrari Threaded Plug D 6x1 - 199760$0.57Available, ships in 3-6 days
36127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
38183524Ferrari Cylinder Head Nut - 183524$6.75Special order, ships in 7-14 days
39136270Ferrari Washer - 136270$8.12Available, ships in 3-6 days
