Ferrari Purosangue — [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD (diagram 0011)

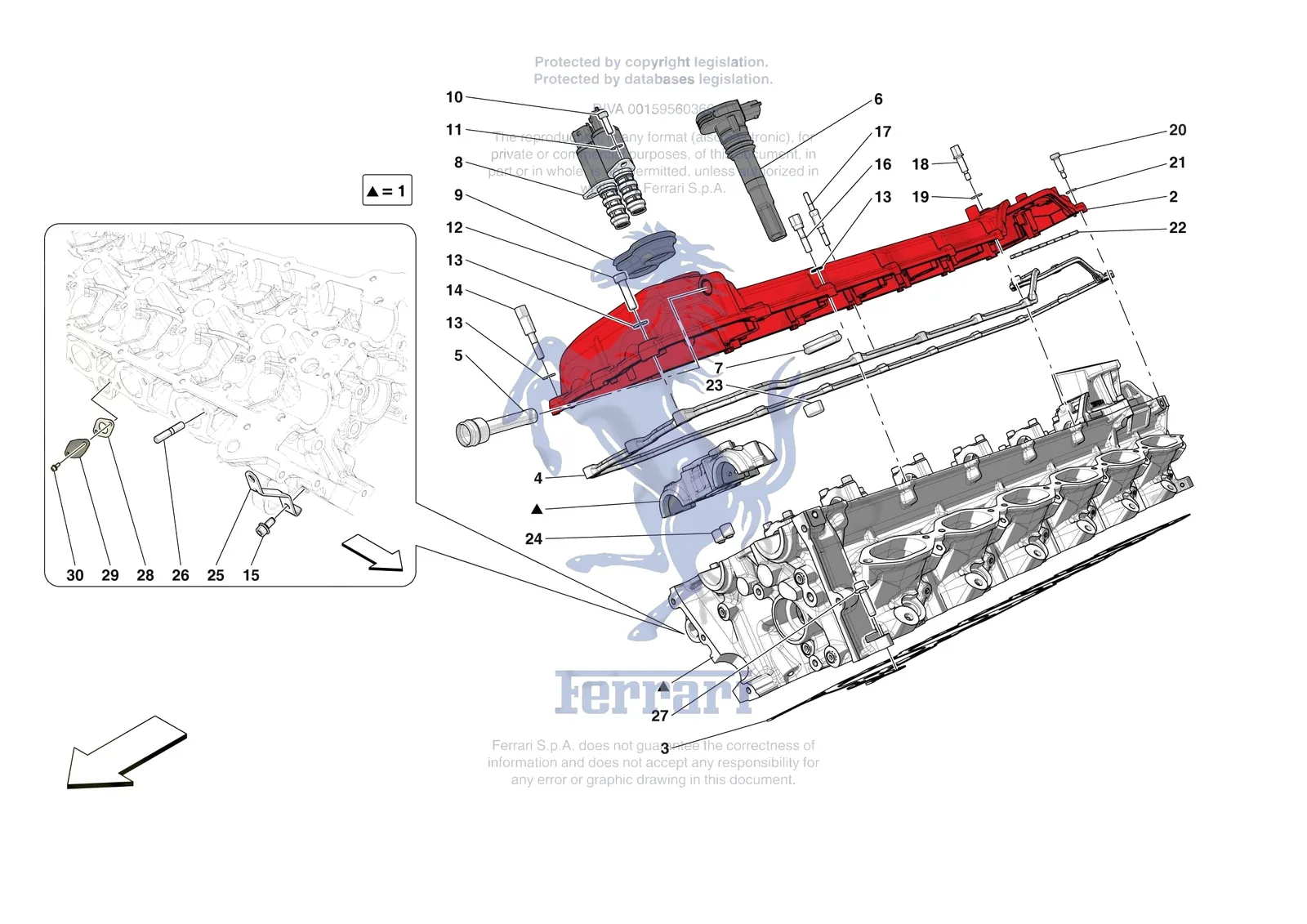

Exploded view of the [engine] - b.08.01 - cylinder heads - rh head on the Ferrari Purosangue, with 47 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0011.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 322682 | Ferrari Calibrated Stud Bolt - 322682 | Superseded | Order 333779 instead | |
| 248406 | Ferrari Ignition Coil - 248406 | Superseded | Order 772927 instead | |
| 290850 | Ferrari Ignition Coil - 290850 | Superseded | Order 772927 instead | |
| 337713 | Ferrari Ignition Coil - 337713 | Superseded | Order 772927 instead | |
| 255442 | Ferrari Oil Pressure Regulator Valve - 255442 | Superseded | Order 801187 instead | |
| 269227 | Ferrari Oil Pressure Regulator Valve - 269227 | Superseded | Order 801187 instead | |
| 296017 | Ferrari Oil Pressure Regulator Valve - 296017 | Superseded | Order 801187 instead | |
| 317786 | Ferrari RH Cylinder Head Cover - 317786 | $1,174.90 | Special order, ships in 7-14 days | |
| 243803 | Ferrari RH Head-Crankcase Gasket - 243803 | Superseded | Order 324013 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 231359 | Ferrari Single Ignition Coil - 231359 | Superseded | Order 772927 instead | |
| 183447 | Ferrari Threaded Plug - 183447 | $18.48 | Available, ships in 3-6 days | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 949234 | Ferrari RH Head Assembly - 949234 | $7,351.58 | Special order, ships in 7-14 days |
| 2 | 815999 | Ferrari RH Cylinder Head Cover - 815999 | $1,819.49 | Special order, ships in 7-14 days |
| 3 | 324013 | Ferrari RH Head-Crankcase Gasket - 324013 | $442.56 | Special order, ships in 7-14 days |
| 4 | 243800 | Ferrari Valve Cover Gasket - Right - 243800 | $128.35 | In stock |
| 4 | AW3440000 | Ferrari Valve Cover Gasket Set - AW3440000 | $244.90 | In stock |
| 5 | 317962 | Ferrari Connector M14 x 1.5 - 317962 | $46.69 | Special order, ships in 7-14 days |
| 6 | 772927 | Ferrari Ignition Coil - 772927 | $120.98 | In stock |
| 7 | 223982 | Ferrari Spark Plug Tube Gasket - 223982 | $2.63 | In stock |
| 8 | 801187 | Ferrari Oil Pressure Regulator Valve - 801187 | $368.79 | Available, ships in 3-6 days |
| 9 | 229353 | Ferrari Solenoid Valve Gasket - 229353 | $24.42 | In stock |
| 10 | 14304221 | Ferrari Screw 5X16 - 14304221 | $0.19 | Special order, ships in 7-14 days |
| 11 | 11181574 | Ferrari Washer - 11181574 | $0.06 | Available, ships in 3-6 days |
| 12 | 157218 | Ferrari Bolt M6 x 25 - 157218 | $1.17 | Available, ships in 3-6 days |
| 13 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 14 | 208765 | Ferrari Stud Bolt - 208765 | $12.21 | Available, ships in 3-6 days |
| 15 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 16 | 214412 | Ferrari Stud Bolt - 214412 | $20.14 | Available, ships in 3-6 days |
| 17 | 269228 | Ferrari Stud Bolt - 269228 | $12.86 | Available, ships in 3-6 days |
| 18 | 333779 | Ferrari Calibrated Stud Bolt - 333779 | $27.03 | Special order, ships in 7-14 days |
| 19 | 14499401 | Ferrari Washer - 14499401 | $0.54 | Available, ships in 3-6 days |
| 19 | 14499424 | Ferrari Washer - 14499424 | Superseded | Order 14499401 instead |
| 20 | 293278 | Ferrari Screw - 293278 | $30.57 | Available, ships in 3-6 days |
| 21 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 22 | 239614 | Ferrari Gasket - 239614 | $10.29 | Available, ships in 3-6 days |
| 23 | 127635 | Ferrari Threaded Plug M18 x 11 x 1.5 - 127635 | $6.75 | Available, ships in 3-6 days |
| 24 | 200458 | Ferrari/Maserati Non Return Valve - 200458 | $13.08 | In stock |
| 25 | 252099 | Ferrari Shield Mounting Bracket - 252099 | $29.52 | Special order, ships in 7-14 days |
| 26 | 211641 | Ferrari Exhaust Manifold Stud - 211641 | $2.00 | In stock |
| 27 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 28 | 202980 | Ferrari Gasket - 202980 | $4.89 | Available, ships in 3-6 days |
| 29 | 984306 | Ferrari Air Cap - 984306 | $36.86 | Special order, ships in 7-14 days |
| 30 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
