Ferrari Roma Spider — [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS (diagram 0110)

Exploded view of the [vehicle trim] - e.13.02 - roof - kinematics on the Ferrari Roma Spider, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

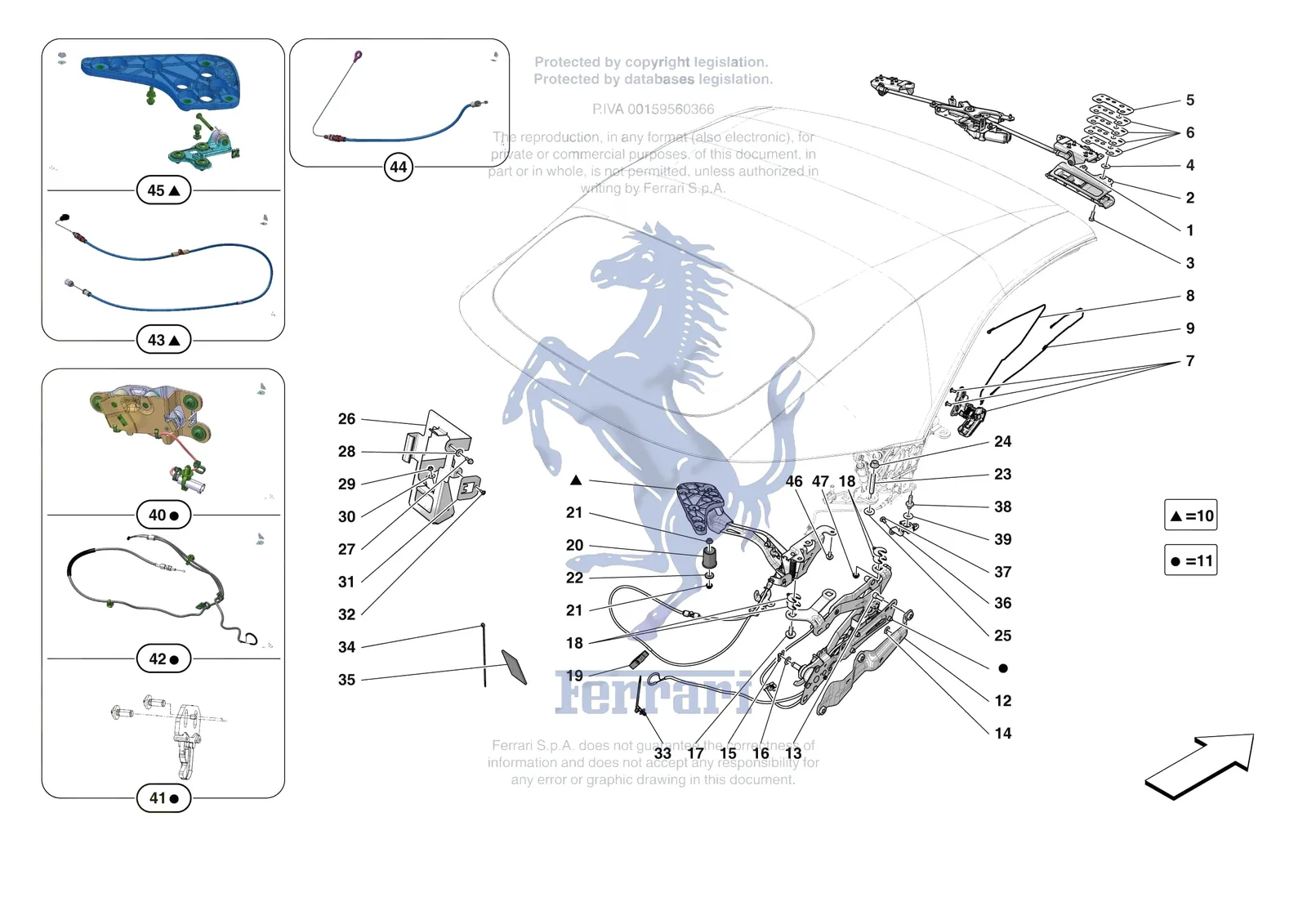

Ferrari Roma Spider [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
306631Ferrari Clip - 306631$7.59Special order, ships in 7-14 days
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
12647729Ferrari Washer 6.45-21X - 12647729$0.13Special order, ships in 7-14 days
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
2742413Ferrari Compl. LH Striker - 742413$418.56Special order, ships in 7-14 days
2742414Ferrari Compl. RH Striker - 742414$418.56Special order, ships in 7-14 days
316043674Ferrari Screw M8 x 25 - 16043674$2.82Special order, ships in 7-14 days
412642001Ferrari Washer - 12642001$0.27Available, ships in 3-6 days
5821513Ferrari Windscreen Striker Plate - 821513$34.44Special order, ships in 7-14 days
6821514Ferrari Adjuster Shim - 821514$22.87Special order, ships in 7-14 days
755005633Ferrari LH Hinge Kit - 55005633$147.72Special order, ships in 7-14 days
755005634Ferrari RH HINGE KIT - 55005634Price on requestContact us for price and availability
10742411Ferrari Compl. LH Flap - 742411$886.38Special order, ships in 7-14 days
10742412Ferrari Compl. RH Flap - 742412$886.38Special order, ships in 7-14 days
11742409Ferrari Kinematic Tonneau Cover Assy - 742409$2,802.26Special order, ships in 7-14 days
11742410Ferrari Kinematic Tonneau Cover Assy - 742410$2,968.77Special order, ships in 7-14 days
12821505Ferrari LH Plate - 821505$91.08Special order, ships in 7-14 days
12821504Ferrari RH Plate - 821504$91.08Special order, ships in 7-14 days
1314302824Ferrari Allen Screw 8x18 - 14302824$0.46Available, ships in 3-6 days
1410519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
15941123Ferrari Clip - 941123$3.91Special order, ships in 7-14 days
16806002Ferrari Washer - 806002$7.42Special order, ships in 7-14 days
1782271400Ferrari Screw with Washer M8 x 25 TE - 82271400$2.59Available, ships in 3-6 days
18821502Ferrari Self-Locking Shim - 821502$10.04Special order, ships in 7-14 days
18821503Ferrari Self-Locking Shim - 821503$10.04Special order, ships in 7-14 days
19249781Ferrari Clip - 249781$1.11Special order, ships in 7-14 days
20742415Ferrari Bumper - 742415$15.49Special order, ships in 7-14 days
2113046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
2212647727Ferrari Washer 6X21 - 12647727$0.12Special order, ships in 7-14 days
23264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
2414059421Ferrari Flanged Nut 10x1.25 - 14059421$0.92Available, ships in 3-6 days
2512646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
26894194Ferrari Fastener Bracket - 894194$199.41Special order, ships in 7-14 days
2716286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
2812646778Ferrari Washer - 12646778$0.89In stock
2914059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
3012643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
31810521Ferrari Plate With Screw Fasteners - 810521$13.01Special order, ships in 7-14 days
3285833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
33306756Ferrari Clip - 306756$1.59Special order, ships in 7-14 days
34145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
35179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
36821510Ferrari Compl. RH Centring Bracket - 821510$98.46Special order, ships in 7-14 days
37774707Ferrari Torx Screw M6X18 Ros.Imp. D.1 - 774707$5.65Special order, ships in 7-14 days
38821516Ferrari Pin - 821516$49.22Special order, ships in 7-14 days
3913578301Ferrari Washer - 13578301$0.17Special order, ships in 7-14 days
4055005652Ferrari LH Tonneau Cover Locking Kit - 55005652$960.25Special order, ships in 7-14 days
4055005653Ferrari RH Tonneau Cover Locking Kit - 55005653$763.27Special order, ships in 7-14 days
4155005654Ferrari Tonneau Cover Retention Kit - 55005654$295.43Special order, ships in 7-14 days
4255005655Ferrari LH Tonneau Cover Locking Cab - 55005655$209.26Special order, ships in 7-14 days
4255005656Ferrari RH Tonneau Cover Locking Cab - 55005656$209.26Special order, ships in 7-14 days
4355005657Ferrari Rear Flap Bowden Cable Kit - 55005657$201.88Special order, ships in 7-14 days
4455005658Ferrari Front Flap Bowden Cable Kit - 55005658$1,625.07Special order, ships in 7-14 days
4555005659Ferrari LH FLAP HINGE PLATE KIT - 55005659Price on requestContact us for price and availability
4555005660Ferrari RH FLAP HINGE PLATE KIT - 55005660Price on requestContact us for price and availability
46222767Ferrari Screw - 222767$1.97Special order, ships in 7-14 days
4713046229Ferrari NUT - 13046229Price on requestContact us for price and availability

All Roma Spider diagrams
