Ferrari SF90 Stradale — [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM (diagram 0172)

Exploded view of the [vehicle trim] - e.59 - external lateral trim on the Ferrari SF90 Stradale, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

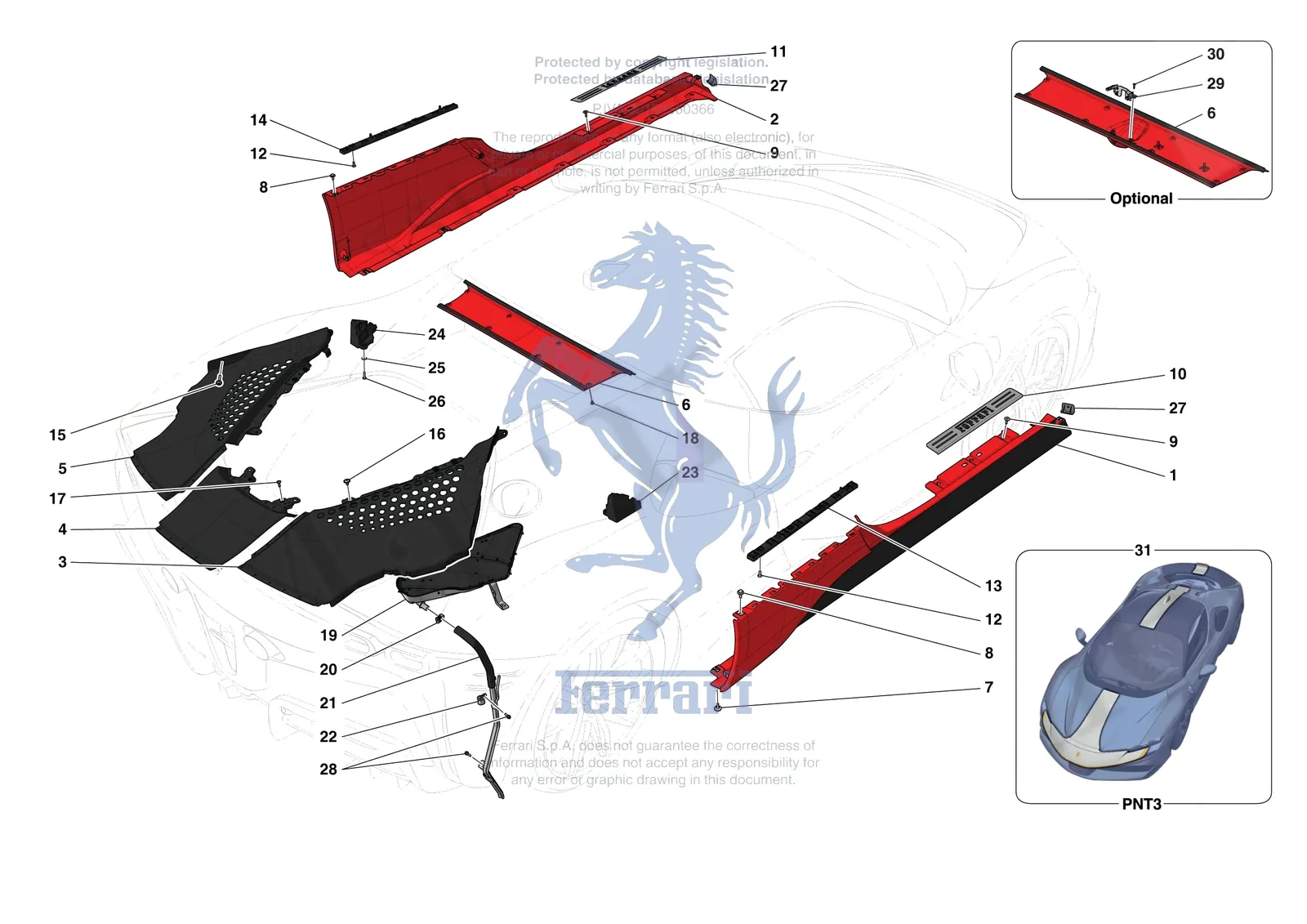

Ferrari SF90 Stradale [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
170006973Ferrari Compl. RH Underdoor Trim - 70006973$27,068.23Contact us to order
1985796555Ferrari Compl. RH Underdoor Trim - 985796555$18,462.62Contact us to order
1985867847Ferrari Rivest Sottoporta Dx Carb.Cp - 985867847SupersededOrder 985796555 instead
1985743866Ferrari Rivest. Sottoporta Dx. Semil - 985743866SupersededOrder 985747912 instead
1985747912Ferrari Rivest. Sottoporta Dx. Semil - 985747912$2,227.73Special order, ships in 7-14 days
270006974Ferrari Compl. LH Underdoor Trim - 70006974$19,561.94Contact us to order
2985796474Ferrari Compl. LH Underdoor Trim - 985796474$18,462.62Contact us to order
2985743865Ferrari Rivest. Sottoporta Sx. Semil - 985743865SupersededOrder 985747900 instead
2985747900Ferrari Rivest. Sottoporta Sx. Semil - 985747900$2,227.73Special order, ships in 7-14 days
2985867848Ferrari Rivest.Sottoporta Sx Carb.Cp - 985867848SupersededOrder 985796474 instead
3905110Ferrari Finiz. Paratia Post. Dx Opt - 905110$9,994.43Special order, ships in 7-14 days
370006975Ferrari RH REAR BULKHEAD TRIM - 70006975Price on requestContact us for price and availability
3934876Ferrari RH Rear Bulkhead Trim - 934876$2,921.86Special order, ships in 7-14 days
470006976Ferrari Centre Rear Bulkhead Trim - 70006976$17,560.99Contact us to order
4916310Ferrari Centre Rear Bulkhead Trim - 916310$1,674.30Special order, ships in 7-14 days
4909514Ferrari Fin.Paratia Post.Centr.Opt C - 909514$6,333.85Special order, ships in 7-14 days
5935703Ferrari Finiz Paratia Post Sx Opt Ca - 935703$8,800.80Special order, ships in 7-14 days
570006977Ferrari LH REAR BULKHEAD TRIM - 70006977Price on requestContact us for price and availability
5934875Ferrari LH Rear Bulkhead Trim - 934875$2,921.86Special order, ships in 7-14 days
6865343Ferrari Compl. Spoiler Cover - 865343$241.27Special order, ships in 7-14 days
6856519Ferrari Cover Spoier Base Cpl - 856519$103.38Special order, ships in 7-14 days
783442900Ferrari Body Screw - 83442900$1.51In stock
8907312Ferrari Hex Head Screw M6X18 with Washer - 907312$10.25Special order, ships in 7-14 days
881591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
980874200Ferrari Screw M6 x 22 - 80874200$1.59Available, ships in 3-6 days
10856557Ferrari Batticalcagno Esterno - 856557$320.06Special order, ships in 7-14 days
10867842Ferrari Batticalcagno Est Carbonio D - 867842$1,649.69Special order, ships in 7-14 days
10917277Ferrari Battitacco Esterno Dx Cpl Op - 917277$1,649.69Special order, ships in 7-14 days
1070007051Ferrari Compl. RH Outer Kickplate - 70007051$9,164.30Special order, ships in 7-14 days
1070007052Ferrari COMPL. RH OUTER KICKPLATE - 70007052Price on requestContact us for price and availability
11856555Ferrari Batticalcagno Esterno - 856555$320.06Special order, ships in 7-14 days
11867843Ferrari Batticalcagno Est Carbonio S - 867843$1,649.69Special order, ships in 7-14 days
11917276Ferrari Battitacco Esterno Sx Cpl Op - 917276$1,649.69Special order, ships in 7-14 days
1170007053Ferrari Compl. LH Outer Kickplate - 70007053$9,164.30Special order, ships in 7-14 days
1170007054Ferrari COMPL. LH OUTER KICKPLATE - 70007054Price on requestContact us for price and availability
1211625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
13856513Ferrari RH Sill Rear Fastener Bracket - 856513$34.44Special order, ships in 7-14 days
14856512Ferrari LH Sill Rear Fastener Bracket - 856512$34.44Special order, ships in 7-14 days
15898128Ferrari Vite M6X50 Con Roset.Imp.5.5 - 898128$17.67Special order, ships in 7-14 days
1682115900Ferrari Screw M6 x 14 With Washer - 82115900$1.23Available, ships in 3-6 days
16897540Ferrari Vite M6X14 Con Ros Imp 5.5X1 - 897540$13.97Special order, ships in 7-14 days
1785833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
1883750200Ferrari Screw M4x10 - 83750200$1.94Available, ships in 3-6 days
19918442Ferrari Vaschetta Drenaggio Carburan - 918442$689.41Special order, ships in 7-14 days
20161490Ferrari Hose Clip 12 - 20 x 9 - 161490$3.91Available, ships in 3-6 days
21933595Ferrari Compl. Fluid Drain Pipe - 933595$492.43Special order, ships in 7-14 days
2210441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
23871934Ferrari Assorbitore Intercooler Late - 871934$81.23Special order, ships in 7-14 days
24871933Ferrari Assorbitore Intercooler Late - 871933$81.23Special order, ships in 7-14 days
2513577724Ferrari Washer - 13577724$3.68Special order, ships in 7-14 days
2685834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
27743983Ferrari WheeLHouse Fastener Bracket - 743983$29.52Special order, ships in 7-14 days
28248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
29817197Ferrari Camera Fastener Bracket - 817197$206.81Special order, ships in 7-14 days
29922377Ferrari Camera Fastener Bracket - 922377$44.29Special order, ships in 7-14 days
3016082301Ferrari Screw - 16082301$1.49Available, ships in 3-6 days
3170007129Ferrari Livery Stripe Stencil - 70007129$2,766.35Special order, ships in 7-14 days
