Ferrari SF90 XX Spider — [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM (diagram 0172)

Exploded view of the [vehicle trim] - e.59 - external lateral trim on the Ferrari SF90 XX Spider, with 68 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

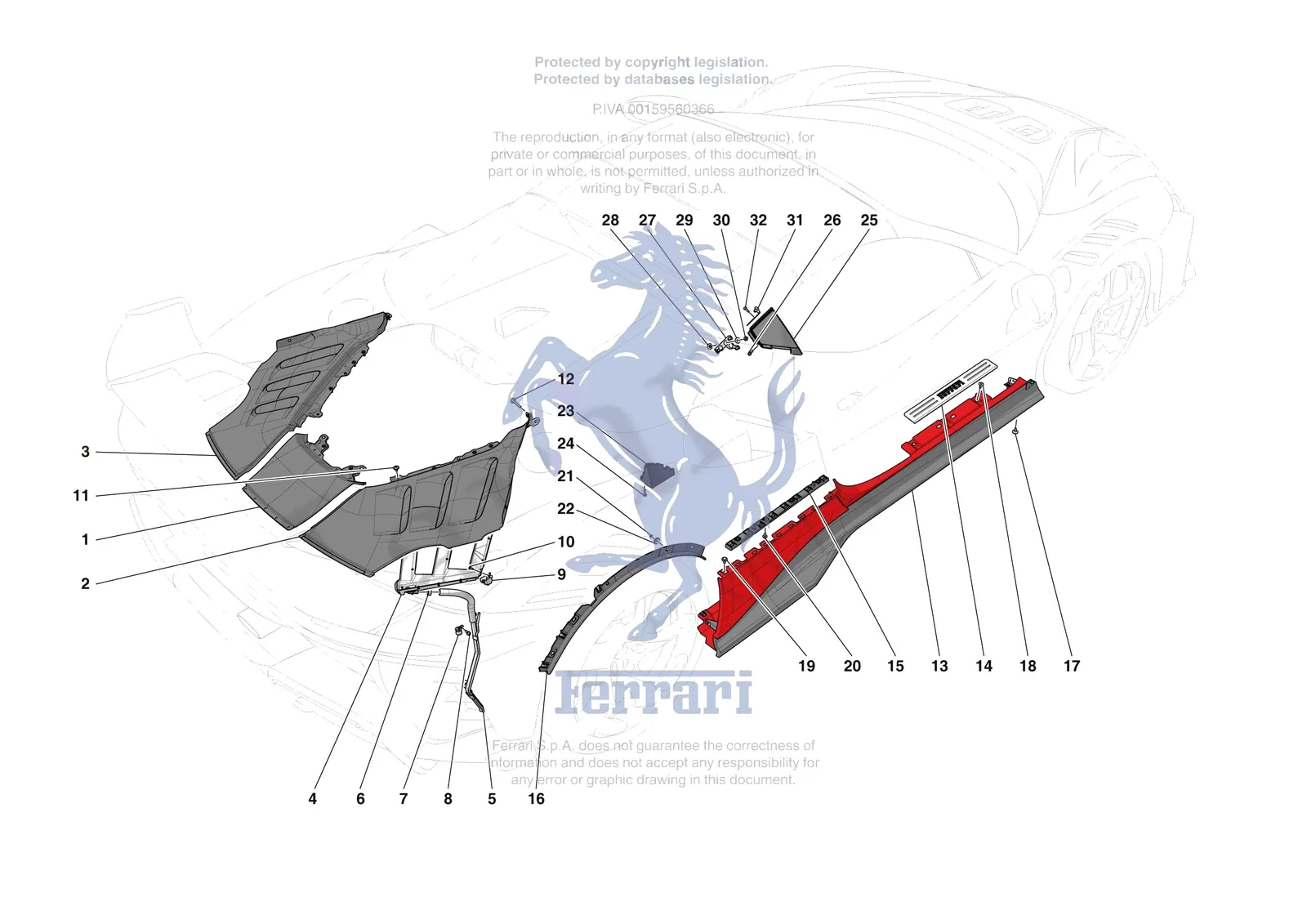

Ferrari SF90 XX Spider [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
170006976Ferrari Centre Rear Bulkhead Trim - 70006976$17,560.99Contact us to order
1916310Ferrari Centre Rear Bulkhead Trim - 916310$1,674.30Special order, ships in 7-14 days
1909514Ferrari Fin.Paratia Post.Centr.Opt C - 909514$6,333.85Special order, ships in 7-14 days
270008534Ferrari COMPL. RH REAR BULKHEAD TRIM - 70008534Price on requestContact us for price and availability
270008535Ferrari COMPL. RH REAR BULKHEAD TRIM - 70008535Price on requestContact us for price and availability
2778719Ferrari COMPL. RH REAR BULKHEAD TRIM - 778719Price on requestContact us for price and availability
2975501Ferrari COMPL. RH REAR BULKHEAD TRIM - 975501Price on requestContact us for price and availability
370008536Ferrari COMPL. LH REAR BULKHEAD TRIM - 70008536Price on requestContact us for price and availability
370008543Ferrari COMPL. LH REAR BULKHEAD TRIM - 70008543Price on requestContact us for price and availability
3778700Ferrari COMPL. LH REAR BULKHEAD TRIM - 778700Price on requestContact us for price and availability
3975498Ferrari COMPL. LH REAR BULKHEAD TRIM - 975498Price on requestContact us for price and availability
4950930Ferrari Fuel Drain Bowl - 950930$517.04Special order, ships in 7-14 days
5933595Ferrari Compl. Fluid Drain Pipe - 933595$492.43Special order, ships in 7-14 days
6161490Ferrari Hose Clip 12 - 20 x 9 - 161490$3.91Available, ships in 3-6 days
710441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
8248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
9750056Ferrari Compl. Rear Node Tray Bracke - 750056$49.22Special order, ships in 7-14 days
1085692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
11897540Ferrari Vite M6X14 Con Ros Imp 5.5X1 - 897540$13.97Special order, ships in 7-14 days
12898128Ferrari Vite M6X50 Con Roset.Imp.5.5 - 898128$17.67Special order, ships in 7-14 days
13985857534Ferrari Compl. LH Underdoor Trim - 985857534$30,070.74Contact us to order
13985876382Ferrari COMPL. LH UNDERDOOR TRIM - 985876382Price on requestContact us for price and availability
13995033Ferrari COMPL. LH UNDERDOOR TRIM - 995033Price on requestContact us for price and availability
13995034Ferrari COMPL. LH UNDERDOOR TRIM - 995034Price on requestContact us for price and availability
13985857535Ferrari Compl. RH Underdoor Trim - 985857535$30,070.74Contact us to order
13985876381Ferrari COMPL. RH UNDERDOOR TRIM - 985876381Price on requestContact us for price and availability
13995038Ferrari COMPL. RH UNDERDOOR TRIM - 995038Price on requestContact us for price and availability
13995039Ferrari COMPL. RH UNDERDOOR TRIM - 995039$64,487.33Contact us to order
14867842Ferrari Batticalcagno Est Carbonio D - 867842$1,649.69Special order, ships in 7-14 days
14867843Ferrari Batticalcagno Est Carbonio S - 867843$1,649.69Special order, ships in 7-14 days
14989175Ferrari COMPL. LH OUTER KICKPLATE - 989175$7,801.84Special order, ships in 7-14 days
14989176Ferrari COMPL. RH OUTER KICKPLATE - 989176$4,973.75Special order, ships in 7-14 days
15856512Ferrari LH Sill Rear Fastener Bracket - 856512$34.44Special order, ships in 7-14 days
15856513Ferrari RH Sill Rear Fastener Bracket - 856513$34.44Special order, ships in 7-14 days
16902185Ferrari Compl. LH Rear Wheel Flick - 902185$2,642.81Special order, ships in 7-14 days
16991696Ferrari COMPL. LH REAR WHEEL FLICK - 991696Price on requestContact us for price and availability
16902186Ferrari Compl. RH Rear Wheel Flick - 902186$2,642.81Special order, ships in 7-14 days
16991698Ferrari COMPL. RH REAR WHEEL FLICK - 991698Price on requestContact us for price and availability
1783442900Ferrari Body Screw - 83442900$1.51In stock
1880874200Ferrari Screw M6 x 22 - 80874200$1.59Available, ships in 3-6 days
19907312Ferrari Hex Head Screw M6X18 with Washer - 907312$10.25Special order, ships in 7-14 days
2011625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
21113647Ferrari Nyloc Nut - 113647$0.52Available, ships in 3-6 days
2212647778Ferrari Cup Washer - 12647778$0.82Available, ships in 3-6 days
23871933Ferrari Assorbitore Intercooler Late - 871933$81.23Special order, ships in 7-14 days
23871934Ferrari Assorbitore Intercooler Late - 871934$81.23Special order, ships in 7-14 days
2485834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
25904676Ferrari Compl. LH Rear Lateral Cosme - 904676$2,040.14Special order, ships in 7-14 days
25904674Ferrari Compl. RH Rear Lateral Cosme - 904674$2,040.14Special order, ships in 7-14 days
26256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
27918913Ferrari Piastra Regolazione Mostrina - 918913$49.22Special order, ships in 7-14 days
27918914Ferrari Piastra Regolazione Mostrina - 918914$49.22Special order, ships in 7-14 days
2883335900Ferrari Adjuster Bush - 83335900$43.68Special order, ships in 7-14 days
2912625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
3016102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
3016102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
31866556Ferrari Complete LH Door Seal Fastener Bracket - 866556$46.75Special order, ships in 7-14 days
31866542Ferrari Complete RH Door Seal Fastener Bracket - 866542$46.75Special order, ships in 7-14 days
3216285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days

All SF90 XX Spider diagrams
