Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Oil Sump - Gearbox And Differential (diagram 002)

Exploded view of the oil sump - gearbox and differential on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 131 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

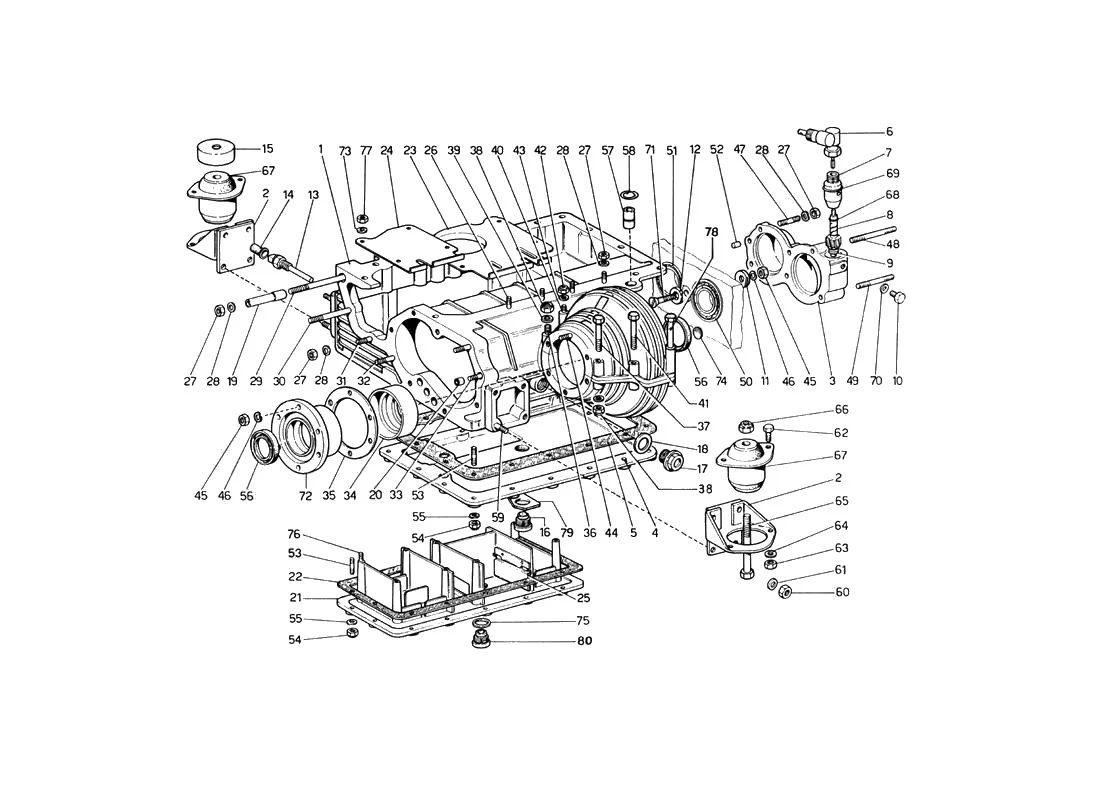

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Oil Sump - Gearbox And Differential exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1525186Ferrari Gearbox Assy - 525186Price on requestContact us to order
1524169Ferrari Gearbox Casing - 524169Price on requestContact us for price and availability
1524463Ferrari Gearbox Casing - 524463Price on requestContact us for price and availability
1524588Ferrari Gearbox Casing - 524588Price on requestContact us for price and availability
2523884Ferrari Engine Mount Bracket - 523884Price on requestContact us for price and availability
3105673Ferrari Rear Diff Housing - 105673$596.26Available, ships in 3-6 days
3523885Ferrari Rear Diff Housing - 523885$449.67Available, ships in 3-6 days
3524589Ferrari Rear Diff Housing - 524589Price on requestContact us for price and availability
4104194Ferrari Gearbox Sump Cover - 104194Price on requestContact us for price and availability
5147675Ferrari Gearbox Sump Gasket - 147675$23.38In stock
5104196Ferrari Sump Gasket - 104196SupersededOrder 147675 instead
6101353Ferrari Angle Drive - 101353$7,749.30Available, ships in 3-6 days
7523921Ferrari Drive Box - 523921$287.67Available, ships in 3-6 days
7104288Ferrari Drive Box - 104288$259.44Available, ships in 3-6 days
8523922Ferrari Speedo Drive Gear Ratio 8/15 - 523922$189.37Available, ships in 3-6 days
8524373Ferrari Speedo Drive Gear Ratio 8/15 - 524373$156.38Available, ships in 3-6 days
9101354Ferrari Location Peg - 101354$36.99Available, ships in 3-6 days
9105674Ferrari Thrust roller - 105674$11.77Available, ships in 3-6 days
10101349Ferrari Bolt - 101349$21.24Available, ships in 3-6 days
11104198Ferrari Washer - 104198$15.49Available, ships in 3-6 days
12104199Ferrari Spacer - 104199$10.83Available, ships in 3-6 days
13107576Oil Temperature Sender - Thermistor - 107576$148.80In stock
14524545Ferrari Connector Rubber Boot - 524545$9.16Available, ships in 3-6 days
15523127Ferrari Engine Mounting Protective Cover - 523127$46.35Available, ships in 3-6 days
16104280Ferrari/Maserati Drain Plug Magnetic - 104280$12.75In stock
16523977Ferrari Plug - 523977SupersededOrder 104280 instead
17104282Ferrari Fill Plug - 104282$111.38In stock
17524146Ferrari Drain Plug - 524146SupersededOrder 104282 instead
18102645Ferrari Copper Washer - 102645$3.03In stock
18104283Ferrari Washer - 104283SupersededOrder 102645 instead
19523978Ferrari Pin - 523978$75.54Special order, ships in 7-14 days
20102704Ferrari Dowel - 102704$6.10Available, ships in 3-6 days
21524122Ferrari Engine Sump Cover - 524122Price on requestContact us for price and availability
22147676Ferrari Lower Oil Pan Gasket - 147676$27.50In stock
22104197Ferrari Sump Pan Gasket - 104197SupersededOrder 147676 instead
23524229Ferrari Shield - 524229Price on requestContact us for price and availability
24524230Ferrari Gearbox Plate - 524230$69.57Available, ships in 3-6 days
259111457Ferrari Bearing - 9111457Price on requestContact us for price and availability
2613516920Ferrari Stud Short - 13516920$1.88Available, ships in 3-6 days
2716100824Ferrari/Maserati Nut - 16100824$0.30In stock
2716100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
2811198074Ferrari/Maserati Washer - 11198074$0.14In stock
2811198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
2995920426Ferrari Stud 8x100 P1 - 95920426Price on requestContact us for price and availability
3113517420Ferrari Stud - 13517420Price on requestContact us for price and availability
3213517220Ferrari Stud Long - 13517220Price on requestContact us for price and availability
3313517321Ferrari Threaded Stud - 13517321$36.72Available, ships in 3-6 days
3313517320Ferrari Stud Bolt - 13517320SupersededOrder 13517321 instead
34104295Ferrari Bush - 104295$205.56Special order, ships in 7-14 days
35106088Ferrari Spacer 2.4mm - 106088$32.53Available, ships in 3-6 days
35106086Ferrari Spacer 2.0mm - 106086SupersededOrder 106088 instead
35106087Ferrari Spacer 2.2mm - 106087SupersededOrder 106088 instead
35580887Ferrari Spacer 1.8mm - 580887SupersededOrder 106088 instead
35580888Ferrari Spacer 2.2mm - 580888$27.66Available, ships in 3-6 days
35580889Ferrari Spacer 2.4mm - 580889SupersededOrder 106088 instead
3613450420Ferrari Stud - 13450420$5.25Available, ships in 3-6 days
3715972021Ferrari Bolt - 15972021$40.86Available, ships in 3-6 days
3812574511Ferrari Nyloc Nut M10 x 1.25 x 12 - 12574511$1.74Available, ships in 3-6 days
3812574521Ferrari Nyloc Nut - 12574521$1.74Available, ships in 3-6 days
3912601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
3912601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
4013544221Ferrari Stud - 13544221$5.12Available, ships in 3-6 days
4013517820Ferrari Stud Bolt - 13517820SupersededOrder 13544221 instead
4111102521Ferrari Bolt - 11102521Price on requestContact us for price and availability
42104030Ferrari/Maserati Nut - 104030$0.88In stock
4216104111Ferrari Nut - 16104111SupersededOrder 104030 instead
43103180Ferrari Wavy Washer - 103180$0.06Available, ships in 3-6 days
4312601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
4495920408Ferrari Stud 8X22 P5 - 95920408Price on requestContact us for price and availability
46127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
4610516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
4913517621Ferrari Stud Bolt - 13517621$21.12Available, ships in 3-6 days
4913517620Ferrari Stud - 13517620$28.25Available, ships in 3-6 days
5095890505Ferrari Centre Bearing - 95890505$1,659.95Available, ships in 3-6 days
5195893020Ferrari Roller Bearing - 95893020$862.75Available, ships in 3-6 days
524146563Ferrari Dowel Bolt - 4146563SupersededOrder 102704 instead
5313541121Ferrari Stud 6x12mm - 13541121SupersededOrder 13541124 instead
5395920109Ferrari Stud 6X20 P1 - 95920109Price on requestContact us for price and availability
5415896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
5511197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
5511197771Ferrari Washer - 11197771SupersededOrder 11197774 instead
56125078Ferrari Differential Oil Seal - 125078$19.64In stock
5695850316Ferrari Oil Seal - 95850316SupersededOrder 125078 instead
57103838Ferrari Dowel Peg - 103838$4.14Available, ships in 3-6 days
58103839Ferrari Circlip - 103839$11.16Available, ships in 3-6 days
5913449520Ferrari Stud - 13449520$16.14Available, ships in 3-6 days
6012164711Ferrari Nut M10 x 1.25 x 8 - 12164711$0.50Available, ships in 3-6 days
6110516870Ferrari Spring Washer - 10516870Price on requestContact us for price and availability
6215970621Ferrari Bolt - 15970621Price on requestContact us for price and availability
6515541821Ferrari Bolt - 15541821$29.52Available, ships in 3-6 days
65100798Ferrari Bolt - 100798SupersededOrder 15541821 instead
66148020Ferrari Nut - 148020$7.65In stock
6616105121Ferrari Nyloc Nut - 16105121SupersededOrder 148020 instead
67524524Ferrari 246 Motor Mount - 524524$72.05In stock
68104103Ferrari Speedometer Sending Unit Housing Seal - 104103$9.35In stock
6895860003Ferrari O-Ring - 95860003$5.63Available, ships in 3-6 days
6995860045Ferrari O-Ring - 95860045$2.43Available, ships in 3-6 days
7195940234Ferrari Screw - 95940234Price on requestContact us for price and availability
72104294Ferrari Support - 104294Price on requestContact us for price and availability
7311195470Ferrari 5mm Wavy Washer - 11195470$0.21Available, ships in 3-6 days
7410158801Ferrari Core Plug Te20 - 10158801$2.82Available, ships in 3-6 days
7510263460Ferrari/Maserati Copper Washer - 10263460$1.93In stock
7695920002Ferrari Stud 5x10 P1 - 95920002Price on requestContact us for price and availability
7795900718Ferrari Nut - 95900718Price on requestContact us for price and availability
78104189Ferrari Bolt - 104189$69.62Available, ships in 3-6 days
79524500Ferrari Bracket - 524500Price on requestContact us for price and availability
8010275001Ferrari Plug - 10275001SupersededOrder 10275011 instead
8010275040Ferrari Plug - 10275040$8.05Available, ships in 3-6 days
8010275011/AFerrari Drain Plug M22 x 1.5 - 10275011/A$7.99Available, ships in 3-6 days
524541Ferrari Angle Drive - 524541SupersededOrder 101353 instead
15970624Ferrari Bolt - 15970624Price on requestContact us for price and availability
95198Ferrari Bolt - 95198SupersededOrder 15541821 instead
100589Ferrari Circlip - 100589Price on requestContact us for price and availability
520161Ferrari Copper Washer - 520161SupersededOrder 102645 instead
10275011Ferrari Crankcase/Gearbox Drain Plug and Gasket - 10275011$15.15In stock
115353Ferrari Gearbox Flat Sump Cover - 115353Price on requestContact us for price and availability
108491Ferrari Gearbox Sump Cover - 108491Price on requestContact us for price and availability
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
16505121Ferrari Nut - 16505121SupersededOrder 148020 instead
10305140Ferrari Plug - 10305140SupersededOrder 10275011 instead
10305171Ferrari Plug - 10305171SupersededOrder 10275011 instead
94858Ferrari Plug - 94858Price on requestContact us for price and availability
106085Ferrari Spacer 1.8mm - 106085SupersededOrder 106088 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
13517421Ferrari Stud - 13517421$50.75Special order, ships in 7-14 days
13544224Ferrari Stud - 13544224SupersededOrder 13544221 instead
13541124Ferrari Stud 6x12 Stem 20 - 13541124$43.68Available, ships in 3-6 days
13517224Ferrari Stud Long - 13517224Price on requestContact us for price and availability
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
