Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Engine Ignition (diagram 036)

Exploded view of the engine ignition on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 78 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

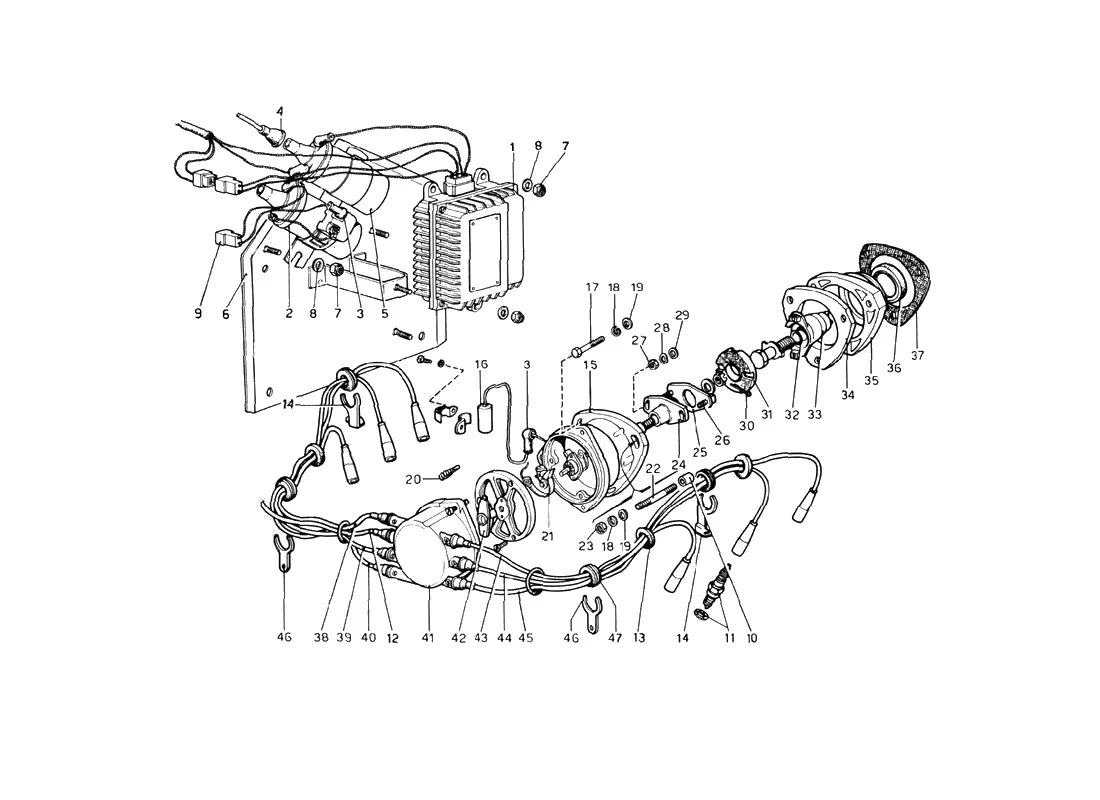

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Engine Ignition exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
129315Ferrari Dinoplex - 29315Price on requestContact us for price and availability
2109584Ferrari Ignition Coil-109584$395.00In stock
2BK2AMarelli Ignition Coil - BK2A$104.45In stock
2100262Ferrari Ignition Coil - 100262Price on requestSpecial order, ships in 7-14 days
2400913Ferrari Coil Cable - 400913Price on requestContact us for price and availability
328919Ferrari Coil Cover Small - 28919$5.44Available, ships in 3-6 days
412056986Ferrari Coil Cover - 12056986$2.05Available, ships in 3-6 days
412056980Ferrari Rubber Cap - 12056980SupersededOrder 12056986 instead
5100591Ferrari Coil - 100591Price on requestContact us for price and availability
529334Ferrari Coil - 29334Price on requestContact us for price and availability
6401461Ferrari Plate - 401461$185.71Available, ships in 3-6 days
7100436Ferrari Water Pump Nut - 100436$6.44In stock
812643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
894703Ferrari Washer - 94703SupersededOrder 12643701 instead
9401531Ferrari Cable - 401531$15.37Available, ships in 3-6 days
9401828Ferrari Connector - 401828Price on requestContact us for price and availability
10102704Ferrari Dowel - 102704$6.10Available, ships in 3-6 days
104146563Ferrari Dowel Bolt - 4146563SupersededOrder 102704 instead
11100604Ferrari Spark Plug - 100604$7.42In stock
1195300052Ferrari Spark Plug N60Y - 95300052Price on requestContact us for price and availability
1395860010Ferrari O-Ring - 95860010$1.36Available, ships in 3-6 days
134125542Ferrari Rubber Lead Ring - 4125542$1.36Available, ships in 3-6 days
144160513Ferrari Ht Lead Support - 4160513Price on requestContact us for price and availability
15350275Ferrari 246Gt/S Distributor - 350275$3,207.49Available, ships in 3-6 days
1695300072Ferrari Condenser - 95300072$34.65In stock
1716044224Ferrari Screw M8 x 50mm TE - 16044224$0.79Available, ships in 3-6 days
1716044221Ferrari Screw - 16044221SupersededOrder 16044224 instead
1811198077Ferrari Washer - 11198077Price on requestSpecial order, ships in 7-14 days
1910519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
1910519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
2195300083/4Ferrari Ignition Points Set - 95300083/4$89.85In stock
2195300083Ferrari Ignition Contact Points Short Lead - 95300083$160.29Available, ships in 3-6 days
2195300084Ferrari Ignition Contact Points Long Lead - 95300084$160.29Available, ships in 3-6 days
2213544021Ferrari Stud - 13544021SupersededOrder 13544024 instead
2316100824Ferrari/Maserati Nut - 16100824$0.30In stock
2316100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
244146865Ferrari Joint - 4146865$337.93Available, ships in 3-6 days
254146868Ferrari Flange - 4146868$267.13Available, ships in 3-6 days
2611500021Ferrari Stud - 11500021Price on requestContact us for price and availability
2715896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
2811197777Ferrari Wavy Washer D. 6.4 - 12 x 1.2 - 11197777$0.26Available, ships in 3-6 days
2910730101Ferrari Washer - 10730101Price on requestContact us for price and availability
3010734401Ferrari Spit Pin - 10734401Price on requestContact us for price and availability
314146867Ferrari 246 GT/S Distributor Fibre Drive - 4146867$132.33Special order, ships in 7-14 days
324146870Ferrari O-Ring - 4146870$4.22Available, ships in 3-6 days
334146869Ferrari Drive Flange - 4146869$532.95Available, ships in 3-6 days
34103816Ferrari Distributor Spacer - 103816$183.02Available, ships in 3-6 days
3529328Ferrari Dist Support - 29328Price on requestContact us for price and availability
35103813Ferrari Support Complete - 103813$268.52Special order, ships in 7-14 days
3640000210Ferrari 246 Distributor Oil Seal-40000210$23.82In stock
37AW3365BBFerrari 512 BB/BBi Cam Cover Gasket Set - AW3365000BB$96.80In stock
37147642Ferrari Distributor Base Gasket - 147642$6.16In stock
37103815Ferrari Gasket - 103815SupersededOrder 147642 instead
384174685Ferrari Cable 700mm - 4174685$211.64Available, ships in 3-6 days
384182972/KFerrari 246GT/S HT Lead Set Red Complete - 4182972/K$210.39Available, ships in 3-6 days
394174684Ferrari Cable 600mm - 4174684$211.64Available, ships in 3-6 days
404174683Ferrari Cable 510mm - 4174683$211.64Available, ships in 3-6 days
4195300041Ferrari 206/246 Distributor Cap-95300041$206.80In stock
4295300289Ferrari Rotor Arm - 95300289$108.37Available, ships in 3-6 days
434174688Ferrari Cable 780mm - 4174688$211.64Available, ships in 3-6 days
444174686Ferrari Cable 580mm - 4174686$211.64Available, ships in 3-6 days
454174687Ferrari Cable 660mm - 4174687$211.64Available, ships in 3-6 days
454257534Ferrari Complete Ht Lead Set - 4257534Price on requestContact us for price and availability
4593300301Ferrari HT Lead Set - 93300301Price on requestContact us for price and availability
4595300301Ferrari HT Lead Set - 95300301Price on requestContact us for price and availability
464160514Ferrari HT Lead Support - 4160514Price on requestContact us for price and availability
4710396480Ferrari Cable Grommet - 10396480$3.99Available, ships in 3-6 days
4182973Ferrari 246GT/S HT Lead Set Red Bank 4-6 - 4182973$211.64Available, ships in 3-6 days
103516Ferrari Cable Grommet - 103516SupersededOrder 10396480 instead
29313Ferrari Coil - 29313Price on requestContact us for price and availability
4146861Ferrari Dist Plate - 4146861Price on requestContact us for price and availability
4146866Ferrari Flange - 4146866$61.77Available, ships in 3-6 days
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
11500024Ferrari Short Stud - 11500024$0.54Available, ships in 3-6 days
13544024Ferrari Stud 8x16 Stem 50 - 13544024$1.36Available, ships in 3-6 days
4146862Ferrari Support - 4146862Price on requestContact us for price and availability
93798Ferrari Washer - 93798SupersededOrder 10519624 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
