Ferrari 456 GT/GTA — Rear Bumper And Movable Spoiler -Not For 456 Gta- (diagram 106)

Exploded view of the rear bumper and movable spoiler -not for 456 gta- on the Ferrari 456 GT/GTA, with 87 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

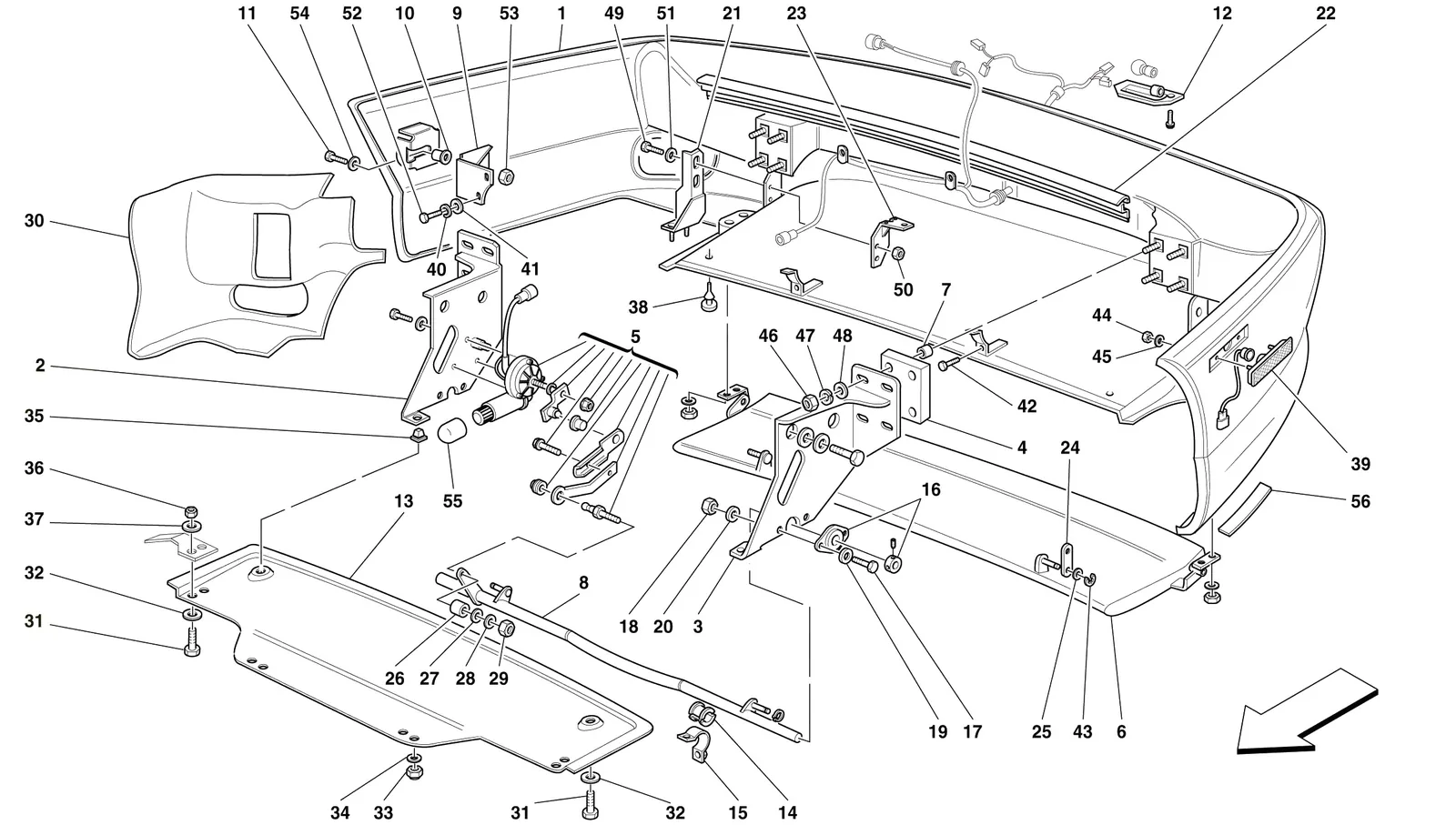

Ferrari 456 GT/GTA Rear Bumper And Movable Spoiler -Not For 456 Gta- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
164297210Ferrari Complete Rear Bumper - 64297210Price on requestContact us to order
164061710Ferrari Rear Bumper - 64061710Price on requestContact us to order
164181510Ferrari Complete Rear Bumper - 64181510SupersededOrder 64181500 instead
164078310Ferrari Rear Bumper - 64078310$6,450.44Contact us to order
164509210Ferrari Complete Rear Bumper - 64509210$8,634.78Contact us to order
164831310Ferrari Rear Bumper - 64831310$8,634.78Contact us to order
263738300Ferrari RH Rear Bumper Bracket - 63738300$277.68Available, ships in 3-6 days
363738400Ferrari Lh Rear Bumper Bracket - 63738400$277.68Available, ships in 3-6 days
463214100Ferrari Bumper Pad - 63214100$75.86Special order, ships in 7-14 days
5153094Ferrari LH Motor For Head Lamp - 153094Price on requestContact us for price and availability
663737200Ferrari Rear Stabilizer - 63737200$2,331.20Special order, ships in 7-14 days
763739200Ferrari Tube Spacer - 63739200$16.29Special order, ships in 7-14 days
863738100Ferrari Bar For Rear Spoiler - 63738100$587.44Special order, ships in 7-14 days
963739600Ferrari RH Rear Bumper Bracket - 63739600$22.25Available, ships in 3-6 days
963739700Ferrari LH Rear Bumper Bracket - 63739700$22.25Special order, ships in 7-14 days
1063739300Ferrari Spacer For Bracket - 63739300$4.33Available, ships in 3-6 days
1162794500Ferrari Screw - 62794500Price on requestContact us for price and availability
12146446Ferrari Number Plate Lamp - 146446SupersededOrder 186180 instead
1363774600Ferrari Rear Lower Panel - 63774600$440.56Special order, ships in 7-14 days
1463857700Ferrari Bush - 63857700$41.59Special order, ships in 7-14 days
1563857500Ferrari Bracket - 63857500Price on requestContact us for price and availability
1663738000Ferrari Support With Flange Complete - 63738000$145.74Special order, ships in 7-14 days
1764231800Ferrari Screw - 64231800Price on requestContact us for price and availability
1816102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
1816102324Ferrari Nut - 16102324SupersededOrder 16102314 instead
1910519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
2010571779Ferrari Washer - 10571779$0.12Special order, ships in 7-14 days
2164059900Ferrari RH Rear Support Bracket - 64059900$391.61Special order, ships in 7-14 days
2164060000Ferrari LH Rear Support Bracket - 64060000Price on requestContact us for price and availability
2263883800Ferrari Gasket Complete - 63883800SupersededOrder 65469000 instead
2363870600Ferrari RH Bracket - 63870600$31.80Special order, ships in 7-14 days
2363870700Ferrari LH Bracket - 63870700$31.80Special order, ships in 7-14 days
2463737800Ferrari Plate - 63737800Price on requestContact us for price and availability
2563741000Ferrari Bush - 63741000Price on requestContact us for price and availability
2663186100Ferrari Spacer - 63186100$2.36Available, ships in 3-6 days
2712608574Ferrari Washer - 12608574$0.38Special order, ships in 7-14 days
2812642024Ferrari Washer - 12642024SupersededOrder 12642021 instead
2812642021Ferrari Washer - 12642021$1.30Available, ships in 3-6 days
2916100824Ferrari/Maserati Nut - 16100824$0.30In stock
2916100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
3064831100Ferrari Heat Shield Set - 64831100$2,098.07Special order, ships in 7-14 days
3064831200Ferrari Heat Shield Set - 64831200SupersededOrder 64831100 instead
3115690375Ferrari Screw - 15690375Price on requestContact us for price and availability
3212643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
3314058311Ferrari Flanged Nut M5 x 5 - 14058311$0.46Available, ships in 3-6 days
3514202782Ferrari Block - 14202782Price on requestContact us for price and availability
3862794800Ferrari Rubber Pad - 62794800Price on requestContact us for price and availability
39140594Ferrari Rear Side - Marker - 140594$67.43Available, ships in 3-6 days
40127494Ferrari Lock Washer - 127494$0.50In stock
4112640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
4264231400Ferrari Screw - 64231400$1.28Special order, ships in 7-14 days
4311087776Ferrari Circlip - 11087776$0.13Available, ships in 3-6 days
44169180Ferrari Nyloc Nut M5 x 6.3 - 169180$0.31Available, ships in 3-6 days
4412574111Ferrari Nyloc Nut - 12574111SupersededOrder 169180 instead
4512638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
4512638101Ferrari Washer White - 12638101SupersededOrder 12638124 instead
4612164721Ferrari Nut - 12164721SupersededOrder 133988 instead
46133988Ferrari Plain Nut M10 x 1.25 x 8 - 133988$0.38Available, ships in 3-6 days
47127497Ferrari Spring Washer 10mm - 127497$0.69In stock
4812626224Ferrari Washer - 12626224$0.38Available, ships in 3-6 days
4916043021Ferrari Screw M8 x 12 - 16043021$0.34Available, ships in 3-6 days
5016100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
5112642777Ferrari Washer - 12642777$0.71Available, ships in 3-6 days
5112649751Ferrari Washer - 12649751SupersededOrder 12642777 instead
5210902224Ferrari Screw M6 x 16 - 10902224$0.12Available, ships in 3-6 days
5412648504Ferrari Washer - 12648504$0.54Available, ships in 3-6 days
5564064700Ferrari Motor Boot - 64064700$31.80Special order, ships in 7-14 days
5664498600Ferrari LH Rear Wheel Arch Protection Tape - 64498600$12.86Available, ships in 3-6 days
5664498700Ferrari RH Rear Wheel Arch Protection Tape - 64498700$12.86Available, ships in 3-6 days
65469000Ferrari Bumper Trim - 65469000$45.67Special order, ships in 7-14 days
174159Ferrari LH Motor For Head Lamp - 174159Price on requestContact us for price and availability
109388Ferrari Number Plate Lamp - 109388SupersededOrder 186180 instead
175204Ferrari Number Plate Lamp - 175204SupersededOrder 186180 instead
60044906Ferrari Number Plate Lamp - 60044906SupersededOrder 186180 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
12574121Ferrari Nyloc Nut White - 12574121SupersededOrder 169180 instead
64181500Ferrari Rear Bumper Assy Usa - 64181500$5,333.79Special order, ships in 7-14 days
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead

All 456 GT/GTA diagrams
