Ferrari 512 BB (Carburetor) — Cylinder Head (Right) (diagram 003)

Exploded view of the cylinder head (right) on the Ferrari 512 BB (Carburetor), with 105 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

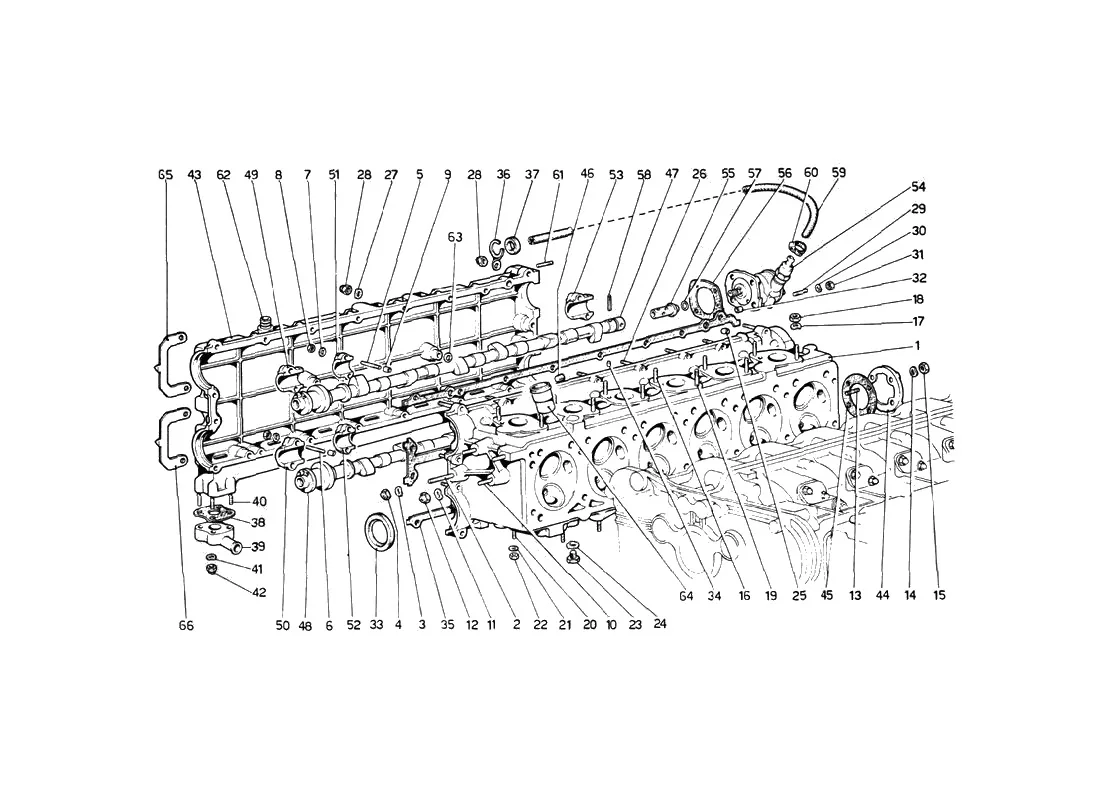

Ferrari 512 BB (Carburetor) Cylinder Head (Right) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1108330Ferrari RH Cylinder Head - 108330Price on requestContact us for price and availability
1108590Ferrari RH Cylinder Head Complete - 108590Price on requestContact us for price and availability
213518121Ferrari Stud - 13518121Price on requestContact us for price and availability
312601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
312601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
4101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
5102754Ferrari Stud - 102754$9.74Available, ships in 3-6 days
711197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
711197773Ferrari Washer - 11197773SupersededOrder 11197774 instead
815896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
9102725Ferrari/Maserati Dowel - 102725$2.79In stock
1013516824Ferrari/Maserati Stud - 13516824$0.58In stock
1013516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead
1311500321Ferrari Stud - 11500321Price on requestContact us for price and availability
1412601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1412601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
15102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
1613517021Ferrari Threaded Stud 8x12 Stem 25mm - 13517021$5.61Available, ships in 3-6 days
1711198074Ferrari/Maserati Washer - 11198074$0.14In stock
1711198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
1816100824Ferrari/Maserati Nut - 16100824$0.30In stock
1816100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
1913517321Ferrari Threaded Stud - 13517321$36.72Available, ships in 3-6 days
21127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
2110516673Ferrari Washer - 10516673SupersededOrder 127496 instead
22114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
22105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
2310300740Ferrari Drain Plug - 10300740$39.58Special order, ships in 7-14 days
2410257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
2613541324Ferrari Stud - 13541324$2.08In stock
2613541321Ferrari Stud 6x12mm - 13541321SupersededOrder 13541324 instead
28100044Ferrari Cam Cover Nut - 10pack - 100044$9.85In stock
2911500524Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524$0.73Available, ships in 3-6 days
2911500521Ferrari Stud - 11500521SupersededOrder 11500524 instead
3011197771Ferrari Washer - 11197771SupersededOrder 11197774 instead
33AW1322000Ferrari 308 GTBi/GTSi Cam Seal Kit - AW1322000$162.80In stock
33163987Ferrari Camshaft Seal - 163987$35.68In stock
33AW1320000Ferrari 308 GT4/GTB/GTS Cam Seal Kit - AW1320000$174.90In stock
33105389Ferrari Sealing Ring - 105389SupersededOrder 163987 instead
34100185Ferrari Dowel - 100185$22.36Available, ships in 3-6 days
35AW3365BBFerrari 512 BB/BBi Cam Cover Gasket Set - AW3365000BB$96.80In stock
35AW3512000BBFerrari 512BB Cam Cover Gasket Kit - AW3512000BB$192.50In stock
35AW3512000BBiFerrari 512BBi Cam Cover Gasket Kit - AW3512000BBi$231.00In stock
35147696Ferrari 365 BB/512 BB/BBi Cam Cover Gasket Right - 147696$49.50In stock
35106435Ferrari Cam Cover Gasket - 106435SupersededOrder 147696 instead
36105900Ferrari Bracket - 105900$17.59Special order, ships in 7-14 days
3710396580Ferrari Rubber Grommet - 10396580$10.11In stock
37100286Ferrari Gaiter - 100286SupersededOrder 10396580 instead
38148860Ferrari Oil Drain Plug Gasket-148860$2.75In stock
38102607Ferrari Gasket - 102607SupersededOrder 148860 instead
39104483Ferrari Breather Union - 104483$169.62Available, ships in 3-6 days
4011501021Ferrari Stud M6 x 9 Stem 35 - 11501021$0.96Special order, ships in 7-14 days
43106554Ferrari RH Cylinder Head Cover Complete - 106554Price on requestContact us for price and availability
43104656Ferrari Cover - 104656Price on requestContact us for price and availability
44103796Ferrari End Plate Cover - 103796$652.75Available, ships in 3-6 days
45AW3348000Ferrari 348 Mondial T Cam Cover Gasket Kit - AW3348000$163.90In stock
45150075Ferrari End Cover Gasket - 150075$11.09In stock
45104694Ferrari End Plate Gasket - 104694SupersededOrder 150075 instead
4610269750Ferrari Plug-10269750$3.99In stock
47108621Ferrari RH Inlet Camshaft Complete - 108621$2,414.87Available, ships in 3-6 days
47108625Ferrari RH Inlet Camshaft - 108625SupersededOrder 108621 instead
48108622Ferrari RH Exhaust Camshaft Complete - 108622$2,414.87Available, ships in 3-6 days
48108626Ferrari RH Exhaust Camshaft - 108626SupersededOrder 108622 instead
49102538Ferrari Cam Cap - 102538Price on requestContact us for price and availability
50102539Ferrari Cam Cap - 102539Price on requestContact us for price and availability
51102540Ferrari Cam Cap - 102540Price on requestContact us for price and availability
52102541Ferrari Cam Cap Not Available - 102541Price on requestContact us for price and availability
53102654Ferrari Cam Cap Exhaust Camshaft - 102654Price on requestContact us for price and availability
53102655Ferrari Cam Cap - 102655$28.86Special order, ships in 7-14 days
54102609Ferrari Vacuum Pump Servo - 102609Price on requestContact us for price and availability
55102795Ferrari Plug - 102795$105.01Special order, ships in 7-14 days
56147633Ferrari End Plate Gasket - 147633$7.28Available, ships in 3-6 days
56102796Ferrari End Plate Gasket - 102796$7.28Available, ships in 3-6 days
57105661Ferrari O-Ring - 105661$1.85In stock
58100279Ferrari Pin - 100279$31.05Available, ships in 3-6 days
59105862Ferrari Pipe - 105862Price on requestContact us for price and availability
60100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
6013000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
62102705Ferrari Union - 102705Price on requestContact us for price and availability
63144252Ferrari 365/512/F40 "Dot" Gasket - 144252$0.60In stock
63106437Ferrari Gasket - 106437SupersededOrder 144252 instead
64108332Ferrari Sleeve - 108332Price on requestContact us for price and availability
65109543Ferrari Timing Marker Plate - 109543$16.10Available, ships in 3-6 days
66109544Ferrari Timing Marker Plate - 109544Price on requestContact us for price and availability
100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
29264Ferrari Gaiter - 29264SupersededOrder 10396580 instead
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
95304Ferrari Nut - 95304SupersededOrder 114748 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
92610Ferrari Pin - 92610SupersededOrder 100279 instead
136526Ferrari Sealing Ring - 136526SupersededOrder 163987 instead
116883Ferrari Servo Pipe - 116883Price on requestContact us for price and availability
13543321Ferrari Short Stud - 13543321SupersededOrder 13543324 instead
11500324Ferrari Stud - 11500324Price on requestContact us for price and availability
11501024Ferrari Stud - 11501024SupersededOrder 11501021 instead
13517020Ferrari Stud - 13517020Price on requestContact us for price and availability
103372Ferrari Washer - 103372SupersededOrder 12601279 instead

All 512 BB (Carburetor) diagrams
