Ferrari 512 BB (Carburetor) — Alternator, Starter And Battery (diagram 037)

Exploded view of the alternator, starter and battery on the Ferrari 512 BB (Carburetor), with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

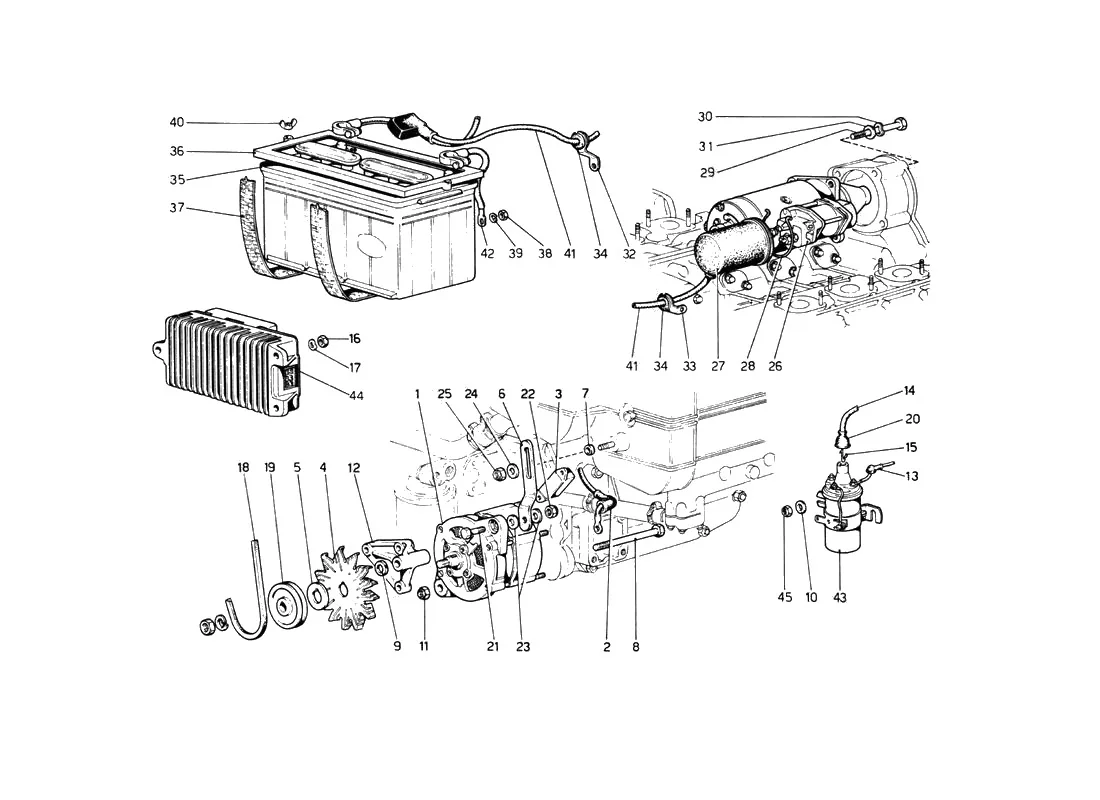

Ferrari 512 BB (Carburetor) Alternator, Starter And Battery exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1110073Ferrari Alternator - 110073$548.90In stock
1110073CFerrari Alternator Back Cover - 110073C$16.50In stock
2107003Ferrari Connector Rubber Boot - 107003$40.40Available, ships in 3-6 days
2107003/AFerrari Connector Rubber Boot - 107003/A$40.17Available, ships in 3-6 days
3107396Ferrari Regulator Std 13.8V - 107396Price on requestContact us for price and availability
4110111Ferrari Fan - 110111$44.49Special order, ships in 7-14 days
5106543Ferrari Washer - 106543Price on requestContact us for price and availability
6106760Ferrari Adjustment Bracket - 106760Price on requestContact us for price and availability
7106759Ferrari Spacer - 106759Price on requestContact us for price and availability
815541821Ferrari Bolt - 15541821$29.52Available, ships in 3-6 days
9106426Ferrari Washer - 106426$3.09Available, ships in 3-6 days
1012646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
11102825Ferrari Locking Suspension Nut - 102825$1.10In stock
1116105011Ferrari Nyloc Nut - 16105011$1.74Available, ships in 3-6 days
12106762Ferrari Support - 106762$304.29Available, ships in 3-6 days
13100285Ferrari Cap - 100285SupersededOrder 10405385 instead
14110908Ferrari Cable - 110908Price on requestContact us for price and availability
1615896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
1712601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1712601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
18102918Ferrari Alternator Belt - 102918$43.89In stock
19106758Ferrari Pulley - 106758$213.50Available, ships in 3-6 days
2012056986Ferrari Coil Cover - 12056986$2.05Available, ships in 3-6 days
20103006Ferrari Coil Cover - 103006Price on requestSpecial order, ships in 7-14 days
2012056286Ferrari Coil Cover - 12056286Price on requestSpecial order, ships in 7-14 days
2115970921Ferrari Bolt M10 x 1.25 x 35 - 15970921$0.71Available, ships in 3-6 days
22102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
2212575611Ferrari Nut - 12575611SupersededOrder 102742 instead
2312646801Ferrari Washer - 12646801$2.61Available, ships in 3-6 days
26102914Ferrari Starter Motor - 102914Price on requestContact us for price and availability
27113990Ferrari Starter Motor Rubber Cover - 113990$61.63In stock
27106287Ferrari Cap - 106287SupersededOrder 113990 instead
28106288Ferrari Clip - 106288$10.04Special order, ships in 7-14 days
29104189Ferrari Bolt - 104189$69.62Available, ships in 3-6 days
3011198074Ferrari/Maserati Washer - 11198074$0.14In stock
3011198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
3110519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
3110519621Ferrari Washer - 10519621SupersededOrder 10519624 instead
32105902Ferrari Bracket - 105902Price on requestContact us for price and availability
33100289Ferrari LH HT Lead Bracket - 100289Price on requestContact us for price and availability
3410396580Ferrari Rubber Grommet - 10396580$10.11In stock
34100286Ferrari Gaiter - 100286SupersededOrder 10396580 instead
35105686Ferrari Battery Dry - 105686Price on requestContact us for price and availability
36105692Ferrari Battery Clamp Frame - 105692$1,651.78Special order, ships in 7-14 days
37105694Ferrari Battery Strap - 105694Price on requestContact us for price and availability
3816100824Ferrari/Maserati Nut - 16100824$0.30In stock
3816100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
39127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
3910516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
4010101140Ferrari 5mm Battery Carrier Wing Nut - 10101140$3.26Available, ships in 3-6 days
41105816Ferrari Battery Cable - 105816Price on requestContact us for price and availability
42107329Ferrari Cable - 107329Price on requestContact us for price and availability
43105452Ferrari Ignition Coil - 105452$461.32Available, ships in 3-6 days
43105452/AFerrari Ignition Coil - 105452/A$547.17Available, ships in 3-6 days
44105453Ferrari Dinoplex Ignition Unit - 105453Price on requestContact us for price and availability
45104030Ferrari/Maserati Nut - 104030$0.88In stock
4516104111Ferrari Nut - 16104111SupersededOrder 104030 instead
50116805Ferrari Battery Cable - 50116805Price on requestContact us for price and availability
100798Ferrari Bolt - 100798SupersededOrder 15541821 instead
95198Ferrari Bolt - 95198SupersededOrder 15541821 instead
29298Ferrari Bracket - 29298Price on requestContact us for price and availability
28918Ferrari Coil Cover - 28918Price on requestContact us for price and availability
29238Ferrari Coil Cover - 29238Price on requestContact us for price and availability
113857Ferrari Dry Battery - 113857Price on requestContact us for price and availability
106544Ferrari Fan - 106544Price on requestContact us for price and availability
29264Ferrari Gaiter - 29264SupersededOrder 10396580 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
163534Ferrari Nyloc Nut - 163534Price on requestContact us for price and availability
10405385Ferrari Terminal Rubber Cover (Small) - 10405385$5.44Available, ships in 3-6 days
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
106229Ferrari Washer - 106229SupersededOrder 12646801 instead
83220900Ferrari Washer - 83220900SupersededOrder 12646801 instead

All 512 BB (Carburetor) diagrams
