Ferrari 512 BB (Carburetor) — Rear Bonnet (diagram 107)

Exploded view of the rear bonnet on the Ferrari 512 BB (Carburetor), with 99 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

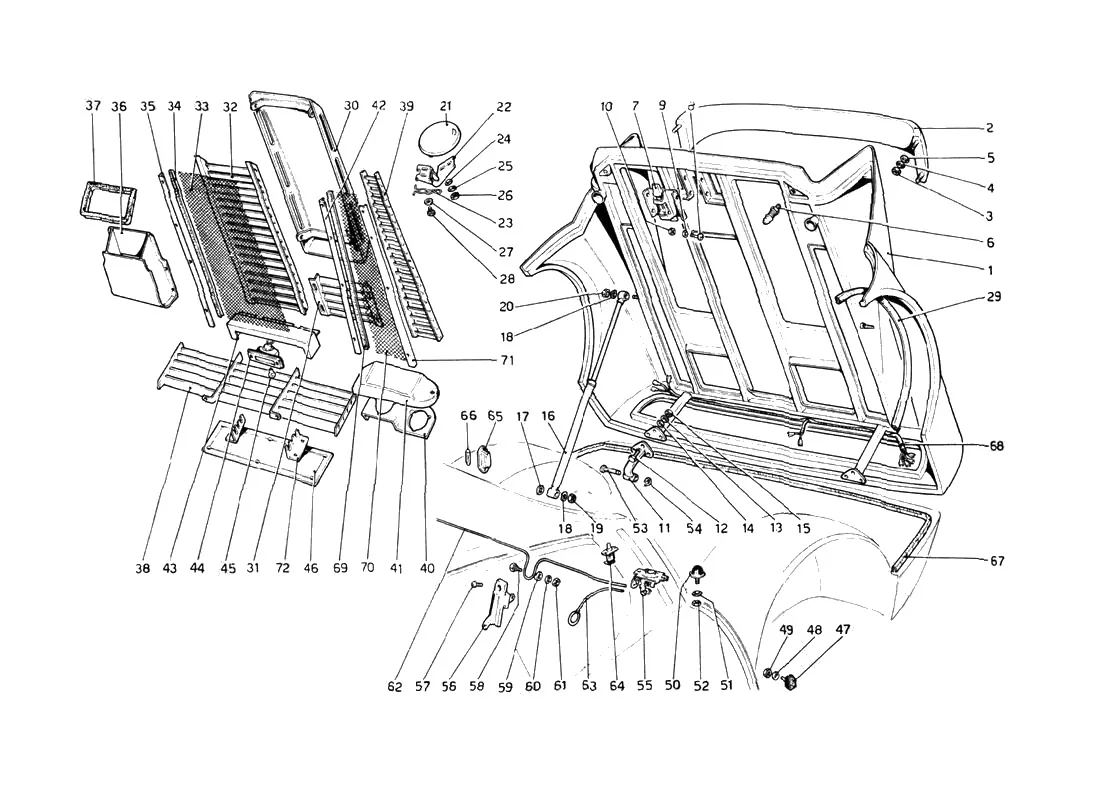

Ferrari 512 BB (Carburetor) Rear Bonnet exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
150350305Ferrari Rear Panel - 50350305Price on requestContact us for price and availability
250048701Ferrari Spoiler - 50048701Price on requestContact us for price and availability
250131705Ferrari Spoiler - 50131705$815.92Available, ships in 3-6 days
250131705/DFerrari Spoiler - 50131705/D$815.92Available, ships in 3-6 days
316100824Ferrari/Maserati Nut - 16100824$0.30In stock
316100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
410615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
412601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
512642001Ferrari Washer - 12642001$0.27Available, ships in 3-6 days
650035708Ferrari Striker Pin - 50035708Price on requestContact us for price and availability
750150408Ferrari Engine Cover Catch - 50150408Price on requestContact us for price and availability
820148201Ferrari Screw - 20148201Price on requestContact us for price and availability
9149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
910615370Ferrari Washer - 10615370SupersededOrder 149951 instead
1015896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
1015896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
1150024801Ferrari Boot Cover Hinge - 50024801Price on requestContact us for price and availability
1216043211Ferrari Bolt - 16043211$0.50Available, ships in 3-6 days
1310519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
1310519621Ferrari Washer - 10519621SupersededOrder 10519624 instead
14127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1410516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
1650014604/AFerrari Front/Rear Lid Lift Support Strut - 50014604/A$443.86In stock
1730166201Ferrari Washer - 30166201Price on requestContact us for price and availability
1820149100Ferrari Bonnet Strut Washer - 20149100Price on requestContact us for price and availability
20104030Ferrari/Maserati Nut - 104030$0.88In stock
2016104111Ferrari Nut - 16104111SupersededOrder 104030 instead
2150085604Ferrari Cap - 50085604$160.31Available, ships in 3-6 days
2250085505Ferrari Hinge - 50085505Price on requestContact us for price and availability
2350043405Ferrari Spring - 50043405$2.53Available, ships in 3-6 days
2410519200Ferrari Washer - 10519200Price on requestContact us for price and availability
2510615270Ferrari Washer - 10615270SupersededOrder 10615274 instead
2510615274Ferrari Washer - 10615274$0.19Available, ships in 3-6 days
2610794011Ferrari Nut M4 x 0.7mm - 10794011$0.06Available, ships in 3-6 days
2810977526Ferrari Washer - 10977526Price on requestContact us for price and availability
2950091206Ferrari Rubber Gasket - 50091206Price on requestContact us for price and availability
3050301001Ferrari Vent Cover - 50301001Price on requestContact us for price and availability
3150006600Ferrari RH Grille - 50006600$1,314.83Available, ships in 3-6 days
3150006709Ferrari LH Grille - 50006709$1,548.23Available, ships in 3-6 days
3250308402Ferrari Grille - 50308402$1,396.41Available, ships in 3-6 days
3350308501Ferrari Mesh - 50308501Price on requestContact us for price and availability
3450308600Ferrari Gasket - 50308600Price on requestContact us for price and availability
3550308709Ferrari Channel - 50308709$25.59Available, ships in 3-6 days
3650150309Ferrari LH Air Duct - 50150309$453.92Available, ships in 3-6 days
3650150200Ferrari RH Air Duct - 50150200$453.92Available, ships in 3-6 days
3750150002Ferrari Gasket - 50150002Price on requestContact us for price and availability
3850310408Ferrari Rear Grille - 50310408Price on requestContact us for price and availability
3950308808Ferrari RH Rear Grille - 50308808$957.80Available, ships in 3-6 days
3950308907Ferrari LH Rear Grille - 50308907Price on requestContact us for price and availability
4050307305Ferrari RH Rear Lamp Bracket - 50307305$744.05Available, ships in 3-6 days
4050307404Ferrari LH Rear Lamp Bracket - 50307404$744.05Available, ships in 3-6 days
4150331800Ferrari RH Protection Cover - 50331800$434.37Available, ships in 3-6 days
4150331909Ferrari LH Protection Cover - 50331909$409.51Available, ships in 3-6 days
4250341908Ferrari RH Strip - 50341908$161.34Available, ships in 3-6 days
4250342005Ferrari LH Strip - 50342005Price on requestContact us for price and availability
4350332006Ferrari Plate - 50332006Price on requestContact us for price and availability
4450020700Ferrari No Plate Lamp - 50020700$120.35Available, ships in 3-6 days
4520083002Ferrari Bulb 12V-5W - 20083002SupersededOrder 14145990 instead
4650330802Ferrari Protection Cover - 50330802Price on requestContact us for price and availability
4750042803Ferrari Rubber Stop - 50042803Price on requestContact us for price and availability
4812642801Ferrari Washer - 12642801$0.19Available, ships in 3-6 days
5050051606Ferrari Stop - 50051606$20.30Special order, ships in 7-14 days
5350025105Ferrari Hinge Pin - 50025105$42.45Available, ships in 3-6 days
5411065675Ferrari Circlip - 11065675SupersededOrder 11065676 instead
5411065676Ferrari Circlip - 11065676$0.08Available, ships in 3-6 days
5540068108Ferrari Bonnet Catch - 40068108Price on requestContact us for price and availability
5650036508HFerrari Trunk Lid Release Handle - 50036508H$152.90In stock
5630195903Ferrari Boot Pull Assy - 30195903$810.98Available, ships in 3-6 days
5713274006Ferrari Screw - 13274006Price on requestContact us for price and availability
5850093509Ferrari Bolt - 50093509Price on requestContact us for price and availability
5950093400Ferrari Bushing - 50093400$5.00Available, ships in 3-6 days
6011196270Ferrari Washer - 11196270Price on requestContact us for price and availability
6250037308Ferrari Engine Lid Cable - 50037308$63.17Available, ships in 3-6 days
6350036904Ferrari Emergency Cable - 50036904Price on requestContact us for price and availability
6420069605Ferrari 246Gt/S Door Interior Light Switch - 20069605$139.97Available, ships in 3-6 days
64242-80-832-00Ferrari Door Light Switch - 242-80-832-00$137.30Available, ships in 3-6 days
6550018803Ferrari Boot Light - 50018803$513.03Special order, ships in 7-14 days
6620083101Ferrari Festoon Bulb - 20083101Price on requestContact us for price and availability
6750156207Ferrari Gasket - 50156207$27.79Available, ships in 3-6 days
67MC3478/3Ferrari Large Titanfast Bonnet Beading Black Per Metre - MC3478/3$27.79Available, ships in 3-6 days
6850150606Ferrari Cable - 50150606Price on requestContact us for price and availability
6950318906Ferrari Gasket - 50318906Price on requestContact us for price and availability
7050319201Ferrari Grille Net - 50319201Price on requestContact us for price and availability
7150319003Ferrari RH Strip - 50319003$118.55Available, ships in 3-6 days
7150319102Ferrari LH Strip - 50319102$128.65Available, ships in 3-6 days
7250331206Ferrari RH Bracket - 50331206$131.50Special order, ships in 7-14 days
7250331305Ferrari LH Bracket - 50331305$47.51Available, ships in 3-6 days
40197808Ferrari Bonnet Catch - 40197808Price on requestContact us for price and availability
101524Ferrari Bulb 12v 5w - 101524Price on requestContact us for price and availability
14145990Ferrari Bulb 12V 5W - 14145990$5.44Special order, ships in 7-14 days
20178000Ferrari Bulb 12V-5W - 20178000SupersededOrder 14145990 instead
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
61499500Ferrari Pad - 61499500SupersededOrder 50051606 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
1301662Ferrari Washer - 1301662Price on requestContact us for price and availability

All 512 BB (Carburetor) diagrams
